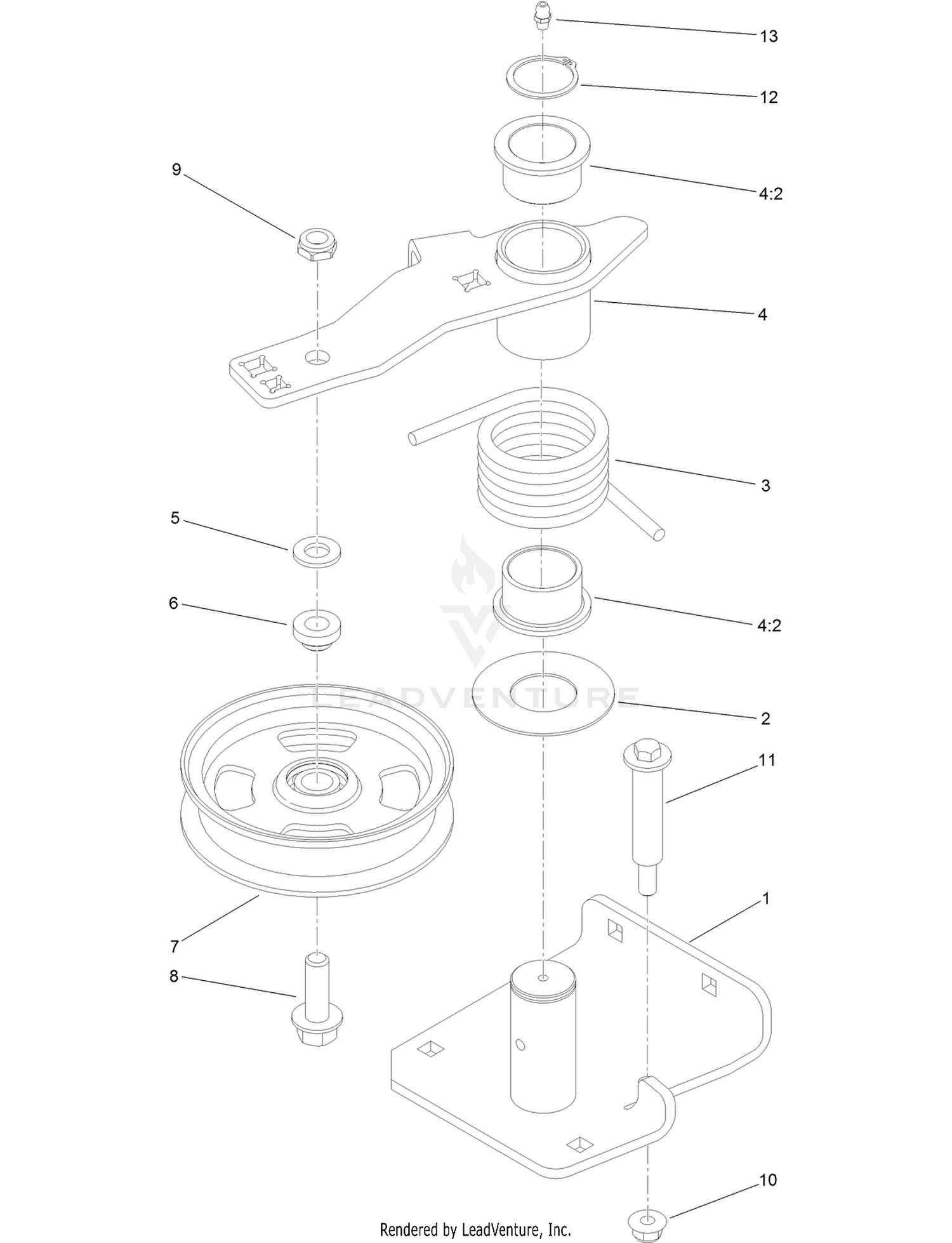

Tensioner Assembly No. 140-9026
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 140-9021 | PIVOT-IDLER Price: $136.20 |
| 2 | 108-1926 | WASHER Price: $5.30 |
| 3 | 112-7395 | SPRING-TORSION Price: $26.70 |
| 4 | 144-0503 | HIGH IDLER ARM ASM Price: $95.88 |
| 5 | 106-9888 | WASHER-FLAT Price: $0.49 |
| 6 | 108-1924 | SPACER-IDLER Price: $11.13 |
| 7 | 136-5405 | PULLEY-IDLER, FLAT Price: $32.30 |
| 8 | 100-6116 | SCREW-HHF Price: $6.41 |
| 9 | 3296-45 | NUT-HEX Price: $3.79 |
| 10 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 11 | 112-3977 | BOLT-SHOULDER Price: $7.37 |
| 12 | 32120-84 | RING-SNAP, EXTERNAL Price: $0.61 |
