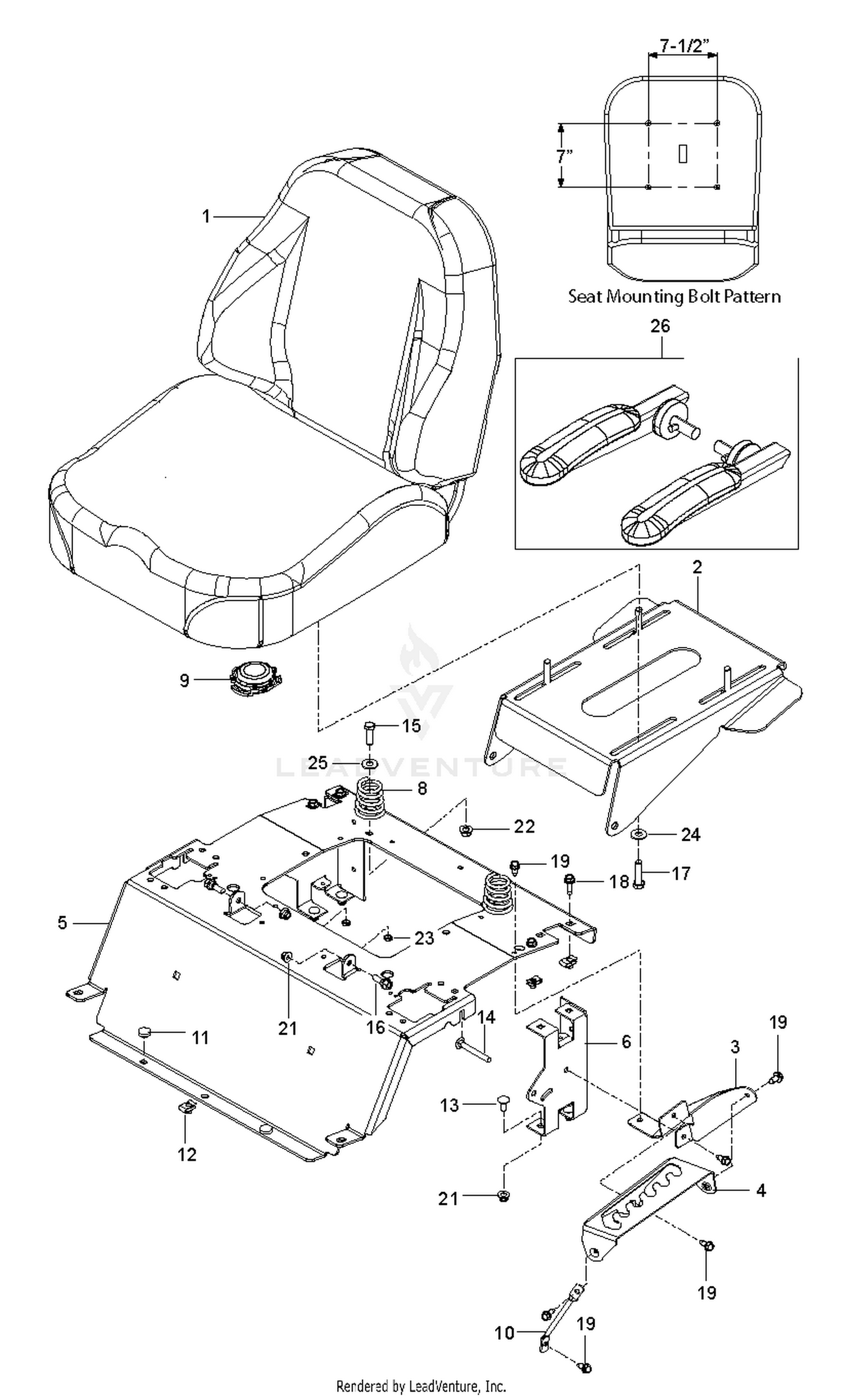

| Ref | Part Number | Description |
|---|
| 1 |
590873408 |
Seat Bottom This part replaces 590873404. Price: $499.99 |
| 2 |
590856002 |
PAN SEAT, 4-BOLT BLACK X428 Price: $69.99 |
| 3 |
586220802 |
PLATE.SUPPORT.DECK.LIFT.X431 Price: $14.99 |
| 4 |
586221202 |
PLATE.DECK.LIFT.X431 Price: $14.99 |
| 6 |
580308202 |
SUPPORT REAR SEAT BLACK Price: $19.99 |
| 8 |
589483501 |
SPRING.COMPRESS.SEAT.TAPERED Price: $7.99 |
| 9 |
532401545 |
SWITCH.SEAT.DELTA.OPC. Price: $34.99 |
| 10 |
586428601 |
SUPPORT.LEG.DECK.LIFT Price: $5.99 |
| 11 |
585989301 |
GROMMET.BUMPER Price: $3.99 |
| 12 |
539104763 |
U-CLIP 5/16-18 NUT RETAINER Price: $4.99 |
| 13 |
595901601 |
GSPW Bolts This part replaces 539990316. Price: $2.99 |
| 14 |
510422702 |
Screws This part replaces 510422701. Price: $1.99 |
| 15 |
874760620 |
BOLT This part replaces 874780620. Price: $4.99 |
| 16 |
596240701 |
Bolts This part replaces 539110303. Price: $3.99 |
| 17 |
595305701 |
Screws This part replaces 874780520. Price: $3.99 |
| 18 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99 |
| 19 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $4.99 |
| 21 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 22 |
521996502 |
GSPW Nuts This part replaces 521996501. Price: $2.99 |
| 23 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873350400. Price: $2.99 |
| 24 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111116. Price: $2.99 |
| 25 |
596433701 |
GSPW Washers This part replaces 819141614. Price: $2.99 |
| 26 |
590873402 |
SEAT KING 18" WOOD BTM, ARM Price: $159.99 |
