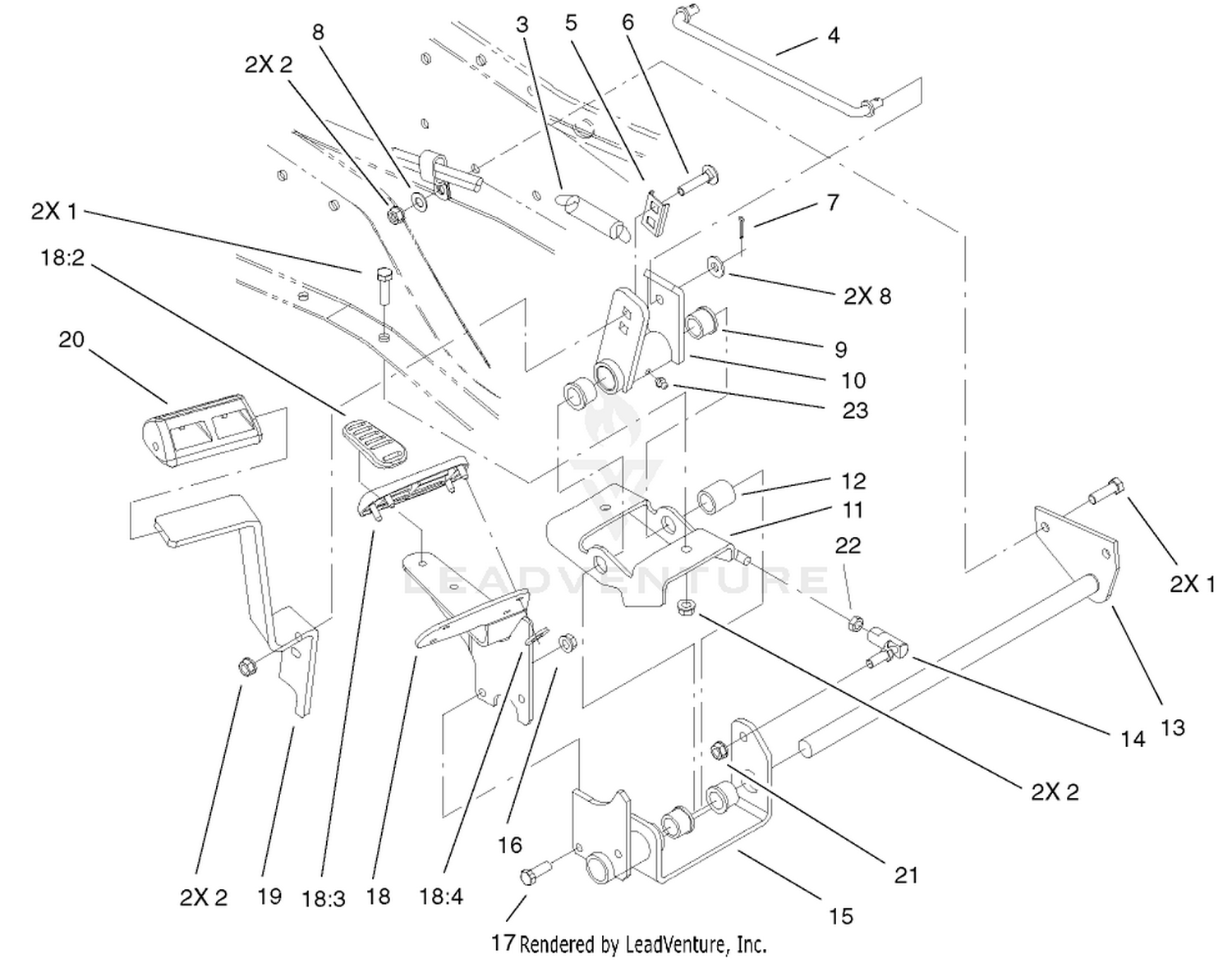

| Ref | Part Number | Description |
|---|
| 1 |
323-7 |
SCREW-HH Price: $0.65 |
| 2 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 3 |
63-1590 |
SPRING-IDLER Price: $18.93 |
| 4 |
94-2499 |
ROD-PIVOT PLATE TO PEDAL Price: $15.74 |
| 5 |
94-7818 |
DISCONTINUED Price: Call Us |
| 6 |
119-4162 |
SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 7 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 8 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 9 |
98-1636 |
BUSHING-FLANGE Price: $4.36 |
| 10 |
94-2351-03 |
BRACKET-BRAKE Price: $113.35 |
| 11 |
94-2343-03 |
BRACKET-SUPPORT Price: $13.04 |
| 12 |
94-7501-03 |
DISCONTINUED This part replaces 94-7501. Price: Call Us |
| 13 |
94-2345-03 |
SHAFT-PIVOT Price: $36.14 |
| 14 |
94-7572 |
END-TIE ROD, RH Price: $31.99 |
| 15 |
94-2342-03 |
DISCONTINUED Price: Call Us |
| 16 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 17 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 18 |
99-8050 |
DISCONTINUED Price: Call Us |
| 19 |
94-2352-03 |
DISCONTINUED Price: Call Us |
| 20 |
94-2123 |
PAD-PEDAL, BRAKE Price: $28.63 |
| 21 |
3296-6 |
NUT-LOCK Price: $1.49 |
| 22 |
3220-3 |
NUT-HJ Price: $0.28 |
