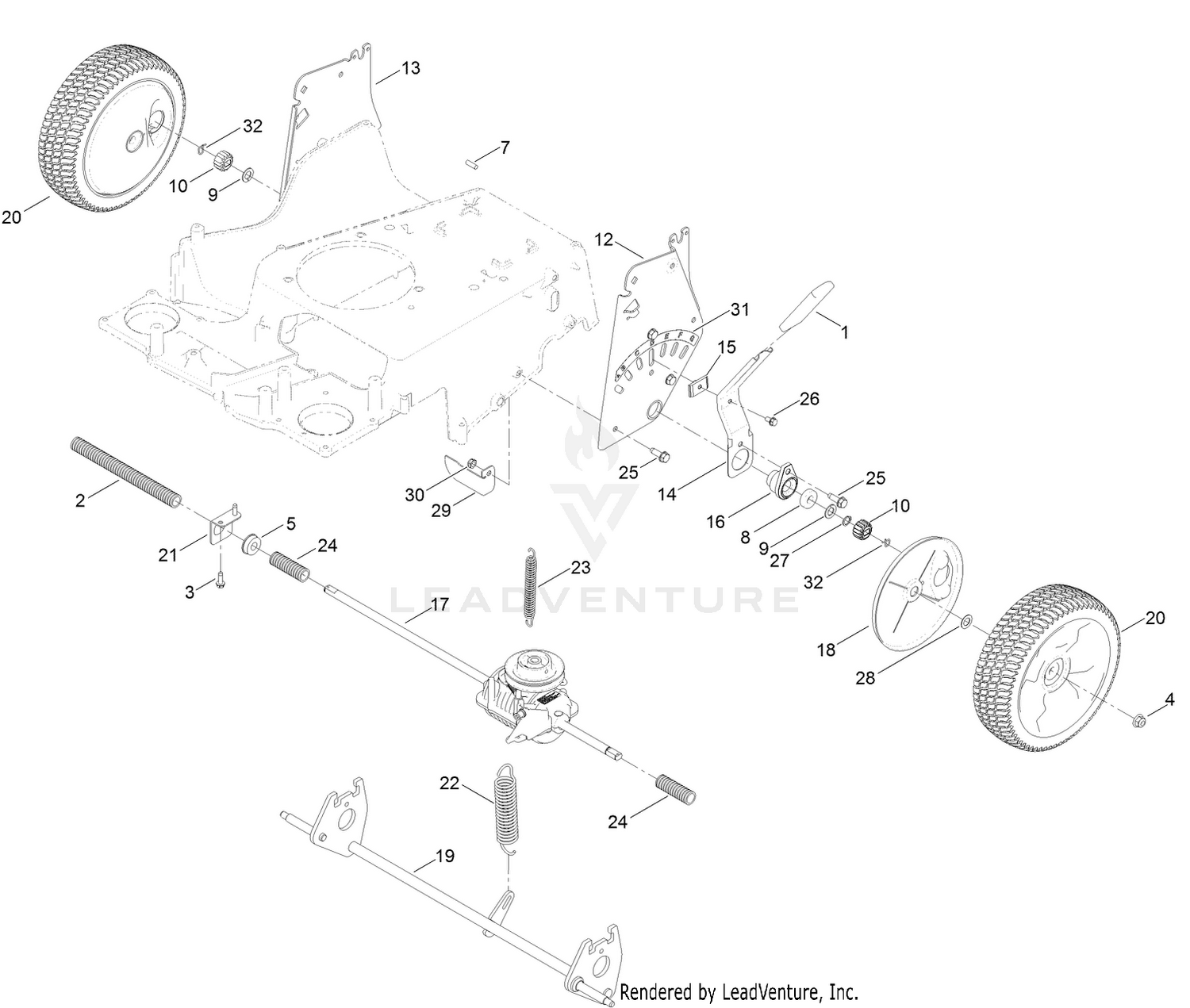

| Ref | Part Number | Description |
|---|
| 1 |
1-633295 |
GRIP-LEVER, LIFT Price: $7.29 |
| 2 |
121-5799 |
CONDUIT-CONVOLUTED Price: $0.89 |
| 3 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 4 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 5 |
104-8699 |
BEARING-BALL Price: $4.39 |
| 7 |
106-5681 |
PIN-STOP Price: $2.89 |
| 8 |
52-2450 |
BEARING-WHEEL This part replaces 109-8020. Price: $17.99 |
| 9 |
110-7191 |
WASHER-THRUST Price: $1.79 |
| 10 |
131-5399 |
GEAR-PINION, 15T Price: $4.79 |
| 12 |
120-3342-03 |
PLATE-HOC, LH Price: $26.99 |
| 13 |
120-3343-03 |
PLATE-HOC, RH Price: $26.99 |
| 14 |
120-5208 |
ARM-SPRING, REAR Price: $15.99 |
| 15 |
120-5209 |
KEY-SPRINGARM Price: $3.49 |
| 16 |
131-5364 |
RETAINER-BEARING Price: $13.99 |
| 17 |
131-9665 |
TRANSMISSION KIT Price: $173.99 |
| 18 |
120-6233 |
COVER-GEAR Price: $11.99 |
| 19 |
140-4048 |
REAR AXLE ASM This part replaces 131-0815. Price: $84.99 |
| 21 |
138-3233 |
MOUNT-BEARING This part replaces 120-7008. Price: $3.99 |
| 22 |
120-7026 |
SPRING-EXTENSION Price: $12.99 |
| 23 |
120-7027 |
SPRING-EXTENSION Price: $8.99 |
| 24 |
121-5800 |
CONDUIT-CONVOLUTED Price: $0.89 |
| 25 |
701243 |
SCREW-THD ROLL, HWH Price: $2.59 |
| 26 |
32144-4 |
SCREW-HWH Price: $1.29 |
| 27 |
32151-61 |
RING-RETAINING Price: $2.39 |
| 28 |
36-4780 |
WASHER-PLAIN Price: $6.59 |
| 29 |
138-5338 |
BRACKET-STOP This part replaces 121-5821. Price: $5.89 |
| 30 |
3296-47 |
NUT-LOCK, NI Price: $3.59 |
| 31 |
125-2497 |
DECAL-HOC, REAR Price: $3.49 |
