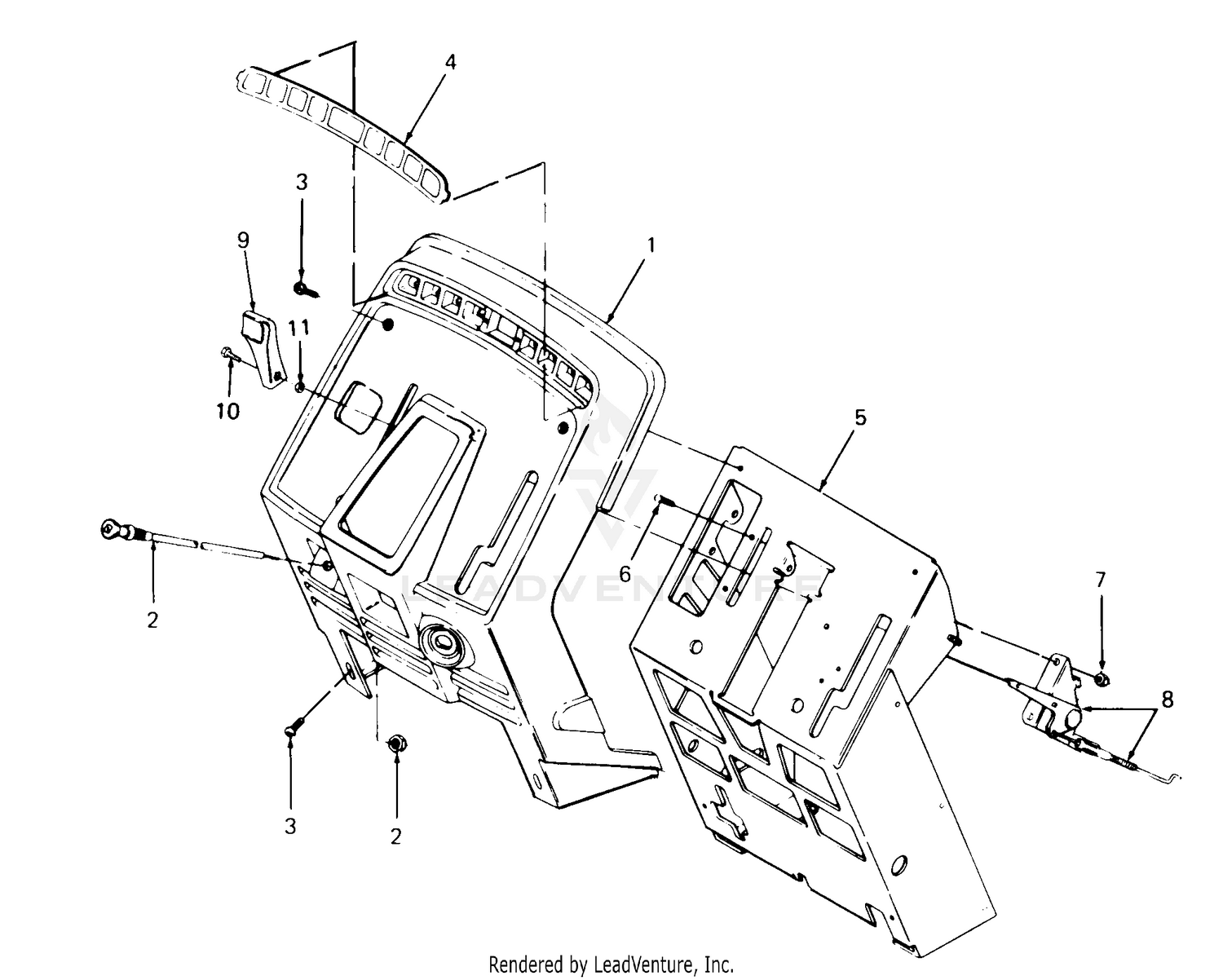

| Ref | Part Number | Description |
|---|
| 1 |
731-3096 |
INSTRUMENT PANEL Not Available Price: |
| 1 |
75-3480 |
FRAME-UPPER Price: $323.32 |
| 2 |
108-6703 |
ADJUSTER-SEAT This part replaces 66-8530. Price: $183.47 |
| 2 |
746-3036 |
CONTROL-CHOKE W/ Not Available Price: |
| 3 |
66-8520 |
BUMPER-DOWNSTOP Price: $37.56 |
| 3 |
710-3009 |
Screw, Pan Hd Cutting, #10-24 X .75 Lg Price: $6.24 |
| 4 |
779-3508 |
LABEL-DASH Not Available Price: |
| 4 |
82-9060 |
DISCONTINUED Price: Call Us |
| 5 |
603-0023 |
PEDESTAL A Not Available Price: |
| 5 |
76-1960 |
KNOB KIT This part replaces 77-2870. Price: $357.33 |
| 6 |
710-0709 |
SELF CLINCH STUD Not Available Price: |
| 6 |
76-1910 |
DISCONTINUED Price: Call Us |
| 7 |
66-8560 |
NUT-PUSH Price: $5.97 |
| 7 |
712-3071A |
HEX NUT KEPS 10-32 Not Available This part replaces 712-3071. Price: |
| 8 |
76-1940 |
SPRING-EXTENSION Price: $66.03 |
| 8 |
946-3038A |
THROTTLE CONTROL This part replaces 746-3038. Price: $33.52 |
| 9 |
76-1920 |
SLEEVE-BEARING Price: $22.50 |
| 9 |
931-3161A |
Knob, Throttle This part replaces 731-3161. Price: $17.34 |
| 10 |
106-1031 |
TENSION ADJUSTER KNOB ASM This part replaces 76-1930. Price: $68.93 |
| 10 |
710-3217 |
Screw, Cross Rec Truss Hd, #8-32 X .38 Lg Price: $5.94 |
| 11 |
66-8610 |
DISCONTINUED Price: Call Us |
| 12 |
66-9290 |
SPACER-SUSPENSION Price: $3.60 |
| 13 |
75-3580 |
PLATE-SEAT Price: $213.06 |
| 14 |
75-3510 |
BOLT-SHOULDER Price: $14.55 |
| 15 |
80-4860 |
PIN-CLEVIS Price: $6.13 |
| 16 |
75-3530 |
SPRING-COMPRESSION Price: $31.98 |
| 17 |
3285-19 |
PIN-GROOVE This part replaces 75-3540. Price: $1.79 |
| 18 |
75-3550 |
BUMPER-SEAT Price: $18.48 |
| 19 |
76-2940 |
BUMPER Price: $9.73 |
| 20 |
75-3570 |
TIP-VINYL Price: $2.48 |
| 21 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 22 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 23 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 24 |
3296-44 |
NUT-LOCK, NI Price: $2.46 |
| 25 |
32128-26 |
NUT-FLANGE Price: $5.89 |
| 26 |
3256-46 |
WASHER-FLAT Price: $5.77 |
| 27 |
3256-5 |
WASHER-FLAT Price: $0.27 |
| 28 |
93-3164 |
CAP Price: $11.64 |
| 29 |
93-3163 |
SPRING Price: $26.01 |
| 30 |
93-3165 |
BRACKET Price: $37.47 |
| 31 |
322-6 |
SCREW-HH Price: $0.45 |
| 32 |
3253-33 |
WASHER-LOCK Price: $1.19 |
| 503217450 |
503217450 |
SCREW Price: $3.99 |
| 503281614 |
503283208 |
CARBURETOR C3-EL18 This part replaces 503281614. Price: $99.99 |
| 503281803 |
503283207 |
CARBURETOR C3-EL17 This part replaces 503281803. Price: $99.99 |
| 503866201 |
537251302 |
PARTITION WALL INTAKE This part replaces 503866201. Price: $9.99 |
| 503866301 |
503866302 |
BELLOWS This part replaces 503866301. Price: $19.99 |
| 503866401 |
503866402 |
FLANGE This part replaces 503866401. Price: $5.99 |
| 503869401 |
503869401 |
KNUCKLE Price: $9.99 |
| 503869501 |
503869502 |
CONTROL This part replaces 503869501. Price: $6.99 |
| 503869601 |
503869601 |
CHOKE CONTROL Price: $7.99 |
| 503869701 |
503869702 |
SPRING This part replaces 503869701. Price: $3.99 |
| 503889201 |
503889201 |
THROTTLE ROD Price: $14.99 |
| 503896001 |
544325101 |
HOSE, IMPULSE This part replaces 503896001. Price: $3.99 |
| 537024001 |
537024001 |
AIR FILTER - NYLON (B) Price: $14.99 |
| 537024002 |
537024002 |
AIR FILTER - NYLON (Y) Price: $17.99 |
| 537024003 |
537024003 |
AIR FILTER - FELT Price: $14.99 |
