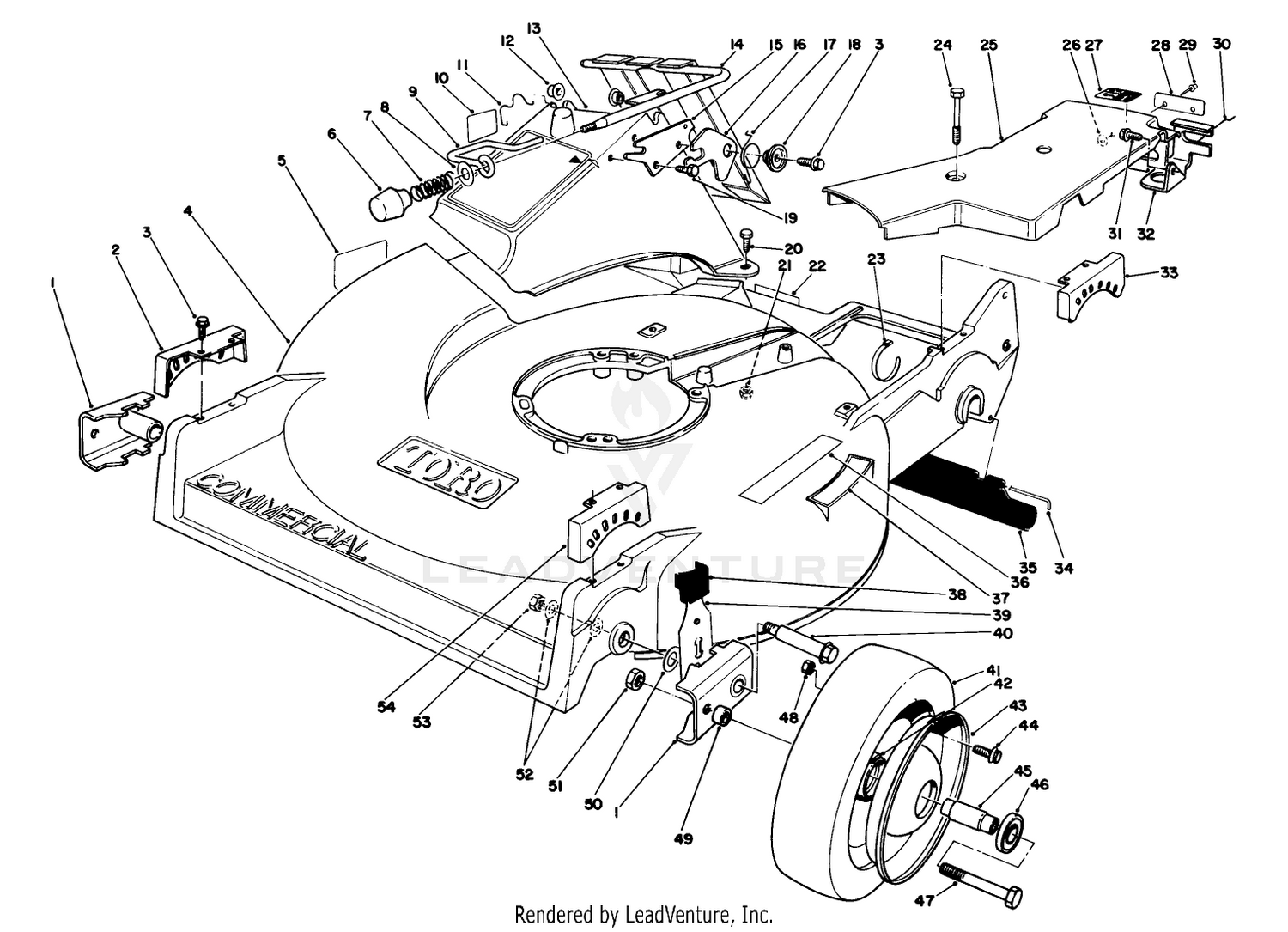

| Ref | Part Number | Description |
|---|
| 1 |
61-8300 |
ARM-PIVOT, FRONT Price: $27.99 |
| 2 |
49-8770 |
QUADRANT-FRONT, RH Price: $25.99 |
| 3 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 4 |
14-6159 |
HOUSING W/DECALS(INTL) This part replaces 12-6679. Price: $1,116.99 |
| 5 |
93-6667 |
DECAL-WARNING This part replaces 62-3860. Price: $11.47 |
| 6 |
233-37 |
KNOB Price: $31.99 |
| 7 |
23-0920 |
COMPRESSION SPRING Price: $7.89 |
| 8 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 9 |
23-0940 |
DOOR LATCH Price: $88.01 |
| 10 |
62-4060 |
DISCONTINUED Price: Call Us |
| 11 |
33-4830 |
DOOR RETAINER Price: $42.71 |
| 12 |
23-0880 |
BUSHING-NYLON Price: $9.27 |
| 13 |
36-1350 |
DISCHARGE CHUTE *B Price: $350.99 |
| 14 |
33-5660 |
DISCONTINUED Price: $13.00 |
| 15 |
23-1040 |
DOOR LATCH PLATE Price: $18.75 |
| 16 |
42-4010 |
SAFETY LATCH Price: $5.33 |
| 17 |
33-4860 |
TORSION SPRING Price: $61.99 |
| 18 |
43-4840 |
DOOR SPACER Price: $6.39 |
| 19 |
32104-17 |
SCREW-HWH Price: $0.99 |
| 20 |
321-7 |
SCREW-HH Price: $4.19 |
| 21 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 22 |
40-2850 |
DISCONTINUED Price: Call Us |
| 23 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 24 |
37-7260 |
SCREW-HWH Price: $5.09 |
| 25 |
74-1770 |
COVER-BELT This part replaces 61-8311. Price: $41.99 |
| 26 |
3256-49 |
WASHER-PLAIN Price: $0.33 |
| 27 |
93-6664 |
DECAL-GREASE This part replaces 62-7580. Price: $7.09 |
| 28 |
62-7610 |
DISCONTINUED Price: Call Us |
| 29 |
3290-409 |
RIVET Price: $0.34 |
| 30 |
46-7030 |
RETAINER-CABLE Price: $5.29 |
| 31 |
32144-70 |
SCREW-HWHTF Price: $1.99 |
| 32 |
82-5680-03 |
BRACKET-TRACTION, ADJ. This part replaces 46-5870. Price: $10.99 |
| 33 |
49-8740 |
QUADRANT-REAR, LH Price: $25.99 |
| 34 |
33-3208 |
ROD-SHIELD Price: $13.99 |
| 35 |
112-9989 |
SHIELD-TRAILING This part replaces 44-0580. Price: $26.99 |
| 36 |
93-6657 |
DECAL-DANGER This part replaces 62-3870. Price: $22.12 |
| 37 |
62-3950 |
DECAL - STEP PAD INT'L Price: $2.50 |
| 38 |
25-7740 |
KNOB-ARM Price: $4.59 |
| 39 |
66-7550 |
Spring Arm Assembly Front Price: Call Us |
| 40 |
27-6231 |
WHEEL BOLT Price: $4.49 |
| 41 |
53-7740 |
TIRE Price: $37.99 |
| 42 |
52-2410 |
HUB-BEARING Price: $31.99 |
| 43 |
121-1365-06 |
RIM-HALF, WHEEL This part replaces 53-7780. Price: $16.99 |
| 44 |
3234-26 |
SCREW-HHF Price: $2.69 |
| 45 |
52-2440 |
SPACER-BEARING Price: $9.99 |
| 46 |
52-2450 |
BEARING-WHEEL Price: $17.99 |
| 47 |
323-12 |
SCREW-HH Price: $1.14 |
| 48 |
3296-56 |
NUT-LOCK, NI Price: $2.09 |
| 49 |
52-2480 |
SPACER-WHEEL Price: $5.89 |
| 50 |
257-3 |
WASHER-THRUST Price: $14.99 |
| 51 |
32152-2 |
NUT-LOCK, CONE Price: $1.79 |
| 52 |
40-1940 |
WASHER Price: $1.59 |
| 53 |
32153-11 |
NUT-LOCK This part replaces 52-3620. Price: $3.99 |
| 54 |
49-8760 |
QUADRANT-FRONT, LH Price: $25.99 |
