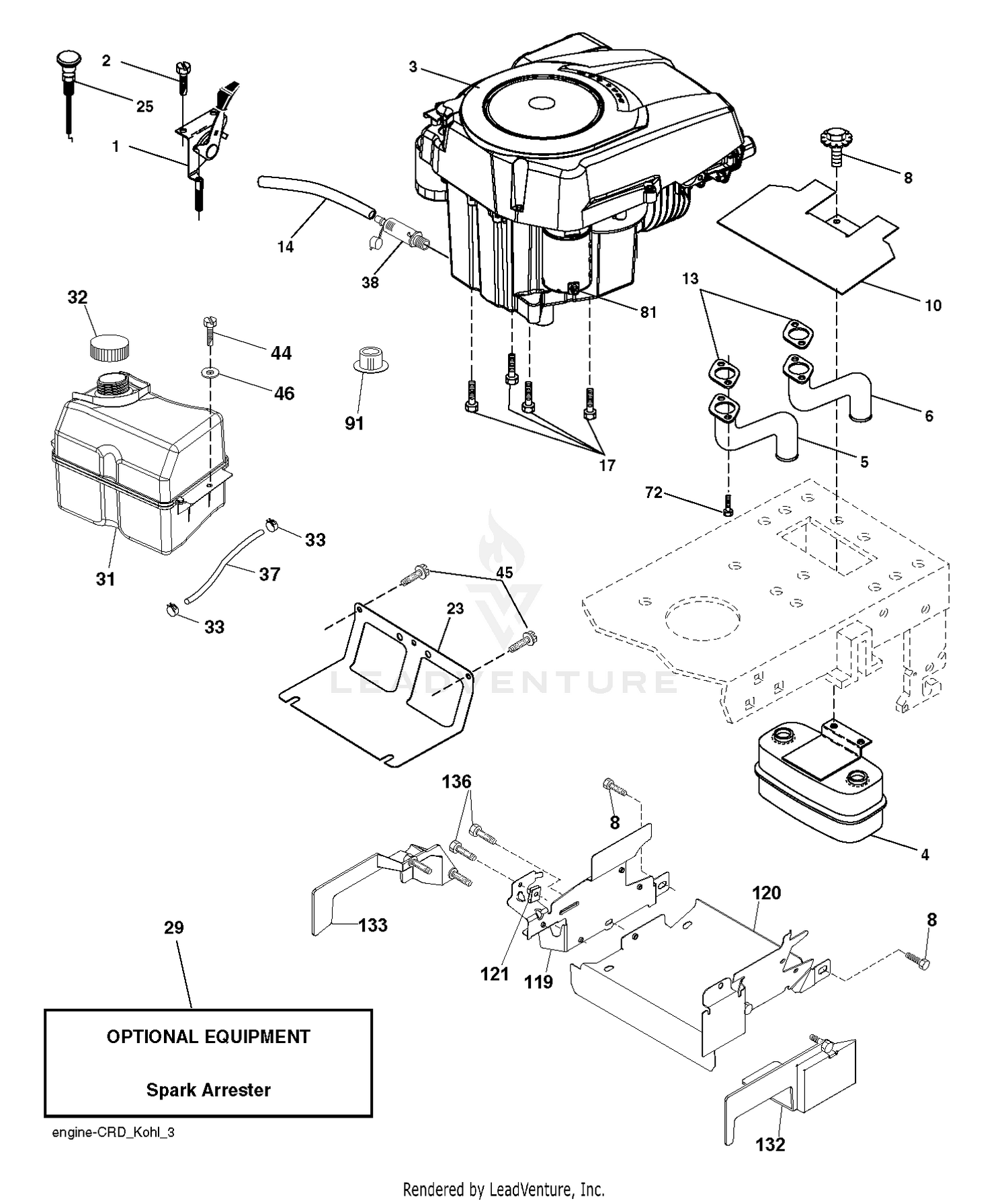

| Ref | Part Number | Description |
|---|
| 1 |
532177328 |
CONTROL.THROTTLE.LH.COBRA.KNOB This part replaces 532182937. Price: $24.99 |
| 2 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 4 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 5 |
583954501 |
PIPE.EXHAUST.LH.CV18/20 This part replaces 532146699. Price: $19.99 |
| 6 |
583954801 |
PIPE.EXHAUST.RH.CV18/20 This part replaces 532146700. Price: $17.99 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 10 |
131-6557 |
ALTERNATOR ASM This part replaces 98-9474. Price: $443.05 |
| 10 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532146629. Price: $11.99 |
| 13 |
532186054 |
GASKET.EXHAUST.KOHL.CV18-CV26 Price: $5.99 |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 17 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 20 |
112-7047 |
STAY-DYNAMO Price: $14.95 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 25 |
532187768 |
CONTROL.CHOKE.ERGO.BLACK This part replaces 532189541. Price: $27.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
108-7088 |
BOLT Price: $1.22 |
| 31 |
581290101 |
TANK.ASSEMBL.2.5GAL.NON-EPA This part replaces 532407489. Price: $99.99 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532430220. Price: $22.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 38 |
532428287 |
VALUE.OIL.DRAIN Price: $14.99 |
| 40 |
98-9360 |
BOLT Price: $2.35 |
| 44 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 46 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 50 |
98-9366 |
WASHER-PLAIN This part replaces 98-7696. Price: $0.28 |
| 60 |
98-7738 |
WASHER-SPRING Price: $0.24 |
| 70 |
100-9233 |
WASHER-PLAIN Price: $0.48 |
| 72 |
596134201 |
Screws This part replaces 532192334. Price: $2.99 |
| 80 |
98-7692 |
BOLT Price: $0.92 |
| 81 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 90 |
99-7526 |
NUT This part replaces 98-7737. Price: $1.29 |
| 91 |
532187495 |
BUSHING.1.375OD Price: $4.99 |
| 100 |
110-0972 |
PULLEY Price: $55.10 |
| 110 |
105-3745 |
PULLEY-DRIVE, FAN Price: $293.55 |
| 119 |
583254301 |
GUARD.ENGINE.CRD.LH This part replaces 532199768. Price: $17.99 |
| 120 |
583254201 |
GUARD.ENGINE.CRD.RH This part replaces 532199767. Price: $29.99 |
| 120 |
98-9585 |
BOLT Price: $15.20 |
| 121 |
532196688 |
CLIPS Price: $3.99 |
| 130 |
98-9676 |
V-BELT Price: $31.01 |
| 132 |
583383301 |
SHIELD.SIDE.CRD.FR.RH This part replaces 532420757. Price: $9.99 |
| 133 |
583383201 |
SHIELD.SIDE.CRD.FR.LH This part replaces 532420756. Price: $6.99 |
| 136 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
