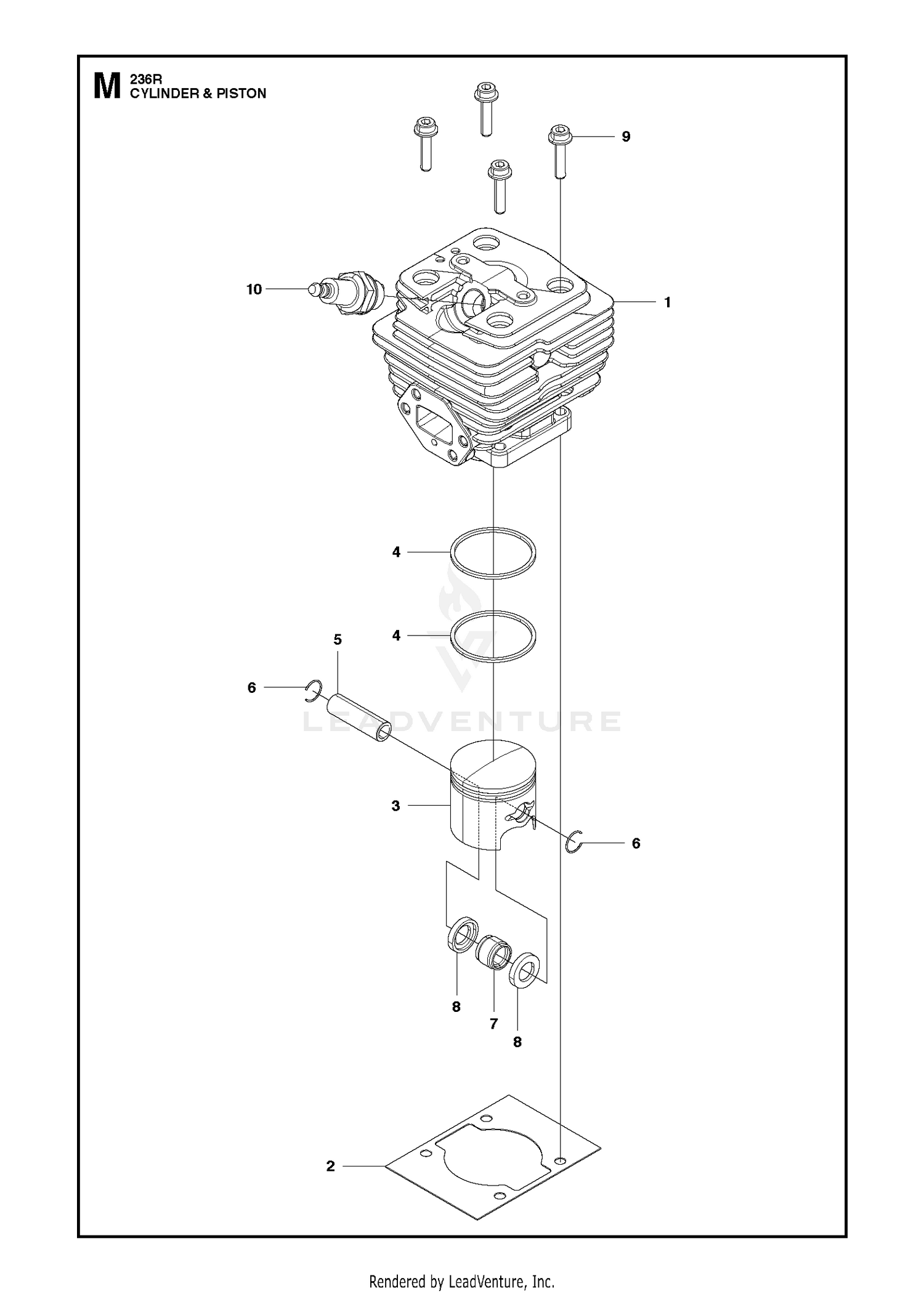

CYLINDER PISTON
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 121-6906 | MAIN BEARING HOUSING ASM This part replaces SG231040. Price: $1,111.98 |
| 1 | 512272201 | CYLINDER Price: $49.99 |
| 2 | 510064301 | GASKET Price: $4.99 |
| 2 | SG278625 | SCREW-HH Price: $9.16 |
| 3 | 3296-41 | NUT-LOCK NI Price: $5.49 |
| 3 | 515375101 | PISTON Price: $34.99 |
| 4 | 510917701 | PISTON RING Price: $4.99 |
| 4 | SG211557 | SHAFT-STUB, OUTSIDE Price: $334.90 |
| 5 | 510916601 | PIN Price: $3.99 |
| 5 | SG361375 | NUT-HJ Price: $85.13 |
| 6 | 516283001 | RING Price: $2.99 |
| 6 | SG241753 | WASHER-CRANK, CLIPPED Price: $58.61 |
| 7 | 505297301 | ROLLER BEARING Price: $6.99 |
| 7 | SG215000-03 | ARM-CRANK Price: $606.12 |
| 8 | 513752401 | WASHER Price: $5.99 |
| 8 | SG281240 | PLATE-LOCKING Price: $22.60 |
| 10 | 515497401 | NEEDS DESCRIPTION Price: Call Us |
