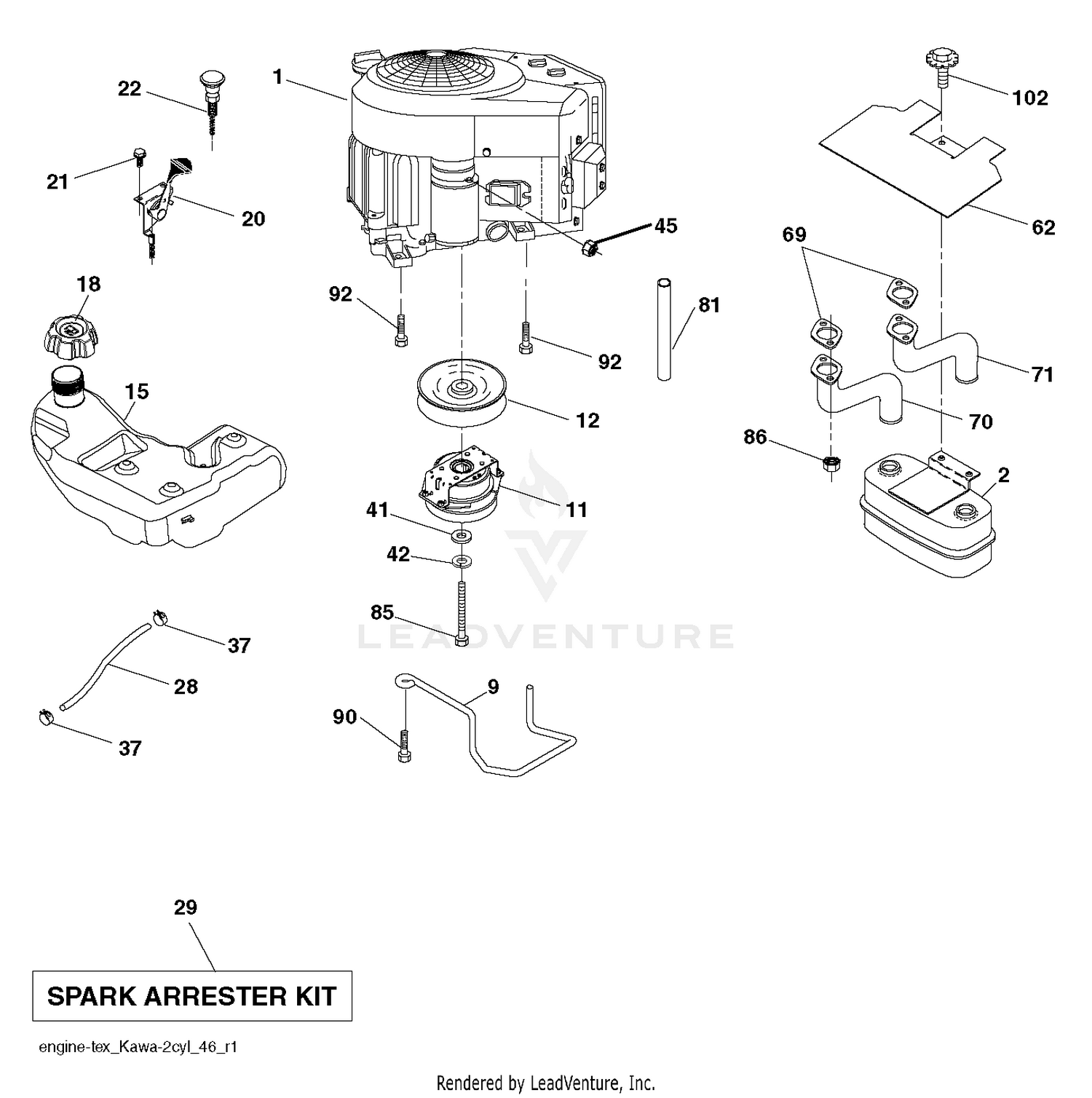

| Ref | Part Number | Description |
|---|
| 1 |
75-9790-01 |
DISCONTINUED Price: Call Us |
| 2 |
589818702 |
MUFFLER.ASM.TWIN.MNTG.BRACKET This part replaces 532445962. Price: $44.99 |
| 6 |
327-24 |
SCREW-HH Price: $7.99 |
| 7 |
3296-53 |
NUT-LOCK, NI Price: $1.47 |
| 8 |
93-9939 |
TIRE Price: $34.55 |
| 9 |
596501502 |
Keepers This part replaces 532194320. Price: $9.99 |
| 9 |
93-4239 |
RIM-WHEEL, HALF Price: $29.68 |
| 10 |
93-5980 |
HUB Price: $67.14 |
| 11 |
587241501 |
CLUTCH.OGURA.4.4PD.GT1.5-EH13V Price: $199.99 |
| 11 |
93-4241 |
SPACER-BEARING, INNER Price: $26.72 |
| 12 |
120-5378 |
BEARING-BALL This part replaces 93-4237. Price: $13.84 |
| 12 |
532405097 |
PULLEY.ENGINE.TUFFTORQ Price: $49.99 |
| 13 |
95-2741 |
RIM-WHEEL, HALF Price: $25.01 |
| 14 |
68-8950 |
TUBE-INNER (W/VALVE) Price: $26.99 |
| 15 |
532193499 |
TANK.FUEL.4GAL Price: $69.99 |
| 15 |
93-4242 |
PLATE Price: $11.21 |
| 16 |
32128-16 |
NUT-HHF Price: $0.54 |
| 18 |
584248702 |
CAP.ASSY.FUEL.3".N-EPA.GRY.498 This part replaces 532439645. Price: $14.99 |
| 20 |
532412165 |
CONTROL.THROTTLE.COBRA.BLACK Price: $27.99 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 22 |
532191596 |
CONTROL.CHOKE.ERGO.PUSH-IN.BLA Price: $32.99 |
| 28 |
587044854 |
HOSE.1/4".LOW.PERM.FUEL.LN.54" This part replaces 532142158. Price: $14.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 69 |
532178151 |
GASKET Price: $4.99 |
| 70 |
583955601 |
TUBE.EXHAUST.LH.FR961/FR730 This part replaces 532424765. Price: $24.99 |
| 71 |
583955701 |
TUBE.EXHAUST.RH.FR961/FR730 This part replaces 532424766. Price: $24.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 85 |
581332804 |
CLUTCH BOLT7/16-20X3.5 GR524HR Price: $6.99 |
| 86 |
532184362 |
NUT.HEX.FLANGE.TOPLOCK Price: $3.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 92 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 102 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
