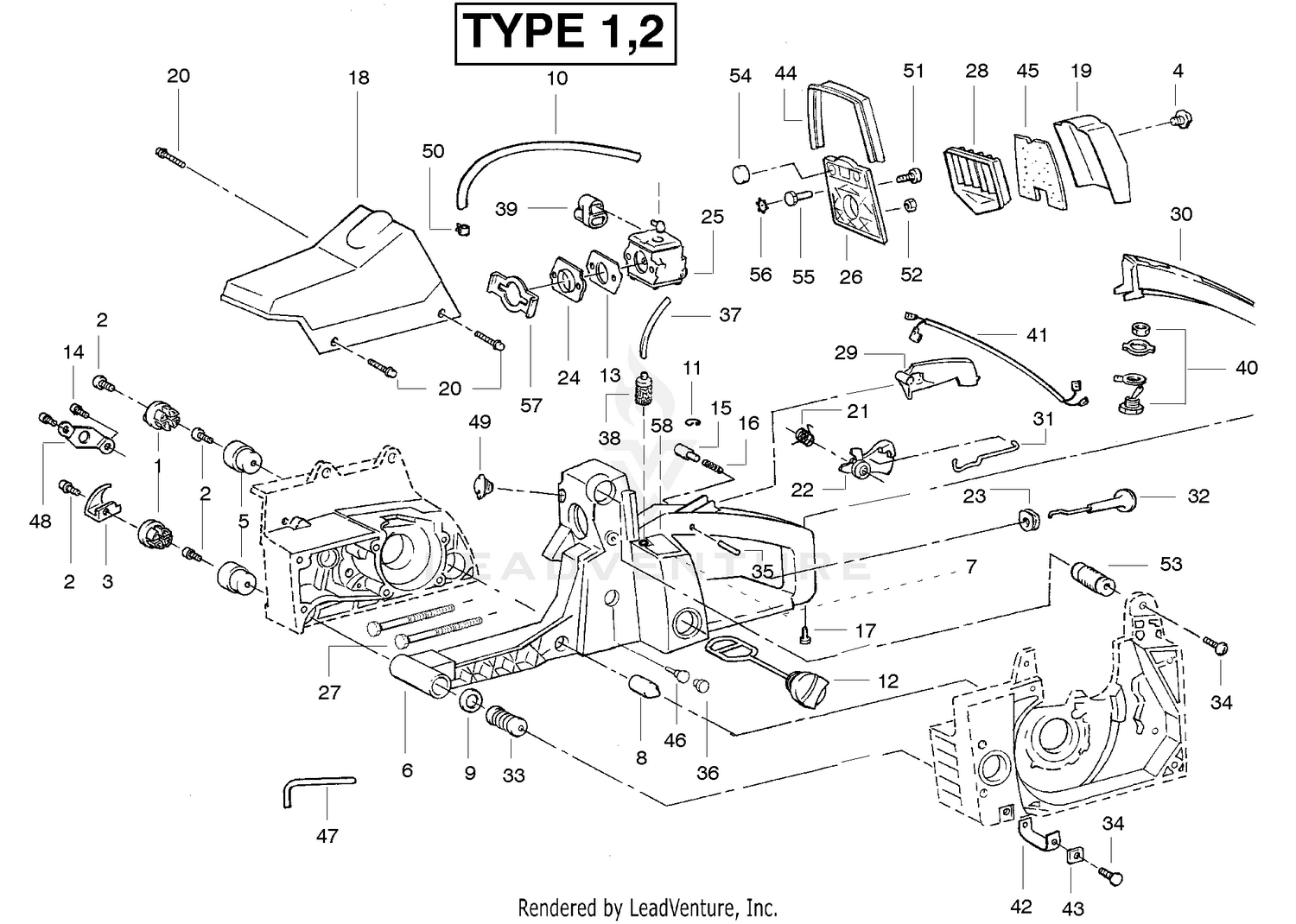

Handle & Controls
Parts (56)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 530027732 | Retainer-Chain Catcher Price: $1.99 |
| 2 | 530016057 | Screw Price: $1.99 |
| 3 | 530027733 | Chain Catcher Price: $1.99 |
| 4 | 530049248 | Knob-Carb. Cover Price: $1.99 |
| 5 | 530042080 | Lower Isolator Price: $2.99 |
| 6 | 530069974 | Rear Handle & Fuel Tank Price: Call Us |
| 7 | 530019192 | Seal Carb. Cover-Left Price: $1.99 |
| 8 | 530027187 | Isolator Limiter Price: $1.99 |
| 9 | 530015123 | Washer Price: $1.99 |
| 10 | 530069976 | Impulse Line Kit Price: $4.99 |
| 12 | 530010845 | Fuel Cap Ass’y. Price: $5.99 |
| 13 | 530069487 | Gasket - Carb. Price: $6.99 |
| 14 | 530015875 | Screw Price: $1.99 |
| 15 | 530029666 | Button Throttle Lock Price: $2.99 |
| 16 | 530024772 | Spring-Throttle Price: $1.99 |
| 17 | 530015716 | Screw Price: $1.99 |
| 18 | 530049271 | Cylinder Shield Price: $7.99 |
| 19 | 530053440 | Carb. Cover Ass’y. Price: $9.36 |
| 20 | 530015650 | Screw Price: $1.99 |
| 21 | 530027134 | Spring-Trigger Latch Price: $1.99 |
| 22 | 530027133 | Throttle Trigger Price: $1.99 |
| 23 | 530036053 | Grommet-Choke Rod Price: $1.99 |
| 24 | 530049465 | Bracket-Intake Price: $1.99 |
| 25 | 530069895 | Carburetor Kit w/limiter caps Price: $29.64 |
| 26 | 530049260 | Air Filter Base Price: $6.99 |
| 27 | 530049562 | Carb. Mounting Stud Price: $1.99 |
| 28 | 503553902 | Air Filter Price: $13.99 |
| 29 | 530027135 | Throttle Lockout Price: $1.99 |
| 30 | 530049257 | Rear Handle Cover Price: $2.99 |
| 31 | 530027073 | Throttle Wire Price: $2.99 |
| 32 | 530027075 | Rod & Wire Choke Price: $1.99 |
| 33 | 530069384 | Isolator Kit Price: $15.99 |
| 34 | 530015650 | Screw This part replaces 530015871. Price: $1.99 |
| 35 | 530015701 | Dowel Pin-Trigger Price: $1.99 |
| 36 | 530038264 | Plug-Bronze Vent Price: $1.99 |
| 37 | 530069910 | Fuel Line Kit Price: $3.99 |
| 38 | 530091878 | Fuel Pick-up Ass’y. Price: $5.99 |
| 39 | 530049265 | Grommet-Carburetor Price: $1.99 |
| 40 | 530069225 | Switch Kit Price: $6.99 |
| 41 | 530027138 | Lead Wire Ass’y. Price: $2.99 |
| 42 | 530037009 | AV Strap Price: $1.99 |
| 43 | 530037012 | Strap Retainer Plate Price: $1.99 |
| 44 | 530049739 | Sound Strip Price: Call Us |
| 45 | 530049684 | Sound Foam Price: Call Us |
| 46 | 530026119 | Check Valve Price: $1.99 |
| 47 | 530031159 | Hex Wrench 5/32 Price: $1.99 |
| 48 | 530029347 | Bracket-Retainer Price: $1.99 |
| 49 | 530025922 | Plug-Air Box Price: $1.99 |
| 50 | 530053893 | Clamp, Hose Price: $1.99 |
| 51 | 530015598 | Screw-Air Filter Base Price: $1.99 |
| 52 | 530049561 | Nut-Carb Price: $1.99 |
| 53 | 530047334 | Cylinder Mount Ass’y. Price: Call Us |
| 54 | 530027399 | Bumper Carb Cover Price: $1.99 |
| 55 | 530015839 | Screw-Carb Knob Price: $1.99 |
| 56 | 530016199 | Retaining Ring Price: $1.99 |
| 57 | 530049273 | Bracket-Carb Stud Price: $1.99 |
