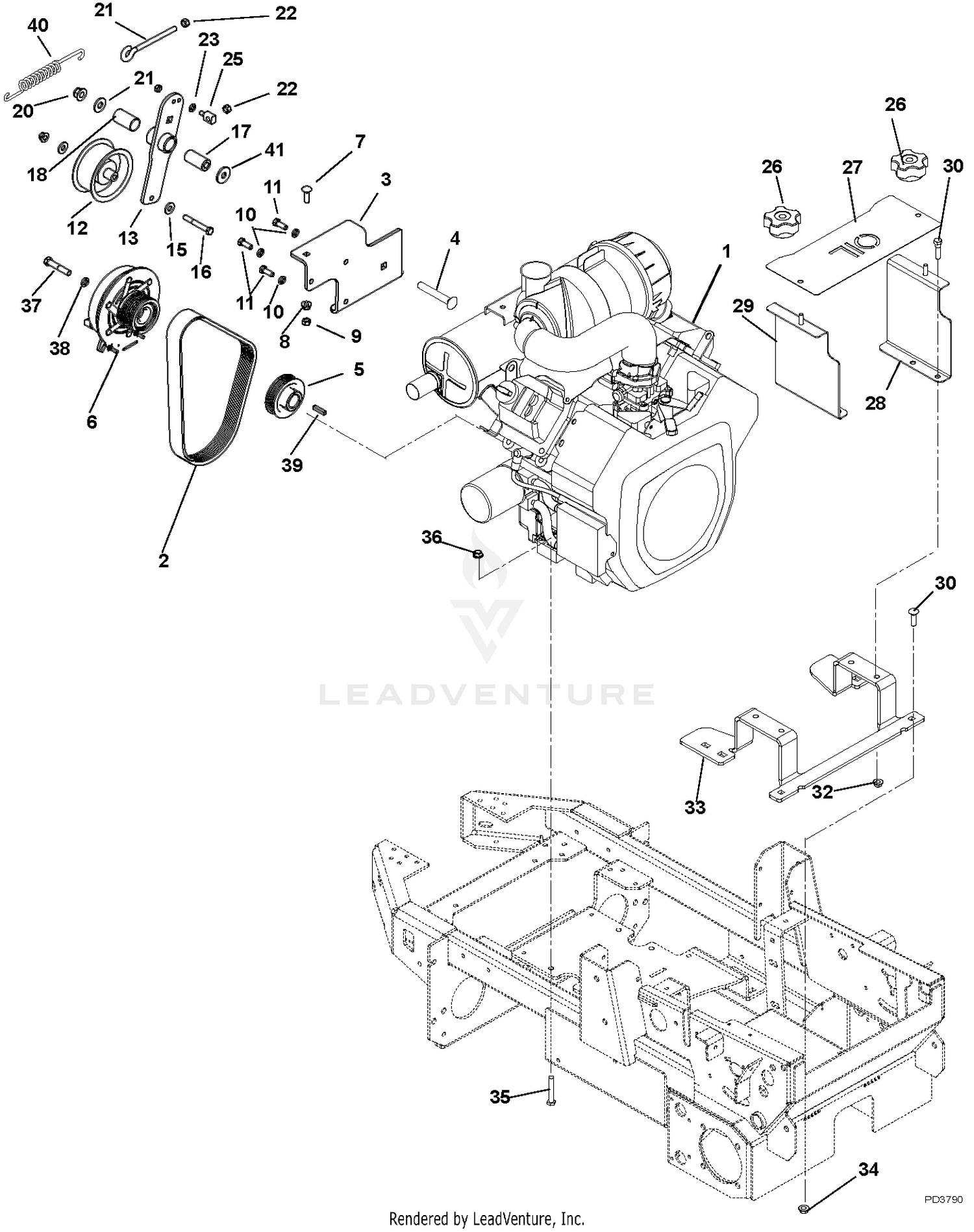

| Ref | Part Number | Description |
|---|
| 1 |
08200145 |
ENGINE KOHLER 30 HP HORZ Price: Call Us |
| 2 |
07200602 |
BELT,8 RIB POLY V,L-SECTION Price: $85.95 |
| 3 |
00667451 |
BRKT, PTO IDLER MTG. Price: $36.95 |
| 4 |
06200317 |
BLT, RHSN .50-13X3.50 G5 ZCC This part replaces 06225000. Price: $5.45 |
| 5 |
07300041 |
SHEAVE - POLY-V 1.127 X 3.275 Price: $83.95 |
| 6 |
04312000 |
CLUTCH,8 GRV POLY V,L-SECTION Price: $764.95 |
| 7 |
06200415 |
BLT, RHSN .38-16X1.25 G5 ZCC This part replaces 06224100. Price: $2.45 |
| 8 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45 |
| 9 |
06500825 |
NUT-LK-CTR .38-16 ZC120 This part replaces 06529600. Price: $0.95 |
| 10 |
06300116 |
WSHR-LK-REG .375X.094 ZCC This part replaces 06308800. Price: $0.95 |
| 11 |
05901711 |
BLT-HEX .38-16X1.00 G5 ZCC This part replaces 05948700. Price: $1.45 |
| 13 |
00652700 |
ASM, IDLER PIVOT ASM Price: $139.95 |
| 15 |
06401008 |
WSHR-FLT .438X1.00X.083 ZCC This part replaces 06435900. Price: $1.45 |
| 16 |
05901611 |
BLT, HEX .38-16X2.75 G5 ZCC This part replaces 05961400. Price: $3.95 |
| 17 |
01581700 |
BSHG, SPCR .502X.997X2.03 PM Price: $5.95 |
| 19 |
06401015 |
WSHR,FLT .531X1.062X.095 ZCC This part replaces 06430200. Price: $0.95 |
| 20 |
06500810 |
NUT,NYL-FLG .50-13 GF ZCC This part replaces 06500010. Price: $1.45 |
| 21 |
07001701 |
BOLT,EYE .38-16X4.50,.75"EYE Price: $12.45 |
| 22 |
06500917 |
NUT-STD .375-16 G2 ZCC This part replaces 06529400. Price: $0.95 |
| 23 |
06401017 |
WSHR,FLT .344X.688X.065 ZCC This part replaces 06437200. Price: $0.45 |
| 24 |
06500826 |
NUT,LK-CTR .31-18 GA ZCC This part replaces 06529800. Price: $1.45 |
| 25 |
09267300 |
PIN, PIVOT/TRUNNION Price: $6.45 |
| 26 |
07534800 |
KNOB-CLAMPING, .312-18 NYLOC Price: $3.45 |
| 27 |
00865151 |
SHROUD, COOLING Price: $27.45 |
| 28 |
00866951 |
BRACKET, TANK SHROUD (LH) Price: $35.95 |
| 29 |
00867051 |
BRACKET, TANK SHROUD (RH) Price: $33.95 |
| 30 |
05901928 |
BLT, HEX .38-16X1.50 G5 ZCC This part replaces 05957900. Price: $1.45 |
| 31 |
06200313 |
BLT, RHSN .38-16X1.00 G5 ZCC This part replaces 06223600. Price: $2.45 |
| 32 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45 |
| 33 |
00682451 |
MOUNT, HYDRAULIC TANK Price: $64.95 |
| 34 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45 |
| 35 |
05901640 |
BLT,HEX .38-16X2.25 G5 ZCC This part replaces 05962900. Price: $3.95 |
| 36 |
06500822 |
NUT-LK-TOP-FLG .38-16 ZC120 This part replaces 06542000. Price: $0.95 |
| 37 |
05900040 |
BLT-HEX .44-20X2.25 G5 YZ EP80 Price: $6.45 |
| 38 |
06300121 |
WSHR, LK-REG .438X.109 ZCC This part replaces 06309300. Price: $2.45 |
| 39 |
06603400 |
KEY-SQ .25 X 1.25 X .25 SAE Price: $3.45 |
| 40 |
08321200 |
SG-TENS .135X.69X5.75 WLD 150 Price: $19.95 |
