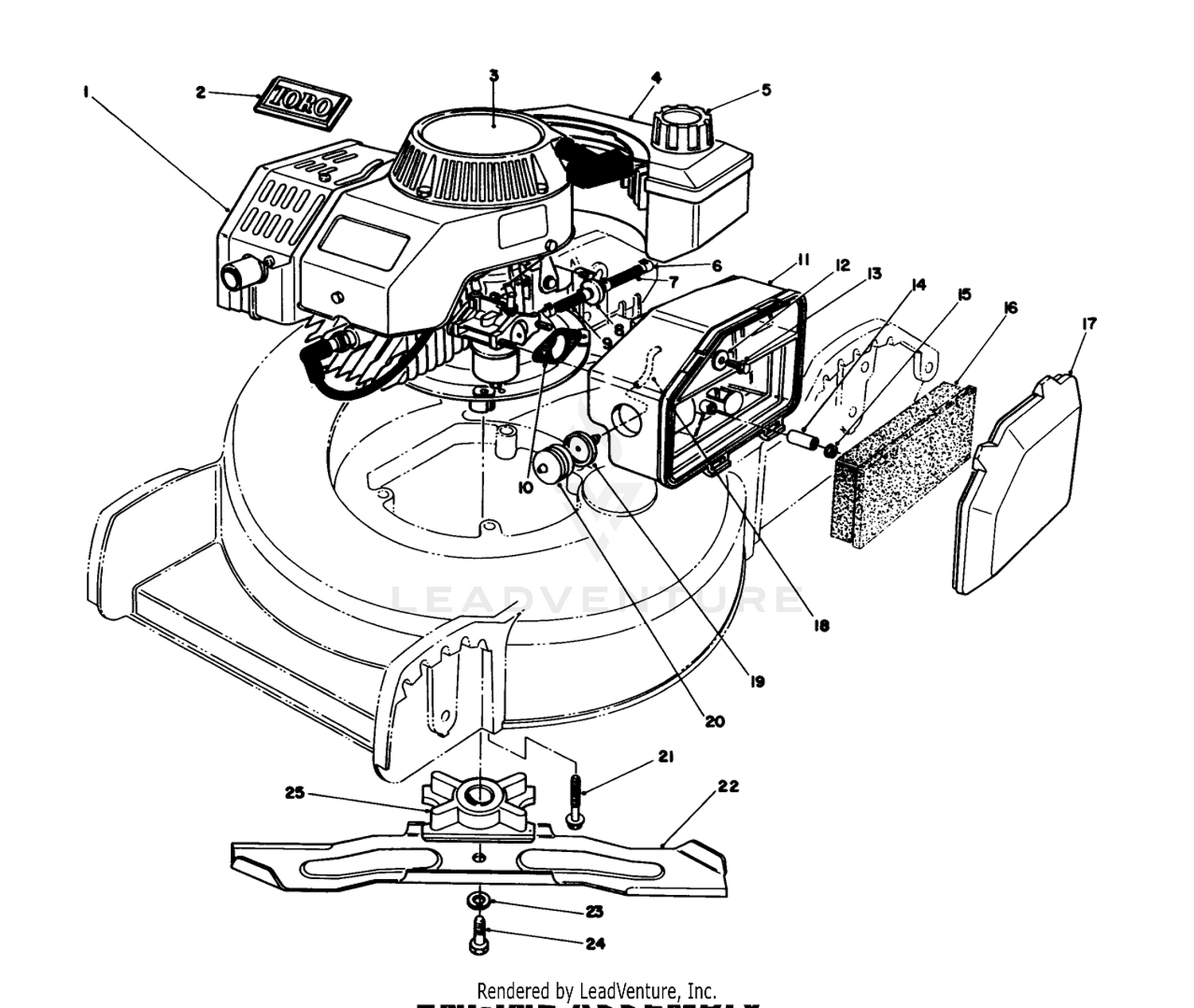

Engine Assembly (used On Units With Serial No. 8000402 Up)

Engine Assembly (used On Units With Serial No. 8000402  Up)

Parts (24)

RefPart NumberDescription
1 12-8099 ENGINE SHORT BLOCK This part replaces 51-0413. Price: Call Us
2 98-3206 DECAL This part replaces 46-8290. Price: $1.99
3 57-3110 DECAL- 2 CYC RECOIL Price: $10.14
4 99-5263 DISCONTINUED This part replaces 81-0042. Price: Call Us
5 55-3575 GAS CAP ASM Price: $12.03
6 2412-95 CLAMP-FUEL LINE Price: $0.93
7 51-3215 HOSE-FUEL Price: $2.38
8 56-6360 FILTER-FUEL Price: $5.79
9 51-3216 HOSE-FUEL Price: $2.64
10 81-0090 GASKET-AIR CLEANER Price: $4.37
11 63-9330 BODY-AIR CLEANER Price: Call Us
12 3256-16 WASHER-FLAT Price: $0.39
13 51-2690 SCREW-HH Price: $1.24
14 62-3980 SPACER Price: $1.65
15 50-7180 NUT Price: $3.48
16 63-9380 ELEMENT-AIR CLEANER Price: $8.74
17 63-9340 COVER-AIR CLEANER Price: $32.52
18 44-3172 HOSE-PRIMER Price: $3.63
19 44-2750 BODY-PRIMER Price: $6.55
20 66-7460 BULB-PRIMER This part replaces 44-3100. Price: $3.05
21 3234-24 SCREW-HHF Price: $3.19
22 33-0490-03 BLADE-18" This part replaces 33-0490. Price: $24.06
23 3253-22 WASHER-LOCK Price: $2.09
24 26-0671 SCREW-HH Price: $7.99
