| Ref | Part Number | Description |
|---|
| 1 |
106-8059 |
KIT-ENGINE KUBOTA This part replaces 108-1361. Price: $9,147.51 |
| 1 |
532133742 |

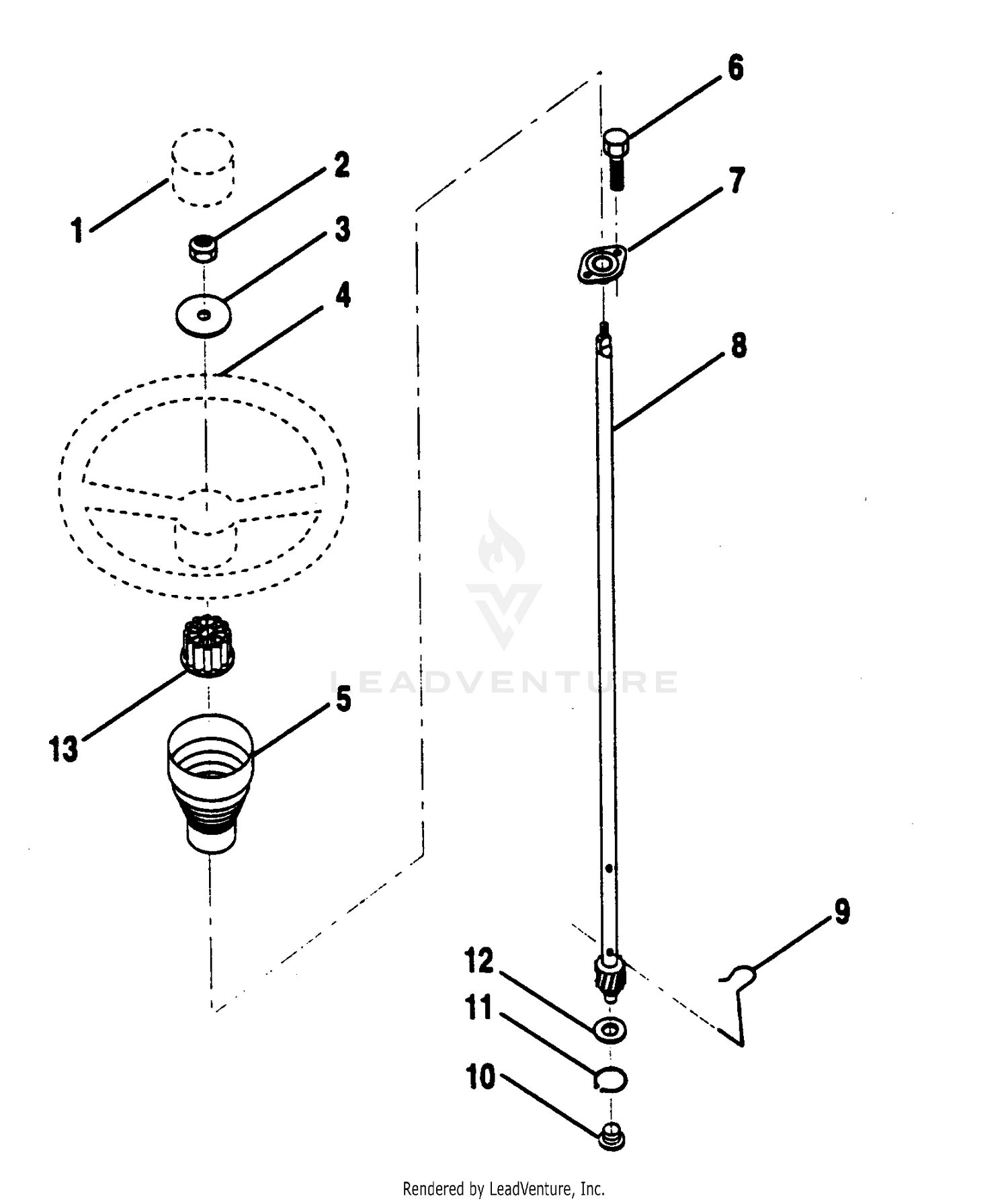

Insert, Wheel, Steering Price: $5.99 |
| 2 |
104-3494 |
BELT-V Price: $29.84 |
| 2 |
873680600 |
Nut This part replaces 532124701. Price: $1.99 |
| 3 |
104-1723 |
ADAPTER-FRONT DRIVE Price: $186.52 |
| 3 |
819133812 |
Washer 13/32 x 2 3/8 x 12 Ga. This part replaces 819133808. Price: $9.99 |
| 4 |
3274-106 |
SCREW-HSH Price: $5.77 |
| 4 |
532133741 |
Wheel, Steering Price: $107.99 |
| 5 |
33103-020 |
SCREW-HHF Price: $2.16 |
| 5 |
532121897 |
Sleeve, Steering Price: $8.99 |
| 6 |
104-4246 |
FAN-ENGINE Price: $154.04 |
| 6 |
817211008 |
Screw, Hex Wsh. Tap #10-16 x 1/2 This part replaces 817431008. Price: $2.99 |
| 7 |
108-2872 |
COLLAR-FAN This part replaces 104-4247. Price: $21.29 |
| 7 |
532155107 |
STEERING BUSHING KIT This part replaces 532102803. Price: $3.99 |
| 8 |
104-3497 |
PULLEY-FAN Price: $25.58 |
| 8 |
532148966 |
SHAFT STEERING This part replaces 532123651. Price: $100.99 |
| 9 |
105-2556-03 |
BRACE-ALTERNATOR, UPPER Price: $60.30 |
| 9 |
532124210 |
Clip, Steering Price: $3.99 |
| 10 |
33004-00 |
NUT-HF Price: $0.34 |
| 10 |
532123438 |
Bushing, Lower, Steering Price: $3.99 |
| 11 |
108-1363 |
MUFFLER-EXHAUST Price: $518.88 |
| 11 |
812000045 |
Ring, Retaining Price: $3.99 |
| 12 |
819211616 |
Washer 21/32 x 1 x 16 Ga. Price: $3.99 |
| 12 |
99-8343 |
GASKET-MUFFLER This part replaces 98-9611. Price: $14.99 |
| 13 |
112-0183 |
SWITCH-THERMOMETER This part replaces 108-8682. Price: $110.70 |
| 14 |
99-3583 |
GASKET Price: $1.92 |
| 16 |
106-4381-03 |
SHAFT-TENSION, PTO Price: $290.36 |
| 17 |
3230-4 |
BOLT-CARR Price: $0.47 |
| 18 |
92-8799 |
BEARING-FLANGE Price: $126.15 |
| 19 |
32149-1 |
NUT-KEPS Price: $5.59 |
| 20 |
32121-32 |
PIN-ROLL Price: $1.34 |
| 21 |
117-0841 |
LH REAR ENGINE MOUNT ASM This part replaces 104-3417. Price: $329.16 |
| 22 |
43-0090 |
SCREW-HH Price: $8.05 |
| 23 |
48-9590 |
WASHER-LOCK This part replaces 42-9600. Price: $0.25 |
| 24 |
117-0831-03 |
MOUNT-ENGINE, LH FRONT This part replaces 104-1702-03. Price: $82.72 |
| 25 |
3-4324 |
WASHER-FLAT Price: $1.22 |
| 26 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 27 |
43-5930 |
WASHER-LOCK, SPRING Price: $0.75 |
