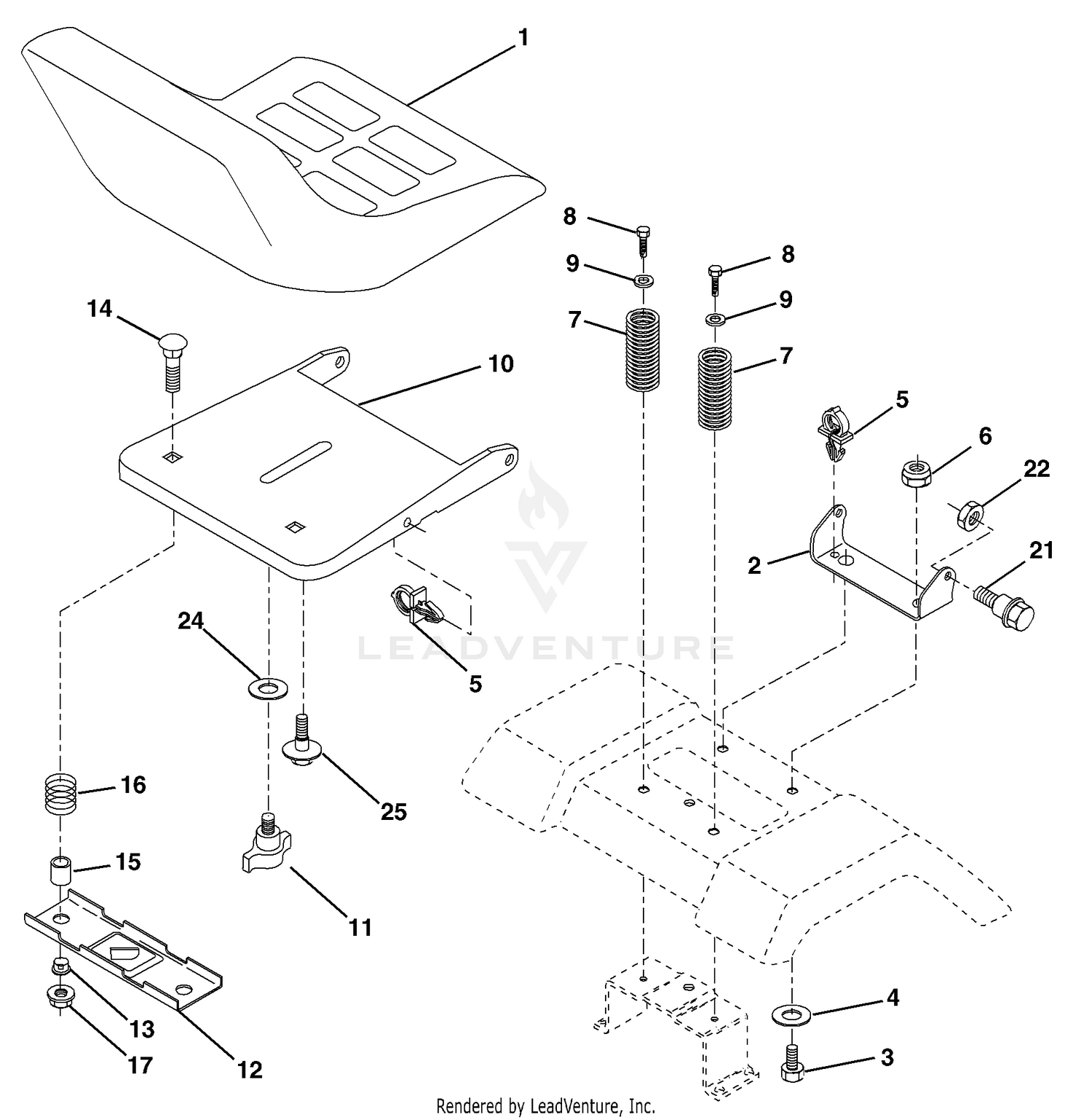

| Ref | Part Number | Description |
|---|
| 1 |
171683 |
Seat Price: Call Us |
| 1 |
62-7400 |
DECAL Price: $24.54 |
| 2 |
140551 |
Bracket Pnt Pivot Seat (blk) Price: Call Us |
| 2 |
46-6810 |
SCREW AND WASHER ASM Price: $3.49 |
| 3 |
71110616 |
Bolt Price: Call Us |
| 3 |
76-9700-01 |
COVER-TOWER Price: $240.24 |
| 4 |
19131610 |
Washer 13/32 x 1 x 10 Ga Price: Call Us |
| 4 |
84-1080 |
FRAME WA (TRK) Price: $5,191.33 |
| 4 |
98-7826 |
Frame (only on:30455) Price: Call Us |
| 5 |
145006 |
Clip Push-In Hinged Price: Call Us |
| 5 |
93-6697 |
DECAL-LUBE This part replaces 70-2560. Price: $11.38 |
| 6 |
68-7573 |
STRIP-SEALING Price: $8.09 |
| 6 |
73800600 |
Nut Price: Call Us |
| 7 |
124181X |
Spring Seat Cprsn 2 250 Blk Zi Price: Call Us |
| 7 |
94-5601-03 |
SUPPORT-TANK, LOWER Price: $106.64 |
| 8 |
17000616 |
Screw 3/8-16 x 1.5 Price: Call Us |
| 8 |
76-6360 |
DISCONTINUED Price: Call Us |
| 9 |
19131614 |
Washer 13/32 x 1 x 14 Ga Price: Call Us |
| 9 |
93-7236-03 |
SUPPORT-CLEANER, AIR ASM Price: $284.90 |
| 10 |
182493 |
Pan Pnt Seat (blk) Price: Call Us |
| 10 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 11 |
166369 |
Knob Price: Call Us |
| 11 |
3256-78 |
WASHER-FLAT Price: $1.21 |
| 12 |
121246X |
Bracket Pnt Mounting Switch Price: Call Us |
| 12 |
93-9426 |
DECAL-DANGER Price: $7.18 |
| 13 |
121248X |
Bushing Snap Blk Nyl 50 Id Price: Call Us |
| 14 |
65-5100 |
HANDLE-DOOR Price: $9.05 |
| 14 |
72050412 |
Bolt Rdhd Sht Nk 1/4-20 x 1-1/2 Price: Call Us |
| 15 |
134300 |
Spacer Split 28 x 96 Yel Zinc Price: Call Us |
| 15 |
46-8091 |
SCREW-HWH Price: $3.59 |
| 16 |
121250X |
Spring Cprsn 1 27 Blk Pnt Price: Call Us |
| 16 |
83-1470 |
WASHER-NEOPRENE Price: $1.97 |
| 17 |
123976X |
Nut Lock 1/4 Lge Flg Gr 5 Zinc Price: Call Us |
| 17 |
323-6 |
SCREW-HH Price: $0.66 |
| 18 |
93-7798 |
HOOD ASM Price: $3,496.28 |
| 19 |
3290-467 |
PIN-HAIR Price: $0.27 |
| 20 |
94-5613 |
STOP-RUBBER Price: $8.22 |
| 21 |
171852 |
Bolt Shoulder 5/16-18 Unc Blkz-2A Price: Call Us |
| 21 |
84-1490-01 |
LATCH-LOCKUP Price: $62.64 |
| 22 |
325-5 |
SCREW-HH Price: $1.20 |
| 22 |
73800500 |
Nut Price: Call Us |
| 23 |
48-7081 |
GRIP-PLASTIC Price: $7.54 |
| 23 |
71110814 |
Bolt Hex Black Price: Call Us |
| 24 |
19171912 |
Washer 17/32 x 1-3/16 x 12 Ga Price: Call Us |
| 25 |
32151-72 |
RING-RETAINING Price: $1.59 |
| 27 |
32121-11 |
PIN-ROLL Price: $0.47 |
| 28 |
3290-359 |
SCREW-HWH Price: $6.23 |
| 29 |
94-5626 |
FLEXIBLE DRAW LATCH ASM Price: $42.59 |
| 30 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 31 |
3290-483 |
WASHER-CONICAL Price: $7.61 |
| 32 |
3296-25 |
NUT-LOCK, NI Price: $1.34 |
| 33 |
80-7730 |
SPACER Price: $1.97 |
| 34 |
76-6361 |
STRIP-SEALING Price: $25.24 |
| 35 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 36 |
3234-12 |
SCREW-HHF Price: $0.61 |
| 37 |
94-5609-03 |
COVER-HOOD, LOWER Price: $403.69 |
| 38 |
323-4 |
SCREW-HH Price: $1.02 |
| 39 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 40 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 41 |
76-9300-01 |
FENDER-LH Price: $724.69 |
| 42 |
76-9340-01 |
FENDER-RH Price: $760.39 |
| 43 |
88-1310 |
STRIP-FOAM, COVER Price: $24.15 |
| 44 |
74-4090 |
TREAD-REST, FOOT Price: $46.79 |
| 45 |
3231-22 |
SCREW-CARR Price: $0.72 |
| 46 |
3250-36 |
SCREW-PPH Price: $2.41 |
| 47 |
100-2596-03 |
COVER-SEAT, FRONT Price: $38.09 |
