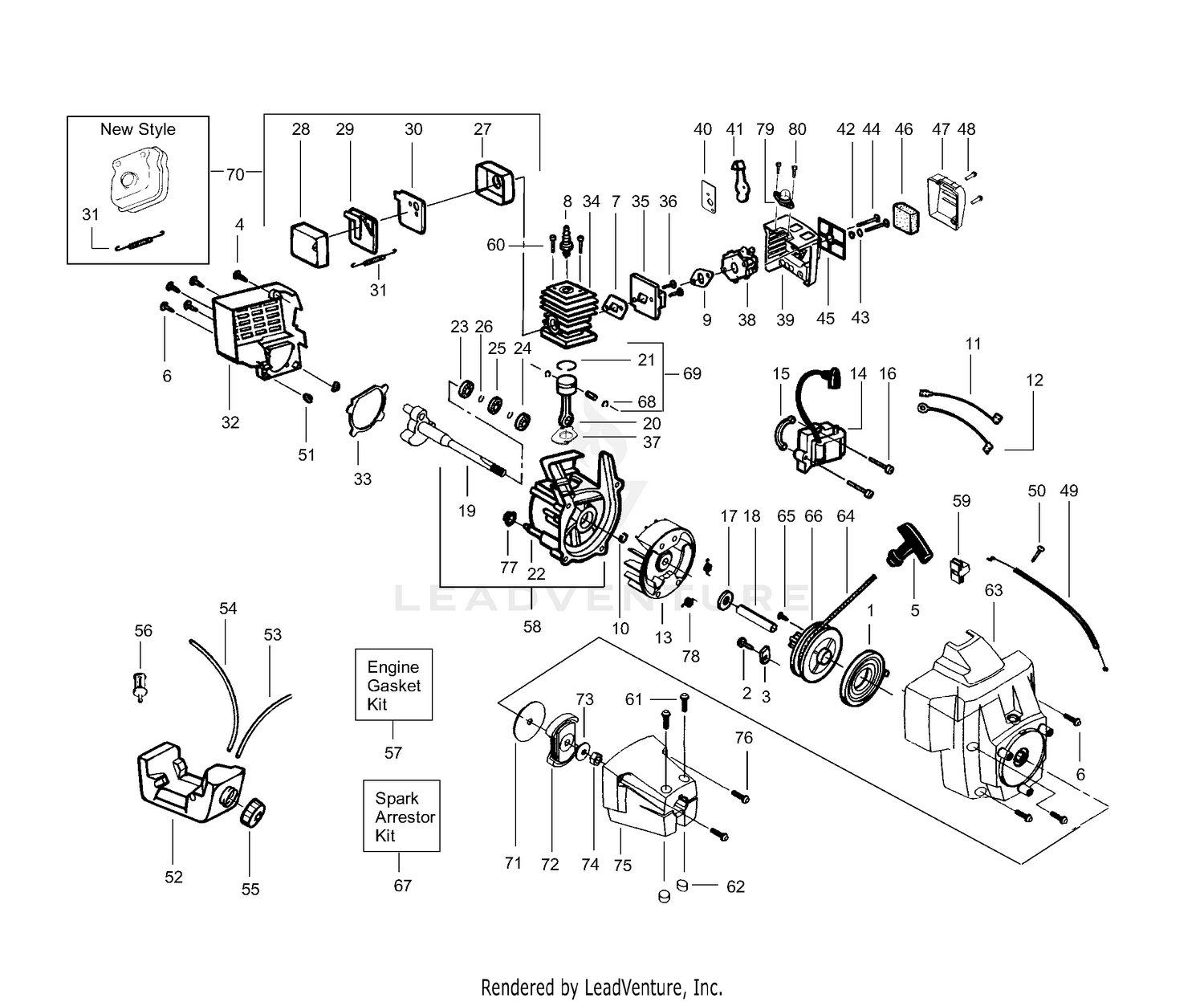

Internal Assembly
Parts (125)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 38-3280 | DISCONTINUED Price: Call Us |
| 1 | 545008010 | STARTER SPRING This part replaces 530042085. Price: $3.99 |
| 2 | 38-3260 | DISCONTINUED Price: Call Us |
| 2 | 530015775 | Screw Price: $1.99 |
| 3 | 237-7 | O-RING Price: $8.82 |
| 3 | 530027523 | Retainer Price: $2.99 |
| 4 | 38-3390 | DISCONTINUED Price: Call Us |
| 4 | 530015934 | Screw Price: $1.99 |
| 5 | 28-4250 | NEUTRAL SWITCH Price: $37.99 |
| 5 | 530027569 | Starter Handle Price: $1.99 |
| 6 | 39-9200 | DISCONTINUED Price: Call Us |
| 6 | 530016386 | SCREW This part replaces 530015810. Price: $5.99 |
| 7 | 39-9210 | DISCONTINUED Price: Call Us |
| 7 | 530019233 | Cylinder Gasket Price: $1.99 |
| 8 | 39-9220 | DISCONTINUED Price: Call Us |
| 8 | 503235112 | Spark Plug This part replaces 952030201. Price: $5.99 |
| 9 | 39-9230 | DISCONTINUED Price: Call Us |
| 9 | 530035421 | Gasket Price: $1.99 |
| 10 | 3296-2 | NUT-LOCK, NI Price: $1.89 |
| 10 | 530015941 | Retainer Price: $1.99 |
| 11 | 353-704 | DISCONTINUED Price: Call Us |
| 11 | 530014663 | Lead Wire Price: $5.99 |
| 12 | 38-3270 | DISCONTINUED Price: Call Us |
| 12 | 581425901 | SWITCH, GROUND WIRE This part replaces 530014662. Price: $1.99 |
| 13 | 3290-134 | SCREW Price: $0.27 |
| 13 | 545221701 | FLYWHEEL ASSY This part replaces 530069886. Price: $8.99 |
| 14 | 39-9260 | DISCONTINUED Price: Call Us |
| 14 | 530039163 | Ignition Module Price: $34.99 |
| 15 | 39-9270 | DISCONTINUED Price: Call Us |
| 15 | 530036145 | Spacer Price: $1.99 |
| 16 | 39-9280 | DISCONTINUED Price: Call Us |
| 16 | 530015954 | Screw Price: $1.99 |
| 17 | 39-9240 | DISCONTINUED Price: Call Us |
| 17 | 530015149 | Washer Price: $1.99 |
| 18 | 39-9250 | DISCONTINUED Price: Call Us |
| 18 | 530037705 | Spacer Price: $5.99 |
| 19 | 39-9290 | DISCONTINUED Price: Call Us |
| 19 | 530014864 | Crankshaft Ass'y. Price: $14.99 |
| 20 | 39-9300 | DISCONTINUED Price: Call Us |
| 20 | 530069615 | Connecting Rod Ass'y. Price: $14.99 |
| 21 | 39-9310 | DISCONTINUED Price: Call Us |
| 21 | 545154001 | RING PISTON This part replaces 530049903. Price: $1.99 |
| 22 | 39-9320 | DISCONTINUED Price: Call Us |
| 22 | 530014861 | Crankcase Ass'y. Price: $37.77 |
| 23 | 39-9330 | DISCONTINUED Price: Call Us |
| 23 | 530032125 | Inner Bearing Price: $11.99 |
| 24 | 39-9340 | DISCONTINUED Price: Call Us |
| 24 | 530032124 | Outer Bearing Price: $4.99 |
| 25 | 39-9350 | DISCONTINUED Price: Call Us |
| 25 | 530019179 | C'case Seal Price: $2.99 |
| 26 | 39-9360 | DISCONTINUED Price: Call Us |
| 26 | 530015945 | Retaining Ring Price: $1.99 |
| 27 | 39-9370 | DISCONTINUED Price: Call Us |
| 27 | 530036578 | Muffler Body Price: $2.99 |
| 28 | 39-9380 | DISCONTINUED Price: Call Us |
| 28 | 530036577 | Muffler Cover Price: $2.99 |
| 29 | 39-9390 | DISCONTINUED Price: Call Us |
| 29 | 530053500 | Muffler Baffle-Exit Price: $0.99 |
| 30 | 39-9400 | DISCONTINUED Price: Call Us |
| 30 | 530053499 | Muffler Baffle-First Price: $1.99 |
| 31 | 39-9410 | DISCONTINUED Price: Call Us |
| 31 | 530016197 | Muffler Spring Old Style Price: $1.99 |
| 31 | 530042088 | Muffler Spring New Style Price: $1.99 |
| 32 | 39-9420 | DISCONTINUED Price: Call Us |
| 32 | 530049233 | Shroud Price: $3.33 |
| 33 | 39-9430 | DISCONTINUED Price: Call Us |
| 33 | 530019181 | Gasket Price: $1.99 |
| 34 | 32128-29 | NUT-LOCK, FLANGE Price: $1.63 |
| 34 | 530012416 | Cylinder This part replaces 530069757. Price: $17.99 |
| 35 | 3217-7 | NUT-HEX Price: $0.28 |
| 35 | 530071250 | Carb. Adaptor Kit Price: $5.99 |
| 36 | 323-4 | SCREW-HH Price: $1.02 |
| 36 | 530015849 | Screw Price: $1.99 |
| 37 | 323-8 | SCREW-HH Price: $1.20 |
| 37 | 530019223 | Gasket Price: $1.99 |
| 38 | 39-9440 | DISCONTINUED Price: Call Us |
| 39 | 39-9450 | DISCONTINUED Price: Call Us |
| 39 | 530037969 | Air Box Price: $3.99 |
| 40 | 39-9460 | DISCONTINUED Price: Call Us |
| 40 | 530037326 | Choke Plate Price: $1.99 |
| 41 | 39-9470 | DISCONTINUED Price: Call Us |
| 41 | 530038102 | Choke Shutter Price: $1.99 |
| 42 | 39-9480 | DISCONTINUED Price: Call Us |
| 42 | 530015254 | Wave Washer Price: $1.99 |
| 43 | 39-9490 | DISCONTINUED Price: Call Us |
| 43 | 530015852 | Choke Spacer Price: $1.99 |
| 44 | 39-9500 | DISCONTINUED Price: Call Us |
| 44 | 530015849 | Screw Price: $1.99 |
| 45 | 39-9510 | DISCONTINUED Price: Call Us |
| 45 | 530037413 | Filter Plate Price: $1.99 |
| 46 | 39-9520 | DISCONTINUED Price: Call Us |
| 46 | 530037331 | Air Filter Foam Price: $1.99 |
| 47 | 39-9530 | DISCONTINUED Price: Call Us |
| 47 | 530037292 | Air Filter Cover Price: $1.99 |
| 48 | 39-9540 | DISCONTINUED Price: Call Us |
| 48 | 530015957 | Screw Price: $1.99 |
| 49 | 39-9550 | DISCONTINUED Price: Call Us |
| 49 | 530037415 | Throttle Cable Ass'y. Price: $4.99 |
| 50 | 18-2970 | CLIP-FUEL LINE Price: $8.67 |
| 50 | 530015814 | Screw Price: $1.99 |
| 51 | 39-9190 | DISCONTINUED Price: Call Us |
| 51 | 530036793 | Isolator-Shroud Price: $5.99 |
| 52 | 530049413 | Fuel Tank Ass'y. Price: $14.99 |
| 53 | 530069216 | Fuel Line-Primer/Tank Price: $3.99 |
| 54 | 530069247 | Fuel Line-Carb/Tank Price: $3.99 |
| 55 | 530014347 | Fuel Cap Ass'y. Price: $4.99 |
| 59 | 530069572 | Switch Kit Price: $4.99 |
| 60 | 530015953 | Screw Price: $1.99 |
| 61 | 530015767 | Screw Price: $1.99 |
| 62 | 530015768 | Locknut Price: $1.99 |
| 63 | 530049857 | Fan Housing Price: $12.99 |
| 64 | 530069232 | Rope Kit Price: $3.99 |
| 65 | 530016080 | Screw Price: $1.99 |
| 66 | 530071786 | STARTER PULLEY KIT This part replaces 530069400. Price: $3.99 |
| 67 | 530069380 | Spark Arrestor Kit Old Style Price: $3.99 |
| 67 | 530071290 | Spark Arrestor Kit New Style Price: $7.99 |
| 68 | 530015162 | Piston Pin Retainer Price: $1.99 |
| 71 | 530015611 | Washer Price: $1.99 |
| 72 | 530069491 | Clutch Ass'y. Price: $7.99 |
| 73 | 530015828 | Washer Price: $1.99 |
| 74 | 530626605 | Nut Price: $1.99 |
| 75 | 530014923 | Clutch Hsg. Price: $22.99 |
| 76 | 530015886 | Screw Price: $1.99 |
| 78 | 530023817 | Starter Spring Price: $1.99 |
| 79 | 530038874 | Bulb Ass'y. Price: $5.99 |
