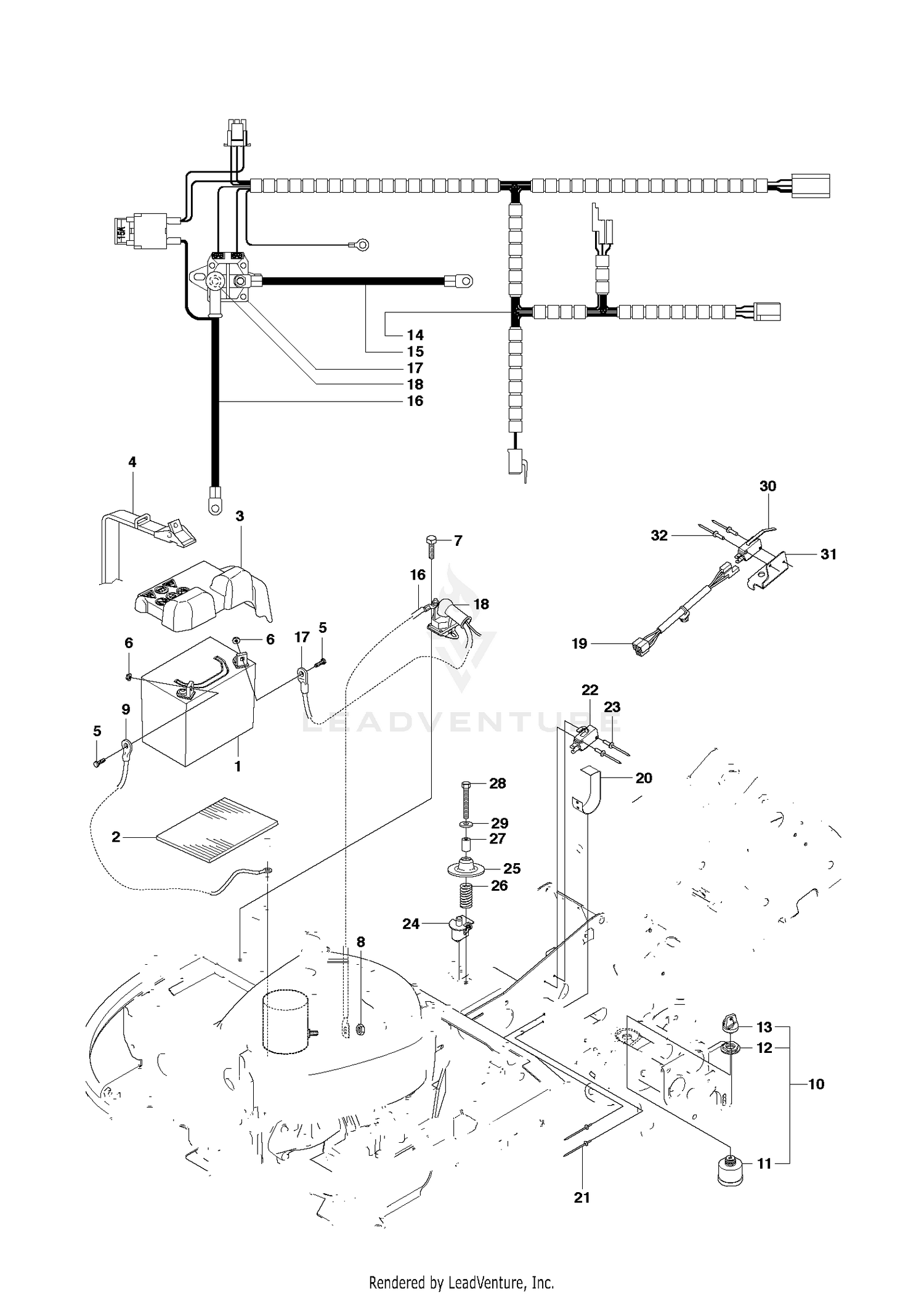

ELECTRICAL
Parts (53)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 104-2541 | SWITCH ASM Price: $36.70 |
| 1 | 510138501 | Price: Call Us |
| 2 | 110-8254 | DECAL-START, CONTROL PANEL Price: $41.66 |
| 2 | 535441101 | MAT Price: $8.55 |
| 3 | 510026901 | Price: Call Us |
| 4 | 506836802 | BELT Price: $9.99 |
| 5 | 522622101 | SCREW EHHM Price: $2.99 |
| 5 | 63-8360 | KEY-IGNITION Price: $5.29 |
| 6 | 3234-13 | SCREW-HHF Price: $0.77 |
| 6 | 522624301 | NUT Price: $2.99 |
| 7 | 100-8071 | LAMP-WARNING Price: $38.50 |
| 7 | 725236461 | SCREW Price: $2.99 |
| 8 | 100-8070 | LAMP-WARNING Price: $38.50 |
| 8 | 506899801 | NUT Price: $2.99 |
| 9 | 544967603 | Price: Call Us |
| 10 | 233-42 | KNOB Price: $12.88 |
| 10 | 544442101 | IGNITION SWITCH Price: $24.99 |
| 11 | 110-5547 | LEVER-CONTROL Price: $33.17 |
| 11 | 544442201 | IGNITION SWITCH Price: $17.99 |
| 12 | 32105-13 | SCREW-HWH Price: $1.59 |
| 12 | 544442301 | NUT Price: $2.99 |
| 13 | 120-2244 | HOURMETER This part replaces 1-513374. Price: $48.06 |
| 13 | 544442401 | IGNITION KEY Price: $6.99 |
| 14 | 110-8253 | DECAL-PANEL, CONTROL Price: $93.51 |
| 14 | 544926301 | WIRING Price: $49.99 |
| 15 | 110-8256-03 | PANEL-CONTROL Price: $73.31 |
| 15 | 544928601 | CABLE Price: $9.99 |
| 16 | 3296-2 | NUT-LOCK, NI Price: $1.89 |
| 16 | 544926104 | Price: Call Us |
| 17 | 544439801 | RELAY Price: $17.99 |
| 17 | 93-9999 | SWITCH-PTO Price: $42.99 |
| 18 | 110-5548 | CABLE-THROTTLE Price: $29.39 |
| 18 | 506899801 | NUT Price: $2.99 |
| 19 | 110-8257-03 | COVER-PANEL, CONTROL Price: $54.38 |
| 19 | 544892201 | WIRING This part replaces 576185401. Price: $22.99 |
| 20 | 506909301 | SPRING Price: $6.99 |
| 20 | 74-5950 | LATCH-SWELL Price: $21.28 |
| 21 | 32-1140 | DISCONTINUED This part replaces 321-13. Price: $2.04 |
| 21 | 722783902 | Rivet Price: $1.99 |
| 22 | 106-9277 | MODULE-CONTROL, STANDARD Price: $475.18 |
| 22 | 574316001 | SWITCH This part replaces 535469101. Price: $11.99 |
| 23 | 104-7201 | NUT-HF Price: $0.69 |
| 23 | 544440701 | RIVET Price: $2.99 |
| 24 | 506909601 | SWITCH Price: $14.99 |
| 24 | 98-7611 | CONTROLLER-GLOW This part replaces 107-9097. Price: $316.53 |
| 25 | 110-9796 | DECAL-BLOCK, FUSE Price: $25.29 |
| 25 | 506909701 | WASHER Price: $12.99 |
| 26 | 544441201 | SPRING Price: $4.99 |
| 27 | 506909902 | SPACER TUBE Price: $3.99 |
| 28 | 725246351 | SCREW This part replaces 725246051. Price: $4.99 |
| 30 | 574316101 | MICRO SWITCH This part replaces 544415501. Price: $11.99 |
| 31 | 544415701 | BRACKET Price: $4.99 |
| 32 | 544440701 | RIVET Price: $2.99 |
