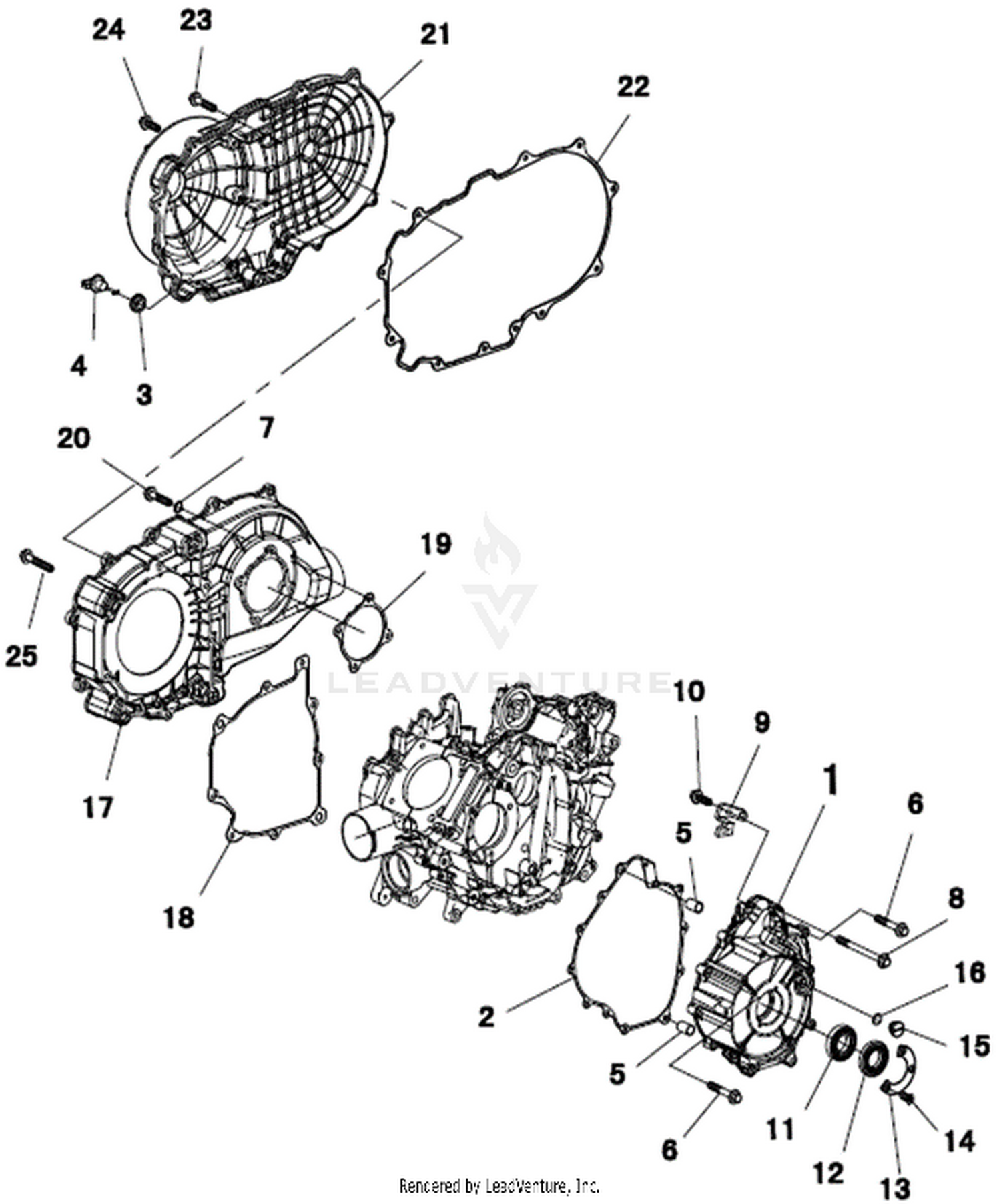

| Ref | Part Number | Description |
|---|
| 1 |
503-01050 |
LEFT CRANKCASE COVER Price: $352.03 |
| 2 |
503P01051 |
LEFT CRANKCASE COVER GASKET This part replaces 503-01051. Price: $29.68 |
| 3 |
503-01052 |
DAMPER Price: $8.97 |
| 4 |
503-01053 |
CLUTCH COVER PLUG Price: $8.70 |
| 5 |
503-00928 |
DOWEL PIN 10X16 Price: $5.36 |
| 6 |
503-01021 |
HEX FLANGE BOLTS M6X30 Price: $5.26 |
| 7 |
503-01054 |
SPRING WASHER Not Available Price: |
| 8 |
503-01023 |
HEX FLANGE BOLTS M6X40 Price: $5.26 |
| 9 |
503-01055 |
STATOR WIRE GUARD PLATE Price: $8.10 |
| 10 |
503-00921 |
HEX FLANGE BOLT M6X12 Price: $5.36 |
| 11 |
503-01056 |
BEARING 60/28 Price: $82.38 |
| 12 |
503-01057 |
OIL SEAL 28X52X8.5 Price: $30.44 |
| 13 |
503-01058 |
OIL SEAL PRESS PLATE Price: $6.26 |
| 14 |
503-01059 |
CROSS RECESSED COUNTERSUNK SCREW Price: $5.36 |
| 15 |
503-00931 |
SMALL PEEP HOLE COVER Price: $7.17 |
| 16 |
503-00932 |
O-RING 13.4X2.35 Price: $17.60 |
| 17 |
503-01060 |
INNER CLUTCH COVER Price: $81.23 |
| 18 |
503-01061 |
CLUTCH INNER COVER SEAL Price: $40.60 |
| 19 |
503-01062 |
CLUTCH INNER COVERSEAL Price: $40.60 |
| 20 |
503-01039 |
HEX FLANGE BOLTS M6X32 Price: $5.26 |
| 21 |
503-01063 |
OUTER CLUTCH COVER Price: $85.98 |
| 22 |
503-01064 |
CLUTCH COVER SEAL Price: $88.16 |
| 23 |
503-01065 |
HEX FLANGE BOLTS M6X25 Price: $5.36 |
| 24 |
503-01066 |
HEX FLANGE BOLTS M6X16 Price: $5.36 |
