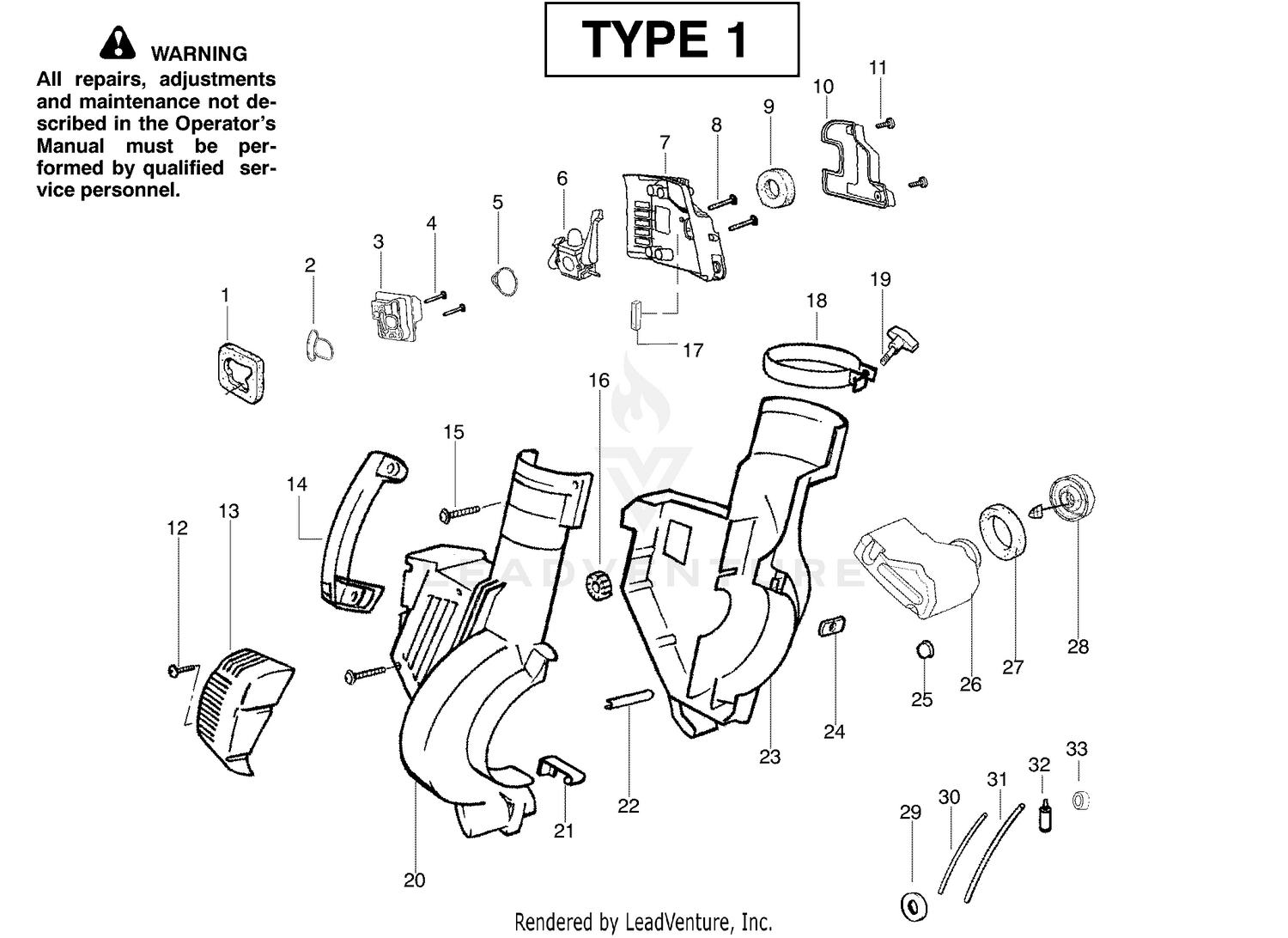

Housing Assembly Type 1
Parts (51)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 110-0641 | COLLAR-HOC Price: $58.06 |
| 1 | 530071459 | Air Dam (Kit) Price: $4.99 |
| 2 | 107-7915 | WASHER-THRUST Price: $1.97 |
| 2 | 530071458 | Gasket-Adapter (Kit) Price: $5.99 |
| 3 | 3290-256 | PIN-HAIR Price: $1.01 |
| 3 | 530035502 | Carburetor Adaptor Price: $1.24 |
| 4 | 107-7904 | PIN-CLEVIS Price: $36.06 |
| 4 | 530016309 | Screw Price: $1.99 |
| 5 | 325-12 | SCREW-HH Price: $2.27 |
| 5 | 530071458 | Gasket-Carburetor (Kit) Price: $5.99 |
| 6 | 3296-45 | NUT-HEX Price: $3.79 |
| 6 | 530071465 | Kit-Carb Ass'y. (C1Q-W11) Price: $19.40 |
| 7 | 105-2808 | END-ROD Price: $88.58 |
| 7 | 530055103 | Air Box Price: $1.80 |
| 8 | 3220-5 | NUT-JAM Price: $0.65 |
| 8 | 530016340 | Screw-Carb. Price: $1.99 |
| 9 | 111-4818 | TUBE-HOC Price: $83.45 |
| 9 | 530049383 | Filter-Air Price: $1.99 |
| 10 | 111-4851 | LH LIFT ARM ASM Price: $757.56 |
| 10 | 530055104 | Cover-Air Filter Price: $2.99 |
| 11 | 111-4783 | RH LIFT ARM ASM Price: $679.09 |
| 11 | 530016354 | Screw-Air Box Cover Price: $3.33 |
| 12 | 107-3457 | PIN-CLEVIS Price: $5.89 |
| 12 | 530015880 | Screw Price: $1.99 |
| 13 | 3290-467 | PIN-HAIR Price: $0.27 |
| 13 | 530056257 | Assy-Muffler Cover Price: $3.33 |
| 14 | 111-5427 | TUBE-HOC Price: $33.73 |
| 14 | 530095469 | Handle Price: $7.99 |
| 15 | 325-17 | SCREW-HH Price: $2.90 |
| 15 | 530015886 | Screw Price: $1.99 |
| 16 | 111-5391 | SPACER Price: $16.83 |
| 16 | 530049323 | Isolator Price: $2.99 |
| 17 | 111-5555 | PIN ASM Price: $50.63 |
| 17 | 530071459 | Foam-25.4mm (Kit) Price: $4.99 |
| 18 | 3231-2 | BOLT-CARR Price: $0.81 |
| 18 | 530016324 | Clamp-Blower Tube Price: $4.99 |
| 19 | 530016322 | Knob-Tube Clamp Price: $1.99 |
| 20 | 530055148 | Housing-Right (yellow) Price: $24.99 |
| 21 | 530402044 | Spring-Cover Latch Price: $3.99 |
| 22 | 530049617 | Guide-Starter Rope Price: $1.99 |
| 23 | 530055147 | Housing-Left (yellow) Price: $19.16 |
| 24 | 530016207 | Nut Price: $1.99 |
| 25 | 530036792 | Isolator-Crankcase Price: $4.99 |
| 26 | 545058007 | Assy-Fuel Tank This part replaces 530049491. Price: $22.99 |
| 27 | 530049527 | Gasket-Fuel Tank Price: $1.99 |
| 28 | 530057973 | Assy - Fuel Cap w/retainer This part replaces 530049386. Price: $7.99 |
| 29 | 530049656 | Grommet-Shroud Price: $1.99 |
| 30 | 530069247 | Kit-Line Carb/Purge Price: $3.99 |
| 31 | 530069216 | Kit-Line Tank/Purge Price: $3.99 |
| 32 | 530095646 | Assy-Fuel Pick-up Price: $2.99 |
| 33 | 530071459 | Grommet-Fuel line (Kit) Price: $4.99 |
