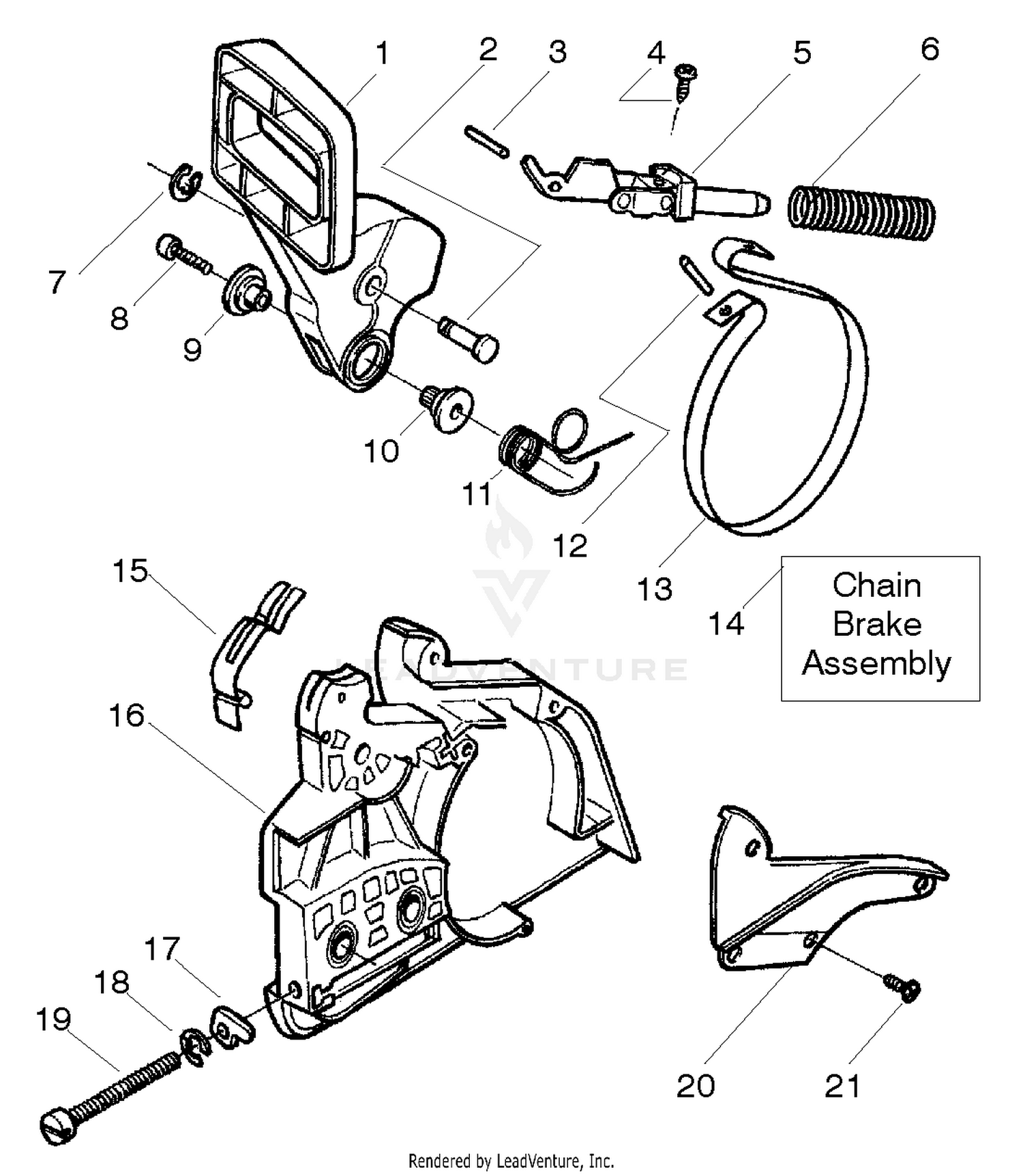

| Ref | Part Number | Description |
|---|
| 1 |
530071348 |
HANDGUARD Price: $21.99 |
| 1 |
99-8390 |
PIPE-LOCK, FUEL ADJ. Price: $22.33 |
| 2 |
530029879 |
PIVOT PIN Price: $3.99 |
| 2 |
99-8387 |
NUT-CAP Price: $2.74 |
| 3 |
112-7014 |
ADJUSTING BOLT ASM This part replaces 98-9679. Price: $14.56 |
| 3 |
530015915 |
PIN Price: $3.99 |
| 4 |
574780301 |
SCREW M3.63-1.34 X 8MM This part replaces 530015911. Price: $3.99 |
| 5 |
530054741 |
FRONT LINK ASSY Price: $4.99 |
| 5 |
98-7654 |
GASKET Price: $8.84 |
| 6 |
545137301 |
COMPRESSION SPRING This part replaces 530016237. Price: $6.99 |
| 6 |
99-8386 |
NUT Price: $0.62 |
| 7 |
530024419 |
E-RING Price: $4.99 |
| 7 |
98-7654 |
GASKET This part replaces 99-8388. Price: $8.84 |
| 8 |
112-7015 |
BOLT-ADJUSTING This part replaces 98-9557. Price: $6.24 |
| 8 |
530016384 |
SCREW Price: $3.99 |
| 9 |
107-9081 |
GASKET This part replaces 99-8389. Price: $3.94 |
| 9 |
530056531 |
JOURNAL, RIGHT Price: $3.99 |
| 10 |
530029881 |
SHAFT PIVOT Price: $2.99 |
| 10 |
98-9674 |
GASKET PUMP COVER NA Price: $8.42 |
| 11 |
530015910 |
SPRING,BRK HDL 36/41 Price: $4.99 |
| 11 |
98-7645 |
BOLT Price: $1.21 |
| 12 |
530015913 |
PIN Price: $2.99 |
| 12 |
98-9359 |
BOLT Price: $0.76 |
| 13 |
112-7016 |
COVER-PUMP This part replaces 98-9640. Price: $24.52 |
| 13 |
545137401 |
BRAKE BAND This part replaces 530052232. Price: $5.99 |
| 14 |
530054802 |
CHAIN BRAKE ASM. Price: $39.99 |
| 14 |
98-7534 |
NUT Price: $0.48 |
| 15 |
530029878 |
SPRING-POSITION Price: $4.99 |
| 16 |
530049483 |
CLUTCH COVER Price: $14.99 |
| 17 |
530015826 |
ADJUST PIN,BAR 36/41 Price: $3.99 |
| 18 |
530038593 |
RETAINER Price: $3.99 |
| 19 |
530016110 |
BAR ADJUSTING SCREW Price: $3.99 |
| 20 |
530053035 |
CHAIN BRAKE COVER Price: $2.99 |
| 21 |
574780301 |
SCREW M3.63-1.34 X 8MM This part replaces 530015911. Price: $3.99 |
