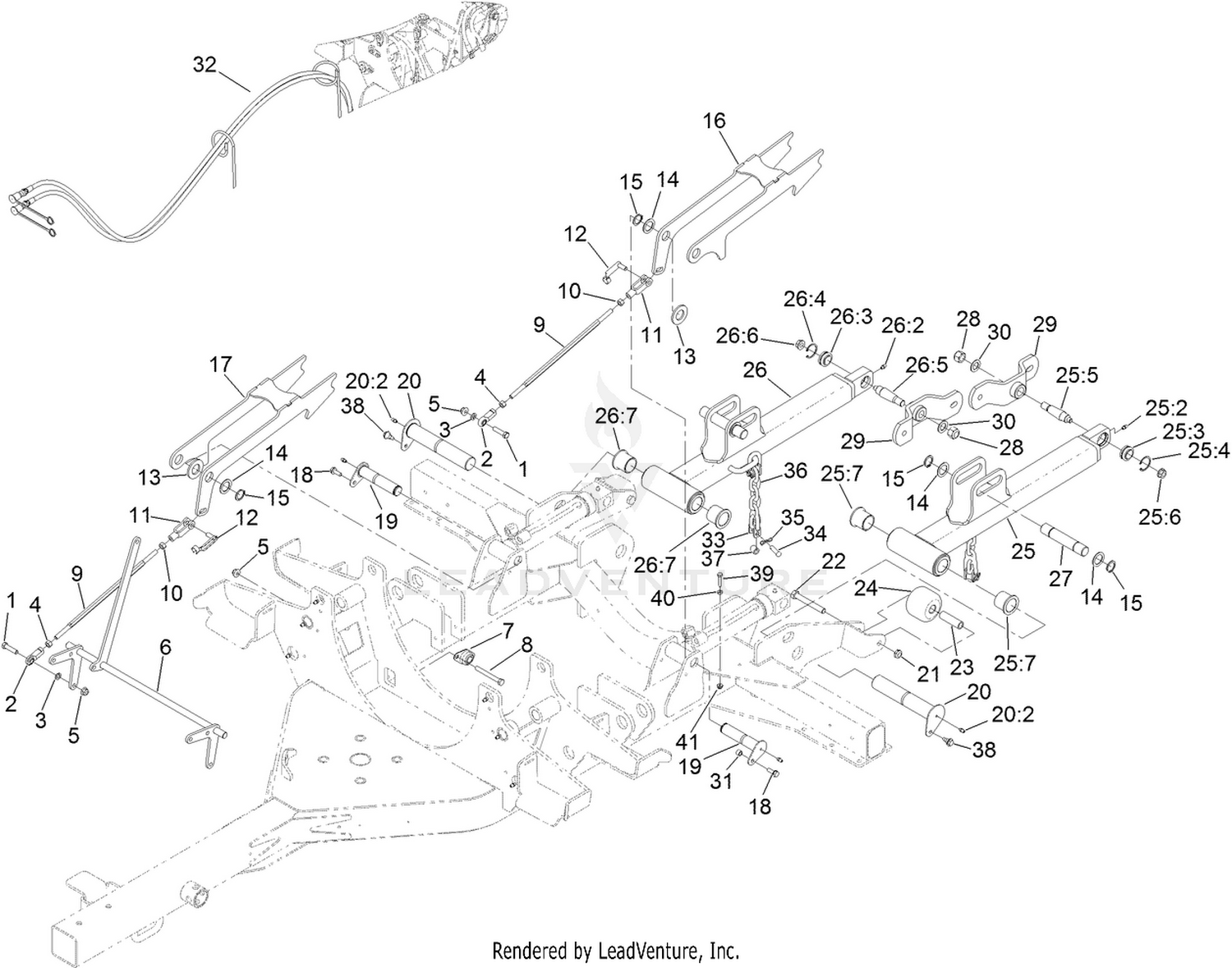

| Ref | Part Number | Description |
|---|
| 1 |
323-8 |
SCREW-HH Price: $1.20 |
| 2 |
103-1167 |
JOINT-BALL END, LH Price: $30.99 |
| 3 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 4 |
3219-20 |
NUT-HEX, LH Price: $1.15 |
| 5 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 6 |
137-3688-03 |
LATCH SHAFT ASM Price: $118.11 |
| 7 |
256-236 |
BEARING-MOUNT, FLANGE Price: $27.99 |
| 8 |
323-20 |
SCREW-HH Price: $1.28 |
| 9 |
137-3691 |
ROD-ADJUSTER, REAR Price: $50.03 |
| 10 |
3219-3 |
NUT-HEX Price: $0.34 |
| 11 |
1-633131 |
YOKE-LINKAGE, BRAKE Price: $14.99 |
| 12 |
103-2399 |
PIN-SPRING, CLEVIS Price: $5.59 |
| 13 |
3256-62 |
WASHER-FLAT Price: $0.75 |
| 14 |
10-8110 |
WASHER-THRUST Price: $1.09 |
| 15 |
32151-36 |
RING-RETAINING Price: $1.73 |
| 16 |
140-0007 |
LH REAR LATCH ASM Price: $89.73 |
| 17 |
140-0008 |
RH REAR LATCH ASM Price: $97.72 |
| 18 |
32144-41 |
SCREW-TAPTITE Price: $4.79 |
| 19 |
138-6331 |
LIFT ARM PIN ASM Price: $32.57 |
| 20 |
138-6332 |
LIFT ARM PIN ASM Price: $80.58 |
| 21 |
3296-45 |
NUT-HEX Price: $3.79 |
| 22 |
325-15 |
SCREW-HH Price: $3.19 |
| 23 |
115-2144 |
TUBE-SPACER Price: $12.09 |
| 24 |
115-3366 |
ROLLER Price: $81.91 |
| 27 |
137-3617 |
PIN-CYLINDER Price: $38.54 |
| 28 |
3296-41 |
NUT-LOCK NI Price: $5.49 |
| 29 |
137-3581-01 |
HUB SUPPORT ASM Price: $107.44 |
| 30 |
86-1440 |
WASHER-FLAT Price: $2.10 |
| 31 |
105-5723 |
SPACER-TUBE Price: $3.39 |
| 32 |
20-9580 |
ROPE-LATCH Price: $47.65 |
| 33 |
5-2942 |
SHACKLE Price: $16.99 |
| 34 |
283-42 |
PIN-CLEVIS Price: $40.05 |
| 35 |
119-1415 |
PIN-COTTER, LOCKING Price: $0.22 |
| 36 |
138-5274 |
CHAIN-6 LINK Price: $16.88 |
| 37 |
75-5270 |
SPACER-KNOB, SEAT Price: $4.61 |
| 38 |
99-5105 |
BOLT-SHOULDER Price: $5.89 |
| 39 |
114-0282 |
SCREW-HH Price: $4.29 |
| 40 |
3218-1 |
NUT-JAM Price: $1.29 |
