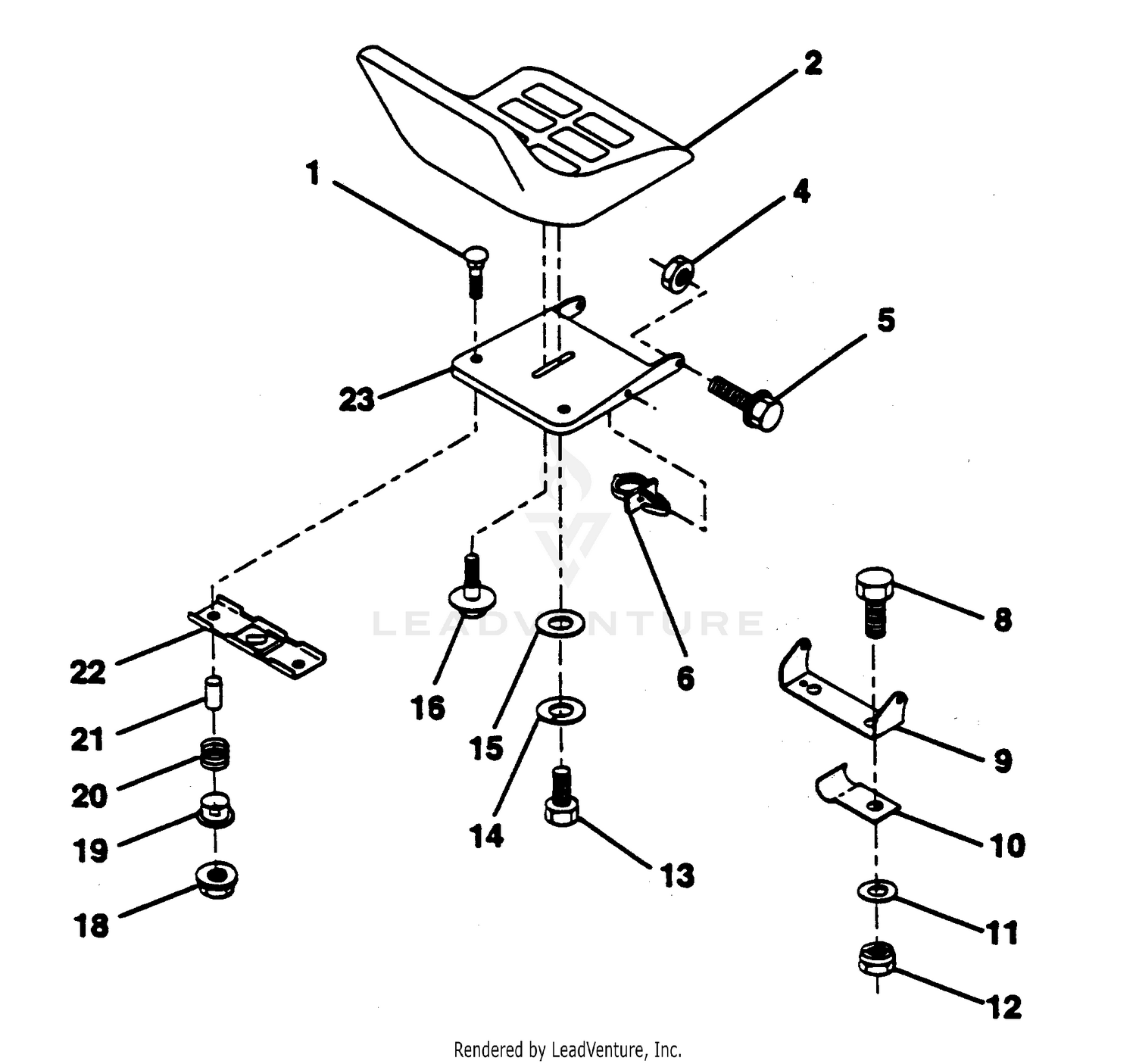

| Ref | Part Number | Description |
|---|
| 1 |
872050411 |
Bolt, Carriage 1/4-20 x 1-3/8 Price: $2.99 |
| 2 |
532127427 |
Seat (AYP part number) Price: $119.99 |
| 3 |
104-3396 |
SCREW-HH Price: $0.75 |
| 4 |
873800500 |
Locknut, Hex w/Ins 5/16-18 (AYP part number) Price: $2.99 |
| 4 |
99-8662 |
TUBE-SPRING Price: $21.55 |
| 5 |
3218-5 |
NUT-JAM Price: $0.27 |
| 5 |
532139888 |
Bolt, Shoulder 5/16-18 UNC (AYP part number) Price: $2.99 |
| 6 |
532145006 |
Clip, Push-In Hinged (AYP part number) Price: $2.99 |
| 6 |
87-7270 |
WASHER-THRUST Price: $0.89 |
| 7 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 8 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 8 |
874780616 |
BOLT This part replaces 874760616. Price: $3.99 |
| 9 |
110-4079 |
SPRING-COMPRESSION Price: $13.57 |
| 9 |
532140551 |
Bracket, Pivot Seat (AYP part number) Price: $3.99 |
| 10 |
532126471 |
Clip, Insulated (AYP part number) Price: $2.99 |
| 11 |
532413524 |
WASHER.13/32 X 1 X 1/2.11GUARD This part replaces 819133210. Price: $2.99 |
| 12 |
110-4069 |
BRACKET Price: $5.57 |
| 12 |
873680600 |
LOCKNUT This part replaces 873800600. Price: $1.99 |
| 13 |
115-2007 |
ROD-SPRING Price: $34.97 |
| 13 |
871110814 |
BOLT.HEX.BLACK This part replaces 874780814. Price: $3.99 |
| 14 |
810040800 |
Washer Lock Hvy. Hlicl Spring 1/2 (AYP part number) Price: $3.99 |
| 14 |
92-2762 |
PIN-HAIR Price: $1.09 |
| 15 |
119-4162 |
SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 15 |
819171912 |
Washer, 17/32 x 1-3/16 x 12 Ga. (AYP part number) Price: $3.99 |
| 16 |
532127018 |
Bolt, Shoulder (AYP part number) Price: $3.99 |
| 17 |
107-7400 |
PIN-LYNCH Price: $9.56 |
| 18 |
110-4058 |
BRACKET-CHAIN Price: $32.43 |
| 18 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 532123976. Price: $2.99 |
| 19 |
107-3258 |
FRAME Price: $331.61 |
| 19 |
532121248 |
Bushing, Snap (AYP part number) Price: $3.99 |
| 20 |
107-2979 |
BOLT-SHOULDER Price: $3.94 |
| 20 |
532121250 |
Spring, Compression (AYP part number) Price: $3.99 |
| 21 |
3234-19 |
SCREW-HHF Price: $1.73 |
| 21 |
532134300 |
Spacer, Split 28 Id. x .88 Lg. (AYP part number) Price: $3.99 |
| 22 |
130-8094 |
WASHER-PLAIN Price: $5.25 |
| 22 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK This part replaces 532121246. Price: $4.99 |
| 23 |
108-4279 |
SPACER-FRAME Price: $8.34 |
| 24 |
108-4284 |
TUBE-SUPPORT Price: $60.29 |
| 25 |
107-7433 |
CARRIER FRAME ASM Price: $484.72 |
