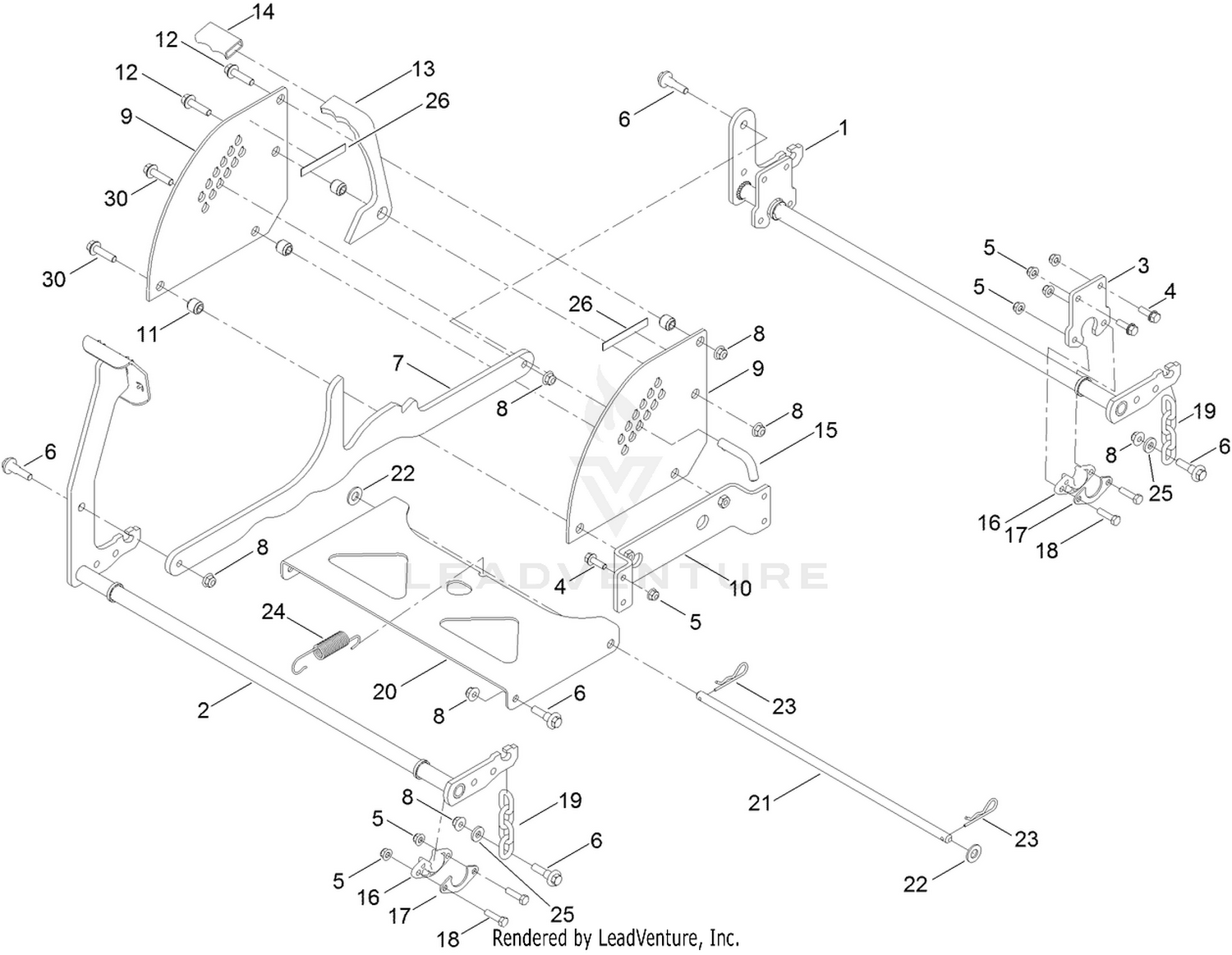

Deck Lift Assembly
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 137-2020-03 | PIVOT-REAR Price: $44.00 |
| 2 | 133-4430-03 | PIVOT-FRONT Price: $63.47 |
| 3 | 137-2021-03 | PLATE Price: $5.01 |
| 4 | 139-2596 | SCREW-HHF Price: $0.78 |
| 5 | 119-4041 | NUT-HF Price: $0.48 |
| 6 | 130-0742 | BOLT-SHOULDER Price: $1.29 |
| 7 | 127-3390-03 | LINK-HOC Price: $58.52 |
| 8 | 119-4042 | NUT-HF, NI Price: $0.69 |
| 9 | 127-3389-03 | PLATE-DECK, LIFT Price: $32.05 |
| 10 | 133-7049 | PLATE-LIFT Price: $12.31 |
| 11 | 138-7201 | SPACER-DOUBLE STEP Price: $1.12 |
| 12 | 139-2553 | SCREW-HHF Price: $1.01 |
| 13 | 138-7202 | TRANSPORT LOCK-HOC Price: $2.87 |
| 14 | 116-4312 | GRIP-FLAT Price: $2.10 |
| 15 | 138-7203 | PIN-HOC Price: $2.87 |
| 16 | 115-5065 | BUSHING-FLANGE Price: $4.58 |
| 17 | 138-7204 | GUSSET-DECK LIFT Price: $1.73 |
| 18 | 120-9696 | SCREW-HH Price: $0.31 |
| 19 | 138-7205 | CHAIN-DECKLIFT, 4-LINK Price: $4.81 |
| 20 | 133-4311-01 | PAN-PIVOT, DECK Price: $38.06 |
| 21 | 133-7071 | ROD-PIVOT, DECK Price: $12.06 |
| 22 | 139-2611 | WASHER-FLAT Price: $0.29 |
| 23 | 139-2562 | PIN-HAIR Price: $0.56 |
| 24 | 138-7206 | SPRING-EXTENSION Price: $4.08 |
| 25 | 138-7207 | SPACER-HUB, BLOWER Price: $0.56 |
| 26 | 130-0734 | PAD-RUBBER Price: $1.12 |
