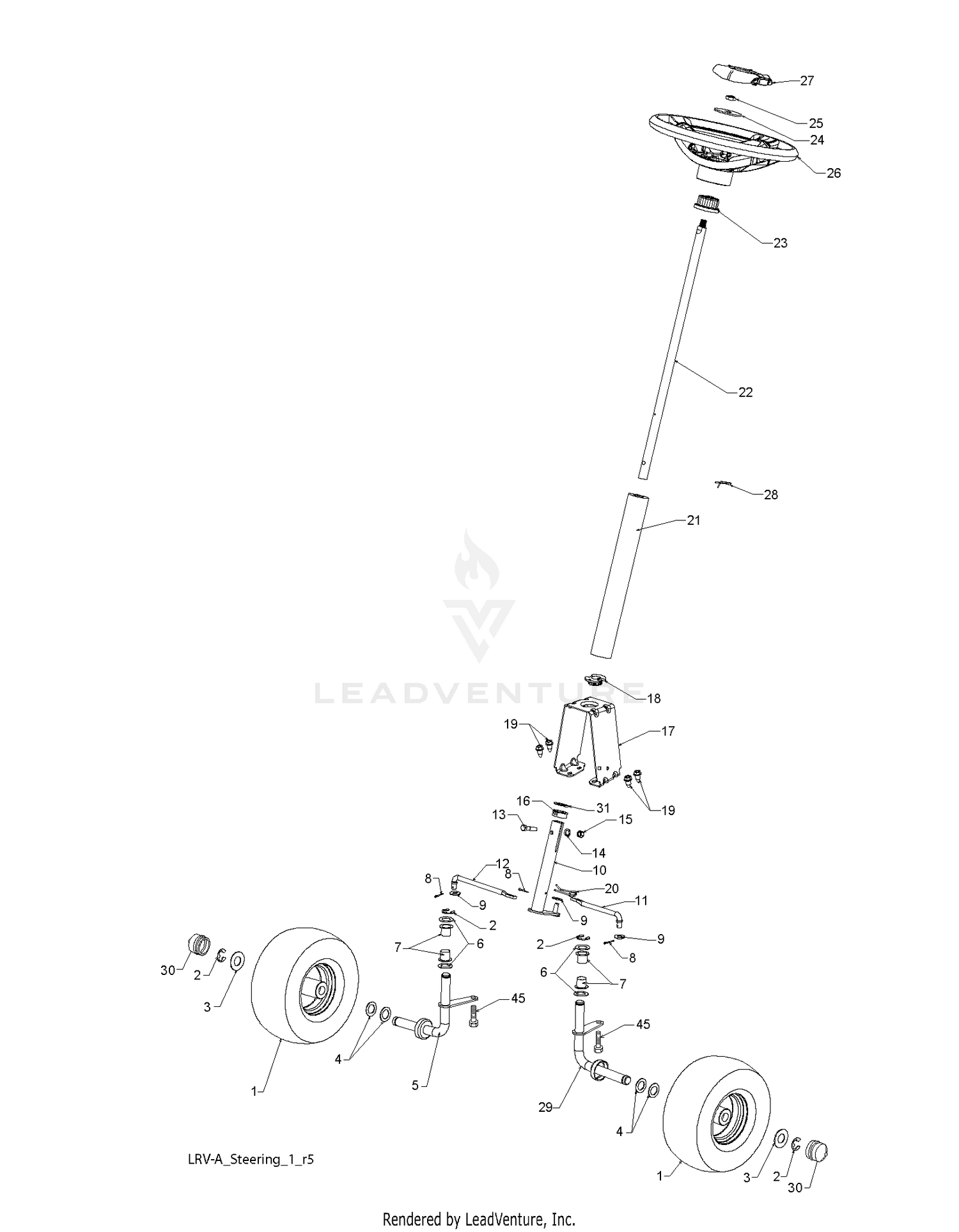

| Ref | Part Number | Description |
|---|
| 1 |
285-17 |
PLUG-PIPE This part replaces 285-10. Price: $2.59 |
| 1 |
581420601 |
WHEEL ASSY FRONT.LRVA.10"613 This part replaces 532436500. Price: $24.99 |
| 2 |
5-2795 |
DISCONTINUED Price: Call Us |
| 2 |
812000001 |
E-RING LT Price: $2.99 |
| 3 |
5-2896 |
PIVOT *R Price: $2.44 |
| 3 |
532188967 |
WASHER.HARDENED Price: $2.99 |
| 4 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 4 |
532121749 |
WASHER Price: $1.99 |
| 5 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 5 |
532435324 |
SPINDLE.STEERING.RH.LRVA Price: $17.99 |
| 6 |
323-6 |
SCREW-HH Price: $0.66 |
| 6 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $5.99 |
| 7 |
5-2845 |
ROLLER HANGER WA *RO Price: $188.44 |
| 7 |
532003366 |
BEARING.STEERING.COLUMN This part replaces 532124937. Price: $1.99 |
| 8 |
3290-212 |
WASHER-SPRING Price: $1.56 |
| 9 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 9 |
819131414 |
WASHER Price: $3.99 |
| 10 |
3245-35 |
SCREW-SET, HSH Price: $0.41 |
| 10 |
532428057 |
WELDMENT, LWR STRG SHAFT Price: $22.99 |
| 11 |
5-2808 |
DISCONTINUED Price: Call Us |
| 11 |
532428035 |
LINK, STRNG LH LRV Price: $6.99 |
| 12 |
237-69 |
O-RING Price: $5.72 |
| 12 |
532428036 |
LINK.STEERING.RH.LRV Price: $6.99 |
| 13 |
11-3050 |
SLEEVE Price: $53.95 |
| 13 |
539976935 |
CAPSCREW 5/16 X 1/1/2 HEX HEAD This part replaces 874780524. Price: $1.99 |
| 14 |
253-118 |
SEAL-OIL Price: $18.29 |
| 14 |
819131016 |
WASHER Price: $3.99 |
| 15 |
5-1384 |
HOUSING-BEARING Price: $84.20 |
| 15 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK Price: $2.99 |
| 16 |
251-205 |
BEARING-BALL Price: $40.83 |
| 16 |
532428044 |
BUSHING, STEERING SNAP Price: $2.99 |
| 17 |
32151-13 |
RING-RETAINING Price: $4.39 |
| 17 |
532428252 |
SUPPORT, UPPER STEERING Price: $9.99 |
| 18 |
237-68 |
O-RING Price: $3.22 |
| 18 |
532195227 |
BUSHING,STEERING Price: $3.99 |
| 19 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 19 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $2.99 |
| 20 |
283-2 |
PIN-CLEVIS Price: $12.99 |
| 20 |
532428045 |
CLIP.SPRING.STEERINGG Price: $2.99 |
| 21 |
282-1 |
DISCONTINUED Price: Call Us |
| 21 |
532428347 |
FOAM.SHAFT.STEERING Price: $7.99 |
| 22 |
5-1686 |
ADJ ROD Price: $41.75 |
| 22 |
532428213 |
SHAFT, STEERING Price: $22.99 |
| 23 |
5-2856 |
DISCONTINUED Price: Call Us |
| 23 |
532437747 |
STEERING.WHEEL.ADAPTER Price: $19.99 |
| 24 |
3290-255 |
PIN-COTTER, HAIR Price: $7.89 |
| 24 |
819183812 |
WASHER 9/16"ID, 2 3/8""OD Price: $3.99 |
| 25 |
5-2806 |
ROLLER ASM This part replaces 4-7769. Price: $426.02 |
| 25 |
873940800 |
NUT.HEX.1/2-20 Price: $3.99 |
| 26 |
532441614 |
WHEEL.STEER.STDR.498.OVRM.GRAY This part replaces 532414851. Price: $24.99 |
| 27 |
532436502 |
CAP.WHL.STRNG.STDSRRD.SRS.GREY This part replaces 532414852. Price: $7.99 |
| 28 |
532199849 |
RETAINER.CLIP.SPRING.S Price: $2.99 |
| 29 |
532435323 |
WELDMENT.SPINDLE.LH.LR Price: $19.99 |
| 30 |
532436499 |
CAP.HUB.AXLE.LRVA/B Price: $3.99 |
| 31 |
819343210 |
WASHER Price: $1.99 |
| 45 |
532165492 |
BOLT.SHOULDER.5/16-18X Price: $3.99 |
