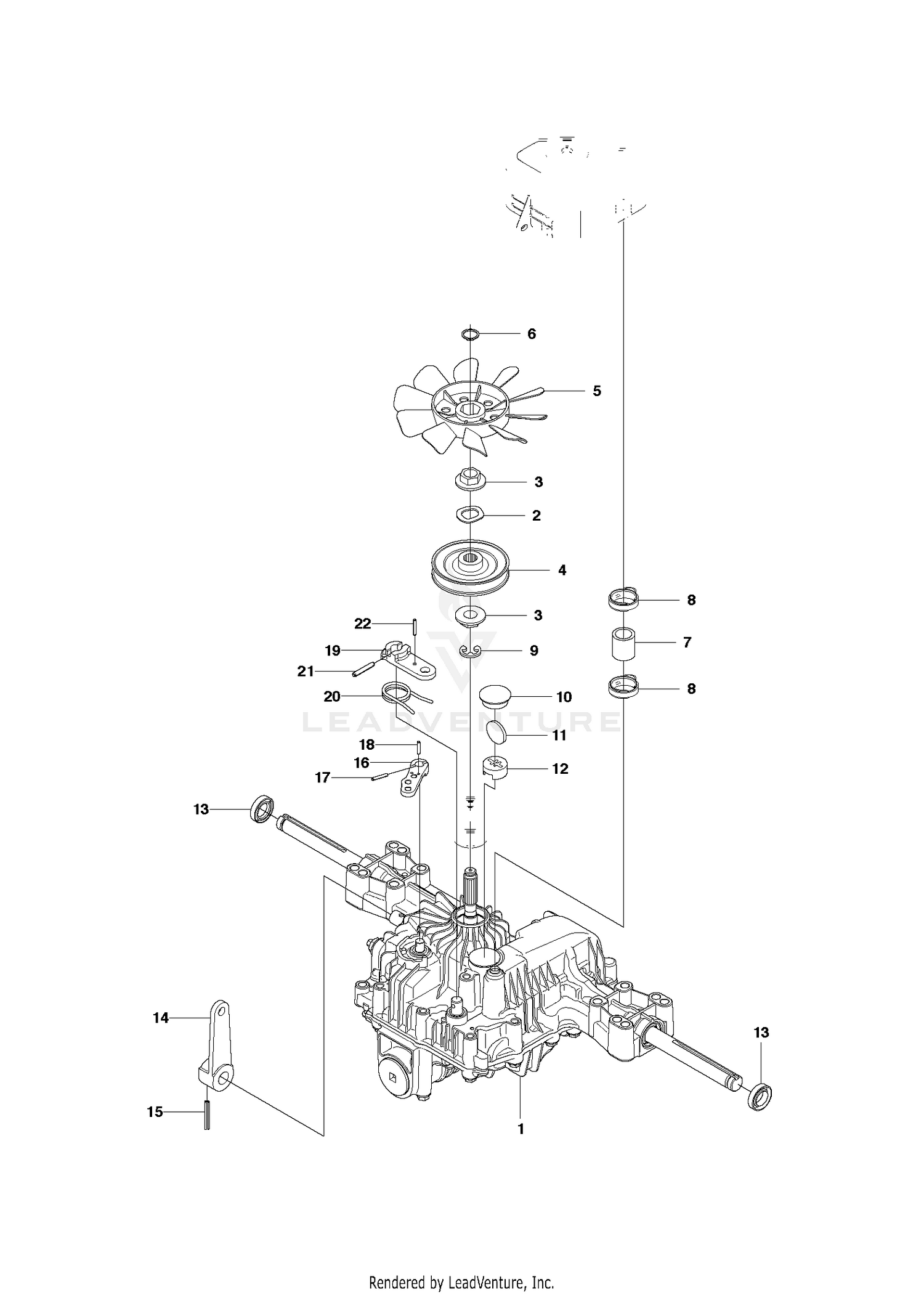

TRANSMISSION 2
Parts (52)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 107-0807 | VALVE-FLUSHING, RH Price: $129.44 |
| 1 | 590716801 | TRANSMISSION K574A This part replaces 544116101. Price: $849.99 |
| 2 | 107-0857 | PLUG Price: $31.81 |
| 2 | 506986501 | WASHER ** Price: $3.99 |
| 3 | 107-0817 | O RING-PLUG Price: $3.09 |
| 3 | 506986601 | SLEEVE Price: $7.99 |
| 4 | 121-3377 | CENTER CASE, COMPLETE Price: $2,743.66 |
| 4 | 502451901 | PULLEY B Price: $37.99 |
| 5 | 583350101 | FAN.BLACK.1A646083070 This part replaces 506986801. Price: $27.99 |
| 6 | 107-0805 | PLATE-VALVE Price: $114.64 |
| 6 | 735311500 | RETAINING RING ** Price: $2.99 |
| 7 | 107-0824 | CYLINDER BLOCK ASM Price: $1,216.33 |
| 7 | 502451601 | TUBE Price: $17.99 |
| 8 | 107-0830 | PLATE-THRUST Price: $77.36 |
| 9 | 535402807 | CLIP Price: $0.25 |
| 9 | 92-0765 | PIN-PARALLEL Price: $3.03 |
| 10 | 107-0859 | BOLT Price: $1.56 |
| 10 | 535402832 | PLUG Price: $14.99 |
| 11 | 120-6681 | U-NUT Price: $9.77 |
| 11 | 535402829 | MAGNET Price: $5.17 |
| 12 | 120-6680 | ARM-CONTROL Price: $500.00 |
| 12 | 535402830 | HOLDER Price: $4.55 |
| 13 | 107-0832 | SIDE COVER ASM Price: $444.99 |
| 13 | 583349301 | SEAL.19, 19216334280 This part replaces 535402837. Price: $17.99 |
| 14 | 107-0829 | WASHER Price: $35.71 |
| 14 | 502453201 | CONTROL LEVER Price: $34.99 |
| 15 | 120-5151 | PUMP HOUSING ASM Price: $4,033.93 |
| 15 | 535402809 | PIN Price: $2.99 |
| 16 | 107-0826 | BEARING Price: $32.70 |
| 16 | 535402817 | ARM Price: $19.99 |
| 17 | 107-0821 | BEARING Price: $40.03 |
| 17 | 535402816 | PIN Price: $2.99 |
| 18 | 107-0838 | BEARING Price: $62.42 |
| 18 | 535402833 | PIN Price: $2.99 |
| 19 | 120-6682 | BOLT Price: $7.06 |
| 19 | 535402838 | ARM Price: $14.99 |
| 20 | 535402839 | RETURN SPRING Price: $11.99 |
| 21 | 535402840 | PIN Price: $3.99 |
| 22 | 535402841 | PIN Price: $2.99 |
| 23 | 107-0861 | PLUG-NPTF Price: $11.67 |
| 24 | 237-79 | O-RING Price: $5.46 |
| 25 | 107-0867 | PLUG Price: $14.59 |
| 26 | 107-0812 | PIPE Price: $75.78 |
| 27 | 107-0852 | CENTER CASE SEAL KIT Price: $12.50 |
| 28 | 107-0813 | SPACER Price: $8.69 |
| 29 | 107-0853 | PUMP HOUSING SEAL KIT Price: $190.09 |
| 30 | 120-6679 | PLATE-SWASH Price: $882.98 |
| 31 | 107-0808 | VALVE-BYPASS Price: $86.68 |
| 32 | 107-0804 | VALVE-REAR Price: $414.56 |
| 33 | 107-0803 | VALVE-FRONT Price: $414.56 |
| 34 | 107-0863 | BOLT Price: $1.22 |
| 35 | 107-0806 | VALVE-FLUSHING, LH Price: $129.44 |
