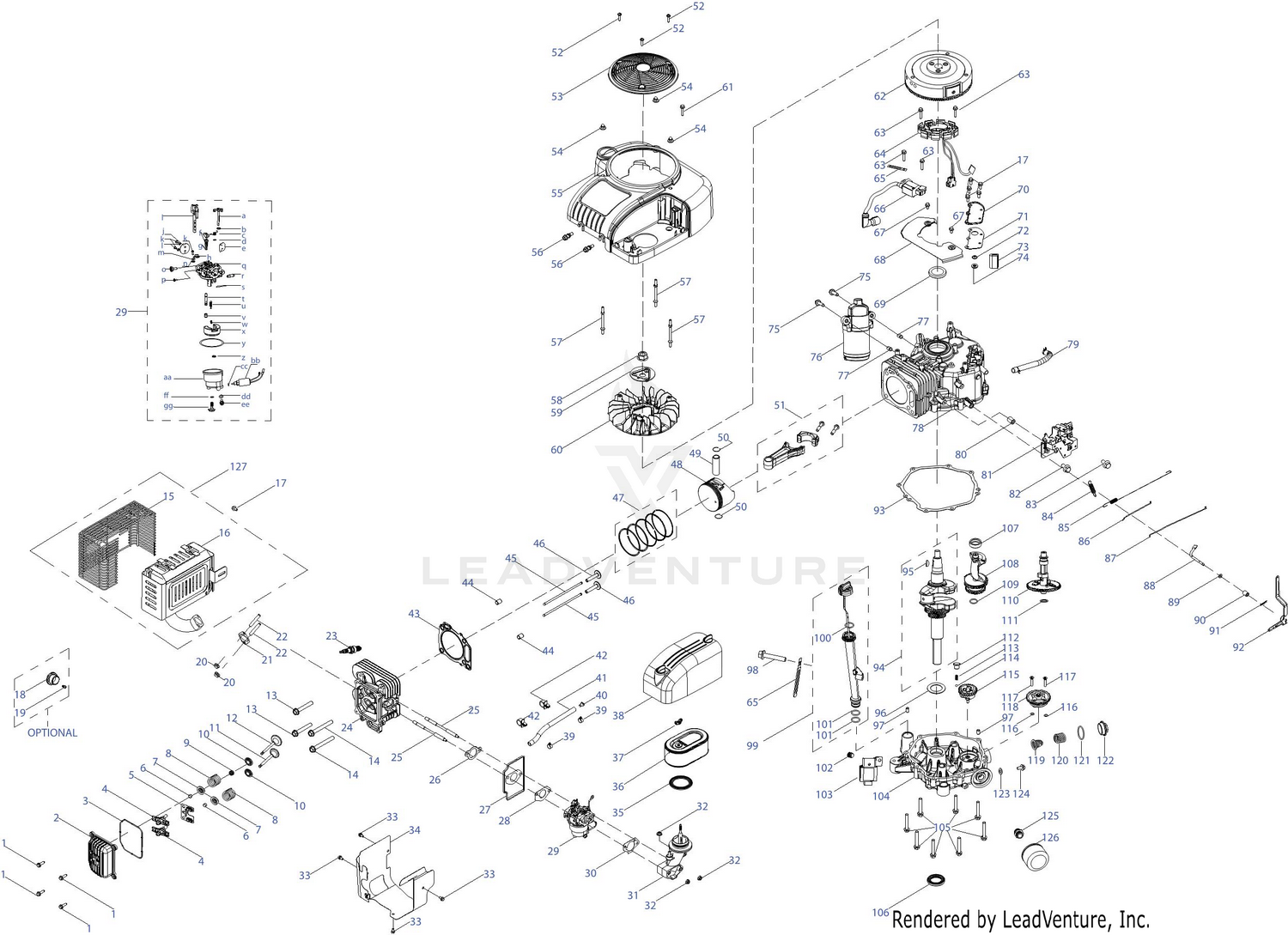

| Ref | Part Number | Description |
|---|
| a |
None |
Choke Shaft |
| aa |
619P05093 |
FLOAT BOWL Price: $9.41 |
| b |
None |
Gasket |
| bb |
951-14676 |
Solenoid Valve Price: $35.82 |
| c |
None |
Choke Spring |
| cc |
None |
O-Ring, Solenoid Valve Seat |
| d |
None |
Washer |
| dd |
951-11349A |
FUEL DRAIN PLUG GASKET This part replaces 951-11349. Price: $3.66 |
| e |
None |
Choke Plate |
| ee |
710-04938 |
FUEL DRAIN PLUG Price: $3.66 |
| f |
None |
Idle Jet |
| ff |
None |
O-Ring, Solenoid Valve Seat |
| g |
None |
O-Ring, 4x1.8G |
| h |
None |
Throttle Shaft Sleeve |
| i |
None |
Throttle Shaft |
| j |
None |
Throttle Plate |
| k |
None |
Screw, M3x5 |
| l |
736-04638A |
LOCK WASHER This part replaces 736-04638. Price: $2.88 |
| m |
None |
Gasket, Throttle Shaft |
| n |
None |
Gasket |
| o |
710P06038A |
SPEED IDLE SCREW Price: $2.45 |
| p |
None |
Idle Jet Rivet |
| q |
None |
Carburetor Body |
| r |
737P05014 |
FUEL NIPPLE Price: $2.39 |
| s |
711-06036 |
HINGE FLOAT PIN Price: $0.60 |
| t |
None |
Nozzle Tube |
| u |
751P14036A |
NEEDLE VALVE Price: $5.16 |
| v |
None |
Main Jet |
| w |
732P05251A |
NEEDLE VALVE SPRING This part replaces 732P05251. Price: $1.70 |
| x |
731P09131 |
CARBURETOR FLOAT Price: $2.89 |
| y |
951-12304 |
FUEL BOWL O-RING Price: $6.17 |
| z |
721P04699 |
SEAL Price: $1.92 |
| 1 |
710-05316 |
Bolt, M6x22 Price: $3.56 |
| 2 |
951-12266 |
Valve Cover Price: $23.04 |
| 3 |
951-12267 |
Gasket, Valve Cover Price: $8.12 |
| 4 |
951-11981A |
ROCKER ARM ASSEMBLY This part replaces 951-11981. Price: $35.16 |
| 5 |
951-12268 |
Rocker Arm Base Price: $6.42 |
| 6 |
951-12269 |
Exhaust Valve Adjuster This part replaces 951-12081. Price: $5.48 |
| 7 |
951-12080 |
Valve Spring Seat Price: $3.68 |
| 8 |
951-12078 |
Valve Spring Price: $3.49 |
| 9 |
951-11964A |
INTAKE VALVE SEAL This part replaces 951-11964. Price: $9.96 |
| 10 |
951-12077A |
VALVE SPRING RETAINER This part replaces 951-12077. Price: $3.49 |
| 11 |
951-14224 |
Exhaust Valve Price: $19.91 |
| 12 |
951-14225 |
Intake Vavle Price: $18.07 |
| 13 |
710-05318 |
Bolt, M10x1.25x65 Price: $5.59 |
| 14 |
710-05317 |
Bolt, M10x1.25x85 Price: $5.59 |
| 15 |
951-12278 |
Muffler Guard Price: $36.55 |
| 16 |
951-14468 |
Muffler Price: $131.38 |
| 17 |
710-04916 |
Bolt, M6x14 Price: $3.86 |
| 18 |
951-12316 |
Spark Arrester Price: $8.14 |
| 19 |
710-05341 |
Self-tappling Screw, ST5x8 Price: $2.34 |
| 20 |
751-15427 |
Nut, M8 Price: $3.64 |
| 21 |
951-12271 |
Gasket, Muffler Price: $5.48 |
| 22 |
951-12272 |
Stud, M8x47 Price: $3.49 |
| 23 |
951-10292A |
SPARK PLUG (F6RTC/RN11YC/BPR6ES) This part replaces 951-10292. Price: $6.35 |
| 24 |
951-14706 |
Cylinder Head Price: $273.83 |
| 25 |
951-12264 |
Stud, M6-8x140 Price: $5.48 |
| 26 |
951-12263 |
Gasket, Carburetor Insulator Price: $3.60 |
| 27 |
951-12262 |
Insulator Price: $9.02 |
| 28 |
951-12261 |
Gasket, Carburetor Price: $3.60 |
| 29 |
951-05149 |
Carburetor Price: $118.80 |
| 30 |
951-12258A |
Gasket, Intake Manifold Price: $3.60 |
| 31 |
951-15440 |
Intake Manifold Price: $26.84 |
| 32 |
712-05015 |
Nut, M6 Price: $5.78 |
| 33 |
710-06290 |
Bolt, M5x10 Price: $4.31 |
| 34 |
951-12265 |
Shroud Price: $24.06 |
| 35 |
951-15444 |
Ring,Air Filter Price: $5.48 |
| 36 |
937-05122 |
Air Filter Price: $22.25 |
| 37 |
951-15443 |
Butterfly Nut Price: $4.55 |
| 38 |
951-14458 |
Air Filter Cover Price: $24.19 |
| 39 |
951-11700A |
CARBURETOR HOSE CLAMP This part replaces 951-11700. Price: $3.60 |
| 40 |
951-14091 |
Plug Price: $4.09 |
| 41 |
935-05087 |
Fuel Hose, 6.3x 12.5x290 Price: $9.78 |
| 42 |
723-04071A |
FUEL LINE SUPPORT CLAMP This part replaces 723-04071. Price: $2.77 |
| 43 |
951-12273 |
Gasket, Cylinder Head Price: $42.37 |
| 44 |
715-04122 |
Pin, 12x16 Price: $3.52 |
| 45 |
951-14226A |
PUSH ROD This part replaces 951-14226. Price: $9.70 |
| 46 |
951-11962A |
TAPPET This part replaces 951-11962. Price: $5.88 |
| 47 |
951-05156 |
Piston Ring Set Price: $23.52 |
| 48 |
951-14677 |
Piston Price: $47.15 |
| 49 |
951-11954A |
PISTON PIN This part replaces 951-11954. Price: $7.31 |
| 50 |
951-11953A |
PISTON PIN SNAP RING This part replaces 951-11953. Price: $3.42 |
| 51 |
951-12277 |
Connecting Rod Assembly Price: $67.11 |
| 52 |
710-05303 |
Self-tappling Screw, ST5.5x25 Price: $3.56 |
| 53 |
951-12205 |
Shroud Price: $9.07 |
| 54 |
712-04276A |
ACORN NUT M6-1 This part replaces 712-04276. Price: $5.38 |
| 55 |
951-14128B |
Shroud Price: $52.45 |
| 56 |
710-05305 |
Hook Price: $3.56 |
| 57 |
951-14454 |
Stud, M6x99 Price: $7.57 |
| 58 |
712-05169 |
Nut, M16x1.5 Price: $7.30 |
| 59 |
951-12221 |
Cooling Fan Plate Price: $9.58 |
| 60 |
951-12222B |
Cooling Fan Price: $49.32 |
| 61 |
710-04968 |
Bolt, M6x16 Price: $5.77 |
| 62 |
919-05089 |
Flywheel Price: $217.51 |
| 63 |
710-04943 |
Bolt, M6x28 Price: $3.76 |
| 64 |
951-12224 |
Charging Coil Price: $84.10 |
| 65 |
951-11622A |
FLEXIBLE CLAMP This part replaces 951-11622. Price: $3.42 |
| 66 |
951-12220 |
Ignition Module Price: $77.48 |
| 67 |
710-04914 |
Bolt, M6x10 Price: $3.71 |
| 68 |
951-12279 |
Shield Price: $12.93 |
| 69 |
951-11499A |
OIL SEAL This part replaces 951-11499. Price: $12.13 |
| 70 |
951-12770A |
Breather Cover Price: $6.79 |
| 71 |
951-12226 |
Gasket, Breather Cover Price: $4.45 |
| 72 |
951-12685 |
Breather Valve Price: $5.15 |
| 73 |
951-12227 |
Breather Filter Screen Price: $4.95 |
| 74 |
951-12686 |
Second Air Valve Seat Price: $5.15 |
| 75 |
710-05306 |
Bolt, M8x40 Price: $3.56 |
| 76 |
751P12207A |
STARTER ASSEMBLY This part replaces 951-12207. Price: $197.22 |
| 77 |
715-04120 |
Pin, 10x14 Price: $3.56 |
| 78 |
919-05022A |
Crankcase Price: $270.47 |
| 79 |
951-12235 |
Breather Hose Price: $12.06 |
| 80 |
750-05530 |
Bush, 6.5x 15x20 Price: $3.32 |
| 81 |
951-15513 |
Governor Gear Bracket Assembly Price: $24.76 |
| 82 |
710-05310 |
Bolt, M6x38 Price: $3.32 |
| 83 |
710-05003A |
BOLT M6-1 x 18 This part replaces 710-05003. Price: $3.11 |
| 84 |
932-05187 |
Governor Spring Price: $5.42 |
| 85 |
951-12231 |
Idle Spring Price: $3.68 |
| 86 |
951-12228 |
Choke Lever Price: $3.60 |
| 87 |
951-12230 |
Throttle Linkage Price: $3.56 |
| 88 |
947-06356 |
Governor Gear Shaft Price: $20.61 |
| 89 |
736-04558 |
Washer, 6x1x 12 Price: $3.35 |
| 90 |
951-11902A |
OIL SEAL This part replaces 951-11574. Price: $3.36 |
| 91 |
714-04078 |
Cotter Pin Price: $3.66 |
| 92 |
951-12232 |
Governor Lever Price: $21.03 |
| 93 |
951-12237 |
Gasket, Crankcase Price: $19.48 |
| 94 |
951-12238 |
Crankshaft Price: $258.60 |
| 95 |
751P10307A |
WOODRUFF KEY This part replaces 951-10307. Price: $2.01 |
| 96 |
736-04557 |
Washer, 35.4x2x 54 Price: $3.52 |
| 97 |
715-04121 |
Pin, 8x14 Price: $3.56 |
| 98 |
710-05198 |
Bolt, M6x35 Price: $5.01 |
| 99 |
951-12239 |
Dipstick Price: $26.61 |
| 99 |
951-12240 |
Oil Fill Tube Price: $16.00 |
| 100 |
951-12241 |
O-Ring, 21.9x2.62 Price: $3.49 |
| 101 |
951-12363 |
O-Ring, 21.2x2.8 Price: $3.49 |
| 102 |
951-11644 |
ENGINE PLUG 3/8 NPT Price: $8.96 |
| 103 |
951-12242 |
Regulator Price: $46.13 |
| 104 |
919-05090 |
Crankcase Cover Price: $123.86 |
| 105 |
710-04922 |
Bolt, M8x54 Price: $3.66 |
| 106 |
951-11375A |
OIL SEAL This part replaces 951-11375. Price: $13.55 |
| 107 |
951-15463 |
Bearing, 6202 Price: $10.75 |
| 108 |
751-12246 |
Balance Shaft Price: $140.57 |
| 109 |
736-04559 |
Washer, 15.4x1x 25 Price: $3.56 |
| 110 |
951-14678 |
Camshaft Price: $80.37 |
| 111 |
736-04561 |
Washer, 16.4x1x 24 Price: $3.52 |
| 112 |
710-05312 |
Bolt Price: $4.09 |
| 113 |
951-12244 |
Spring Price: $3.46 |
| 114 |
951-12243 |
Ball S 6.35 Price: $3.21 |
| 115 |
951-11956 |
Governor Gear Price: $36.12 |
| 116 |
951-12247 |
O-Ring, 10x2.65 Price: $3.60 |
| 117 |
None |
Screw, M6x30 |
| 118 |
951-12248 |
Oil Pump Price: $59.85 |
| 119 |
951-12249 |
Breather Filter Screen Price: $3.35 |
| 120 |
951-12250 |
Breather Spring Price: $3.49 |
| 121 |
951-12251 |
O-Ring, 35.5x2.65 Price: $3.60 |
| 122 |
951-12252 |
Breather Cover Price: $5.79 |
| 123 |
736-04560 |
Washer, 8.3x1.5x 17 Price: $3.68 |
| 124 |
710-05313 |
Bolt, M8x15 Price: $3.56 |
| 125 |
951-12253 |
Connection Pipe Price: $6.87 |
| 126 |
951-12690 |
Oil Filter Price: $15.89 |
| 127 |
951-14468 |
Muffler Price: $131.38 |
