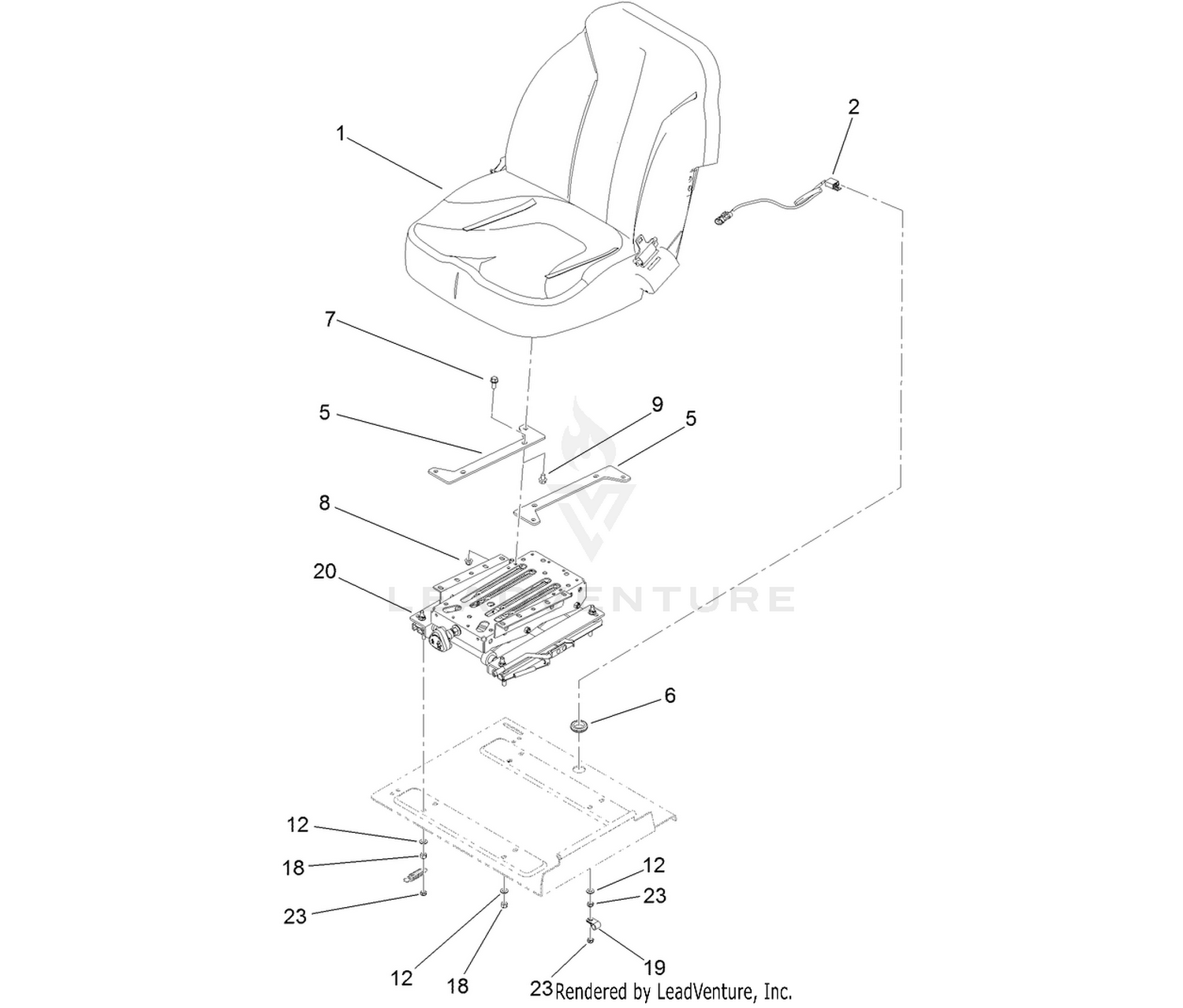

Seat and Suspension Assembly
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 139-2680 | SEAT ASM Price: $413.45 |
| 2 | 106-7090 | HARNESS-WIRE, SEAT SWITCH Price: $26.16 |
| 5 | 139-6004-03 | BRACKET-SEAT MOUNT Price: $9.76 |
| 6 | 240-5 | GROMMET Price: $13.66 |
| 7 | 3234-5 | SCREW-HHF Price: $0.42 |
| 8 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 9 | 3234-30 | SCREW-HHF Price: $0.41 |
| 12 | 3256-23 | WASHER-PLAIN Price: $0.28 |
| 18 | 3296-29 | NUT-LOCK, NI Price: $2.09 |
| 19 | 2412-93 | CLAMP-R Price: $1.02 |
| 20 | 110-9730 | SEAT SUSPENSION ASM Price: $776.63 |
