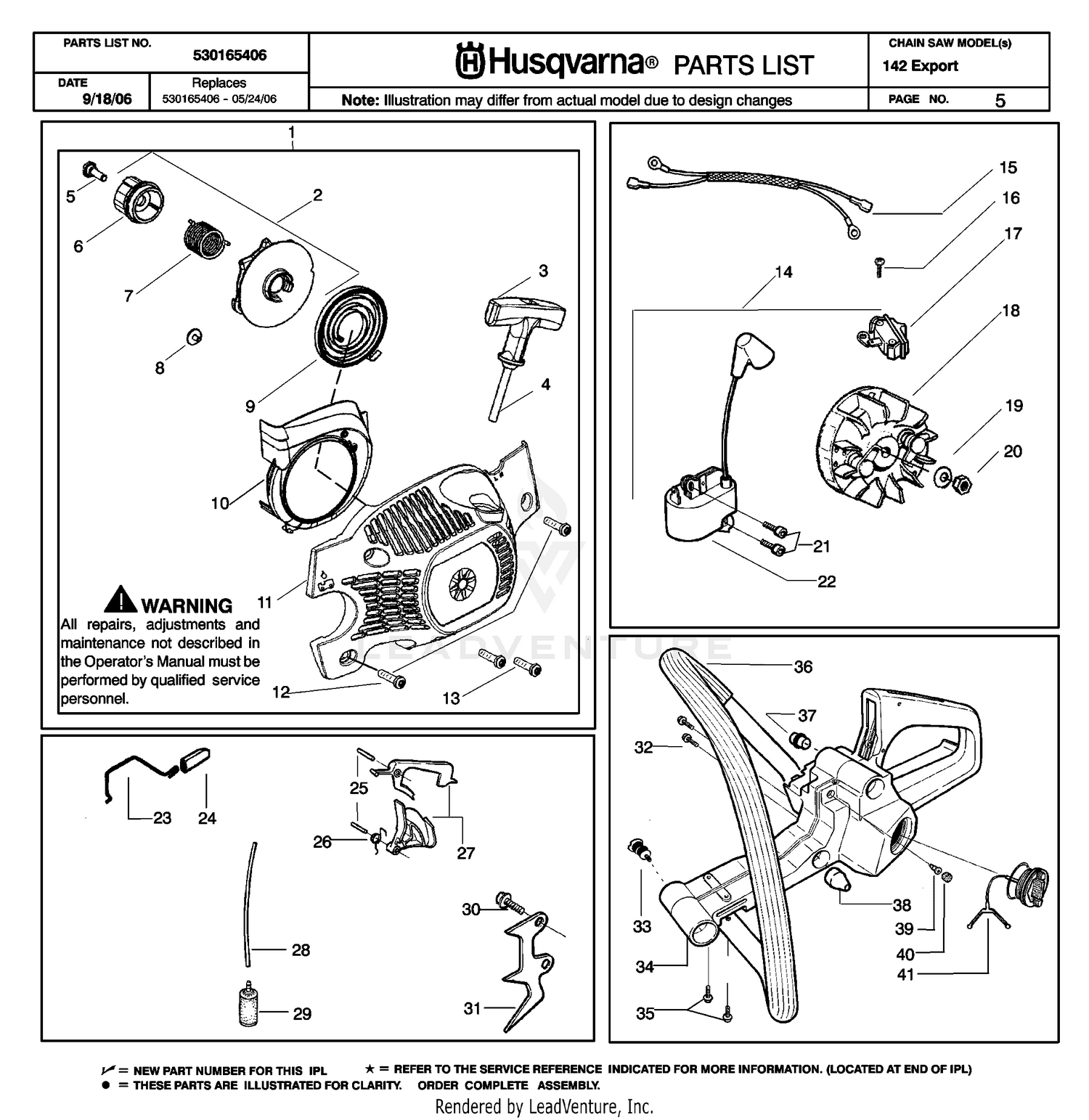

STARTER
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 530071968 | KIT FAN HSG & STARTER EPS Price: $19.99 |
| 2 | 530071966 | KIT EPS STARTER Price: $14.99 |
| 3 | 530150318 | STARTER HANDLE GRAY Price: $4.99 |
| 4 | 530069232 | KIT-ROPE Price: $4.99 |
| 5 | 530021179 | SCREW SHOULDER Price: $1.99 |
| 6 | 530059677 | HUB STARTER EPS Price: $5.99 |
| 7 | 530021180 | SPRING EPS Price: $3.99 |
| 8 | 530016080 | SCREW Price: $2.99 |
| 9 | 545008013 | SPRING STARTER This part replaces 530042095. Price: $5.99 |
| 10 | 530059959 | BAFFLE AIR Price: $4.99 |
| 11 | 530059958 | HOUSING FAN W/ EYELET Price: $12.99 |
| 12 | 530015893 | SCREW Price: $4.99 |
| 13 | 530015892 | SCREW,STRTR CVR 36/41 Price: $2.99 |
| 14 | 530071967 | KIT EPS IGNITION Price: $57.99 |
| 15 | 530403257 | LEAD WIRE ASSY Price: $4.99 |
| 16 | 530015896 | SCREW Price: $4.99 |
| 17 | 503717901 | SWITCH ON/OFF Price: $12.99 |
| 18 | 530059637 | FLYWHEEL ASSY Price: $32.99 |
| 19 | 530015127 | WASHER-FLYWHEEL Price: $3.99 |
| 20 | 530016134 | NUT-FLYWHEEL Price: $3.99 |
| 21 | 545003902 | SCREW Price: $2.99 |
| 22 | 545063901 | IGNITION MODULE This part replaces 530039239. Price: $44.99 |
| 23 | 530029869 | THROTTLE SHAFT 36/41 Price: $4.99 |
| 24 | 530029863 | THROTTLE ACTUATOR 36/41 Price: $2.99 |
| 25 | 530029860 | PIN,TRIGGER 36/41 Price: $3.99 |
| 26 | 530029861 | TRIGGER SPRING 36/41 Price: $4.99 |
| 27 | 530069587 | THROTTLE TRIGGER-KIT Price: $4.99 |
| 28 | 530069247 | HOSE. FUEL Price: $6.99 |
| 29 | 530095646 | FUEL PICK-UP ASSY This part replaces 530014497. Price: $5.99 |
| 30 | 530016439 | SCREW Price: $2.99 |
| 31 | 530014381 | SPIKE 36/41 Price: $7.99 |
| 32 | 530015940 | SCREW Price: $2.99 |
| 34 | 530052446 | TANK ASSY Price: $49.99 |
| 35 | 530015843 | SCREW Price: $2.99 |
| 36 | 530059961 | HANDLE FRONT Price: $21.99 |
| 37 | 530052439 | FRONT HANDLE ISOLATOR Price: $3.99 |
| 38 | 530029984 | SHOCK MOUNT(X2) 36/41 Price: $2.99 |
| 39 | 530026119 | VALVE-CHECK (DUCKBILL) Price: $4.99 |
| 40 | 530038264 | BRONZE PLUG Price: $3.99 |
| 41 | 530071266 | FUEL CAP KIT Price: $4.99 |
