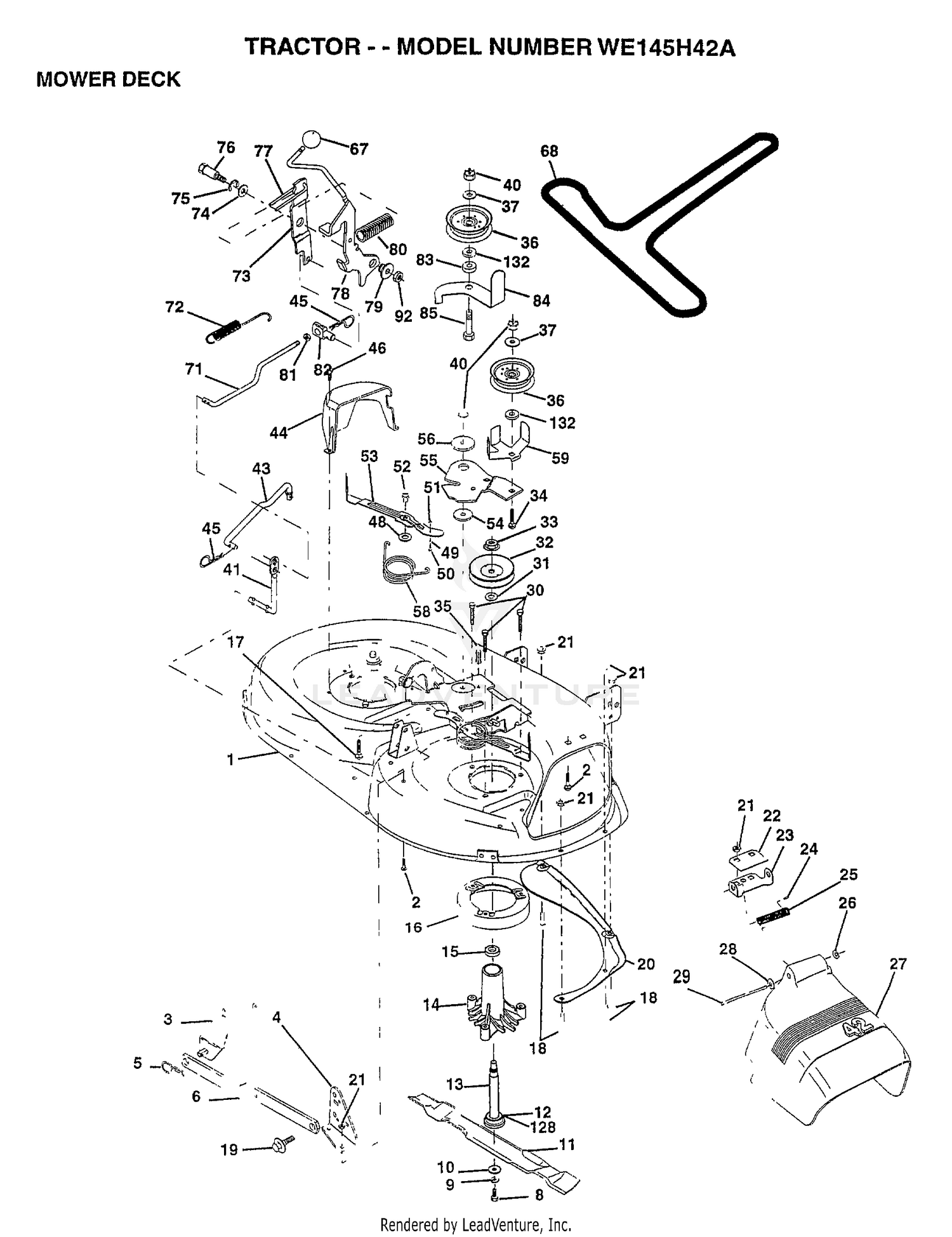

| Ref | Part Number | Description |
|---|
| 1 |
144393 |
DECK.WELD.42. Price: Call Us |
| 1 |
92-8562 |
HOOK-RESTRAINT, BOOM Price: $68.40 |
| 2 |
72140506 |
BOLT Price: Call Us |
| 2 |
92-8561 |
HOSE-HOLD IN Price: $18.31 |
| 3 |
138017 |
BRKT ASM SWAY BAR Price: Call Us |
| 3 |
92-8563 |
SPRING Price: $19.69 |
| 4 |
138440 |
BRKT DECK SW BAR Price: Call Us |
| 4 |
92-8564 |
KNOB Price: $11.17 |
| 5 |
32153-5 |
NUT-HEX Price: $1.59 |
| 5 |
4939M |
SUB= 85902 Price: Call Us |
| 6 |
130832 |
SUB= 130833 Price: Call Us |
| 7 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 8 |
42223-03 |
WEDGE TUBE ASM This part replaces 42223. Price: $99.98 |
| 8 |
850857 |
BLADE BOLT Price: Call Us |
| 9 |
10030600 |
SUB= 10040600 Price: Call Us |
| 9 |
325-5 |
SCREW-HH Price: $1.20 |
| 10 |
140296 |
WASHER.HARD.BLADE Price: Call Us |
| 10 |
42227-03 |
MAIN FRAME TUBE ASM This part replaces 42227. Price: $672.98 |
| 12 |
129895 |
BEARING.BALL Price: Call Us |
| 12 |
42217-03 |
RH BOOM MOUNT ASM This part replaces 42217. Price: $209.28 |
| 13 |
137645 |
SUB= 137646 Price: Call Us |
| 13 |
42222-03 |
LH BOOM MOUNT ASM This part replaces 42222. Price: $368.05 |
| 14 |
128774 |
HSG ASM MANDREL Price: Call Us |
| 15 |
110485X |
BEARING Price: Call Us |
| 15 |
3217-6 |
NUT-HEX Price: $1.19 |
| 16 |
140329 |
STRIPPER RND MWR Price: Call Us |
| 16 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 17 |
322-7 |
SCREW-HH Price: $0.89 |
| 17 |
72110610 |
BOLT RDHD 3/8-16 Price: Call Us |
| 18 |
42711-03 |
LH BOOM SUPPORT ASM This part replaces 42711. Price: $244.45 |
| 18 |
72140505 |
BOLT Price: Call Us |
| 19 |
132827 |
BOLT SHD 5/16-18 Price: Call Us |
| 20 |
136888 |
SUB= 918136888 Price: Call Us |
| 20 |
42707-03 |
SUPPORT BRACKET ASM This part replaces 42707. Price: $88.27 |
| 21 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 21 |
73680500 |
SUB= 73690500 Price: Call Us |
| 22 |
134753 |
STIFFENER BRKT Price: Call Us |
| 22 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 23 |
131267 |
DEFLECTOR BRKT Price: Call Us |
| 24 |
105304X |
CAP-SLEEVE LT Price: Call Us |
| 25 |
123713X |
SPRING TORSION Price: Call Us |
| 26 |
110452X |
NUT PUSH M Price: Call Us |
| 26 |
42282 |
EXTENSION BOOM PIPE ASSY Price: $152.55 |
| 27 |
130968 |
DEFLECTOR.SHIELD Price: Call Us |
| 27 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 28 |
19111016 |
WASHER Price: Call Us |
| 28 |
92-3749 |
FREEZE PLUG Price: $5.92 |
| 29 |
131491 |
HINGE ROD Price: Call Us |
| 29 |
321-10 |
SCREW-HH Price: $1.29 |
| 30 |
138776 |
SUB= 157722 Price: Call Us |
| 31 |
129963 |
WASHER Price: Call Us |
| 32 |
153535 |
PULLEY.MANDREL.42 Price: Call Us |
| 32 |
42257 |
SPACER-TUBULAR Price: $11.54 |
| 33 |
137266 |
SUB= 139729 Price: Call Us |
| 33 |
42199 |
BOLT Price: $36.91 |
| 34 |
106-5085-03 |
PLATE-BOOM, CENTER This part replaces 42234. Price: $19.41 |
| 34 |
72110614 |
BOLT Price: Call Us |
| 35 |
133835 |
XMAS TREE FASTNER Price: Call Us |
| 35 |
92-8420 |
CAP-BOOM Price: $1.92 |
| 36 |
131494 |
FLAT IDLER PULLEY Price: Call Us |
| 36 |
40493-03 |
PIPE-BOOM, CENTER This part replaces 40493. Price: $70.39 |
| 37 |
19131316 |
WASHER Price: Call Us |
| 38 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 39 |
40494 |
CLAMP ASM Price: $26.94 |
| 40 |
323-6 |
SCREW-HH Price: $0.66 |
| 40 |
73680600 |
SUB= 73690600 Price: Call Us |
| 41 |
133551 |
PIVOT ROD Price: Call Us |
| 41 |
42710-03 |
RH BOOM SUPPORT ASM This part replaces 42710. Price: $244.45 |
| 42 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 43 |
140083 |
ROD CLUTCH W/NIBS Price: Call Us |
| 43 |
42195 |
PIN-CLEVIS Price: $6.11 |
| 44 |
140088 |
GUARD MAND LH BLK Price: Call Us |
| 45 |
283-83 |
PIN-CLEVIS This part replaces 42194. Price: $9.52 |
| 45 |
4497H |
RETAINER M Price: Call Us |
| 46 |
137729 |
SCREW.1/4-20X5/8 Price: Call Us |
| 46 |
42240-03 |
STRUT ASM This part replaces 42240. Price: $54.18 |
| 47 |
301950 |
U-BOLT-SQUARE Price: $9.77 |
| 48 |
133944 |
HARD SMALL WASHER Price: Call Us |
| 48 |
3217-11 |
NUT-HEX Price: $0.95 |
| 49 |
155066 |
ROLLER ASM-CAM Price: Call Us |
| 49 |
42237 |
ADJUSTABLE CLEVIS ASM Price: $69.25 |
| 50 |
131340 |
SHOULDER BOLT Price: Call Us |
| 50 |
92-0010 |
U-BOLT Price: $10.65 |
| 51 |
3256-2 |
WASHER-FLAT Price: $0.39 |
| 51 |
69180 |
LOCKNUT Price: Call Us |
| 52 |
139888 |
BOLT.SHLD.5/16-18 Price: Call Us |
| 53 |
131845X900 |
SUB= 131845 Price: Call Us |
| 54 |
133943 |
HARDENED WASHER Price: Call Us |
| 55 |
155046 |
ARM-IDLER Price: Call Us |
| 56 |
122052X |
SPACER RETAINER Price: Call Us |
| 58 |
140086 |
SPRING TORSN BRAK Price: Call Us |
| 59 |
141043 |
GUARD IDLER TUV Price: Call Us |
| 67 |
106932X |
KNOB T(3/8 HOLE) Price: Call Us |
| 68 |
144200 |
BELT.V.T-PATH Price: Call Us |
| 71 |
142427 |
ROD CLUTCH 38/42 Price: Call Us |
| 72 |
131870 |
RETURN SPRING Price: Call Us |
| 73 |
127847 |
CLUTCH ARM SECOND Price: Call Us |
| 74 |
121748X |
WASHER Price: Call Us |
| 75 |
12000029 |
RING Price: Call Us |
| 76 |
128903 |
SHOULDER BOLT Price: Call Us |
| 77 |
127845 |
SPRING KEEPER Price: Call Us |
| 78 |
154809 |
LEVER ASM-CLUTCH Price: Call Us |
| 79 |
127498 |
BUSHING Price: Call Us |
| 80 |
153701 |
SPRING.CLUTCH.MWR Price: Call Us |
| 81 |
73350600 |
NUT Price: Call Us |
| 82 |
142028 |
TRUNION ADJ Price: Call Us |
| 83 |
120958X |
WASHER Price: Call Us |
| 85 |
72140618 |
BOLT RDHD 3/8-16 Price: Call Us |
| 92 |
73800600 |
NUT Price: Call Us |
| 128 |
153390 |
WASHER.FELT. Price: Call Us |
| 132 |
19132203 |
WASHER GT Price: Call Us |
| 130794 |
MANDREL |
ASM Price: Call Us 130794 |
