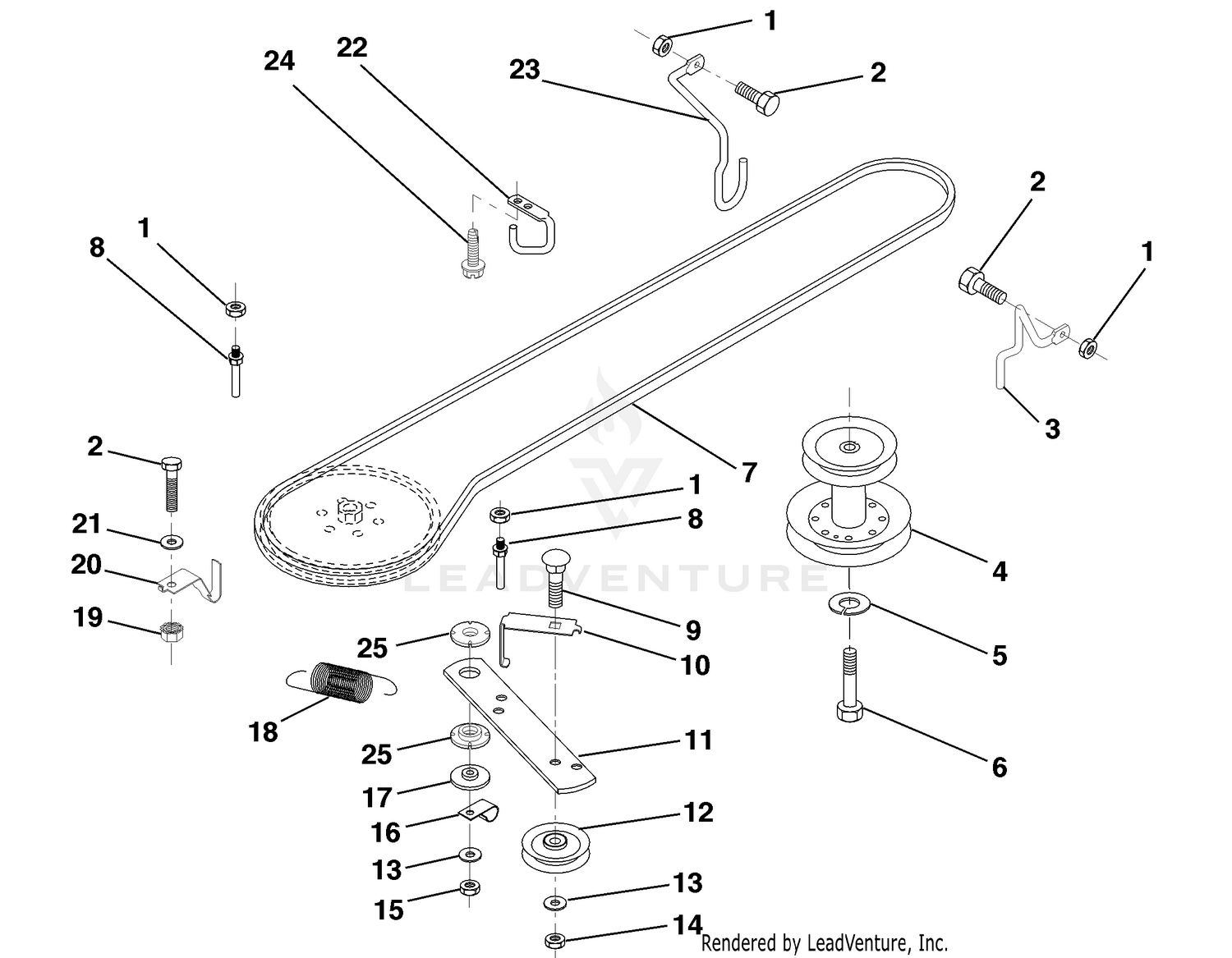

| Ref | Part Number | Description |
|---|
| 1 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 1 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 2 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 2 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874760512. Price: $3.99 |
| 3 |
322-10 |
SCREW-HH Price: $0.70 |
| 3 |
532141342 |
KEEPER/MOWER DRIVE RH Price: $4.99 |
| 4 |
32105-21 |
SCREW-HH Price: $1.09 |
| 4 |
532138029 |
PULLEY.ENGINE.36/38 LR Price: $48.99 |
| 5 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 6 |
29-6162 |
SWITCH-MICRO Price: $107.13 |
| 6 |
871170744 |
Bolt Hex 7/16-20 Gr. 5 Price: $2.99 |
| 7 |
532419271 |
V-BELT.DRIVE.MOWER.30" This part replaces 532126520. Price: $49.99 |
| 7 |
75-4130 |
PLATE-SWITCH Price: $13.26 |
| 8 |
532156109 |
BELT KEEPER KIT This part replaces 532123405. Price: $3.99 |
| 8 |
76-9430-03 |
SPRING-EXTENTION This part replaces 76-9430. Price: $28.14 |
| 9 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 9 |
872140612 |
Bolt, Carr. 3/8-16 UNC x 1-1/2 Price: $2.99 |
| 10 |
322-7 |
SCREW-HH Price: $0.89 |
| 10 |
532123396 |
KEEPER.BELT.GROUND.DRIVE.IDLER Price: $4.99 |
| 11 |
251-259 |
BEARING-BALL Price: $13.67 |
| 11 |
532150926 |
ARM, GROUND DRIVE CLUTCH Price: $4.69 |
| 12 |
532123674 |
PULLEY.IDLER.FLAT Price: $24.99 |
| 12 |
75-5470 |
SPACER-BEARING Price: $3.06 |
| 13 |
32144-22 |
SCREW Price: $0.75 |
| 13 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 14 |
596322601 |
Nuts This part replaces 873930600. Price: $2.99 |
| 15 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 15 |
75-4080-03 |
PLATE-TRACTION ASM This part replaces 75-4080. Price: $56.27 |
| 16 |
532126471 |
CLIP,INSULATOR Price: $3.99 |
| 16 |
85-9900-03 |
PLATE-ANCHOR, SPRING This part replaces 85-9900. Price: $21.09 |
| 17 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 17 |
532150932 |
SPACER, RETAINER Price: $2.99 |
| 18 |
322-3 |
SCREW-HH Price: $0.79 |
| 18 |
532131459 |
SPRING.EXTENSION Price: $4.99 |
| 19 |
256-113 |
BUSHING-FLANGE Price: $5.58 |
| 19 |
596040501 |
Hardware This part replaces 873510500. Price: $2.99 |
| 20 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 20 |
532139919 |
KEEPER-T/A GROUND DRIVE BELT Price: $2.99 |
| 21 |
819111016 |
Washer 11/32 x 5/8 x 16 Ga. Price: $5.99 |
| 21 |
92-2581 |
DISCONTINUED Price: Call Us |
| 22 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 22 |
532123404 |
KEEPER,FRA DR BEL Price: $3.22 |
| 23 |
532140916 |
KEEPER-MOWER DRIVE LH Price: $5.99 |
| 23 |
76-8640 |
STUD-TRACTION Price: $23.60 |
| 24 |
3296-9 |
NUT-HEX Price: $0.25 |
| 24 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 25 |
75-4100-03 |
CONTROL-PUMP This part replaces 75-4100. Price: $198.81 |
| 26 |
23-2270 |
BUSHING-RUBBER Price: $17.07 |
| 27 |
85-9910 |
EYEBOLT Price: $28.77 |
