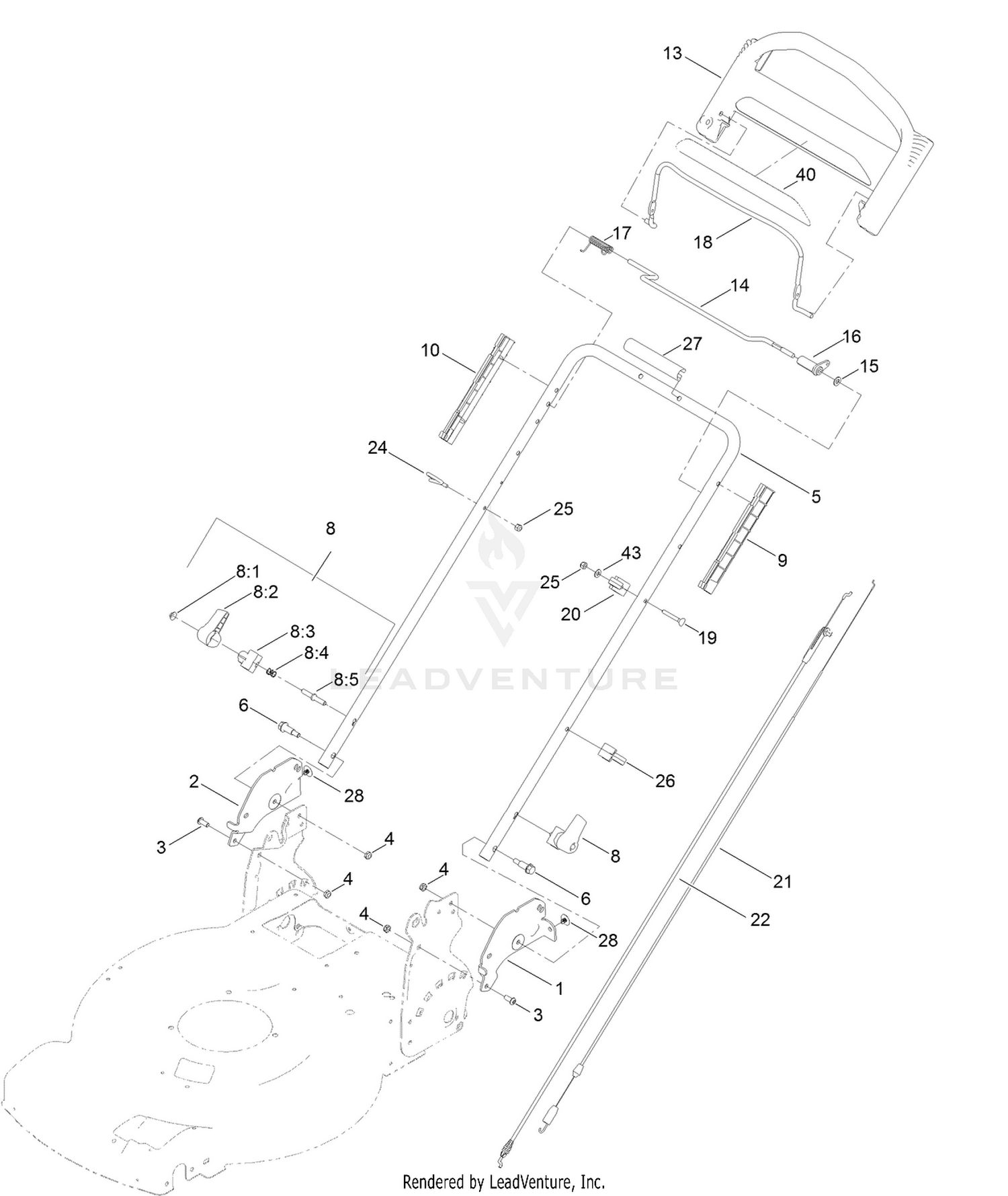

Handle Assembly
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 137-9109-03 | PLATE-HANDLE, LH Price: $12.99 |
| 2 | 137-9110-03 | PLATE-HANDLE, RH Price: $12.99 |
| 3 | 3274-55 | SCREW-HSBH Price: $3.19 |
| 4 | 137-3089 | NUT-HEX Price: $0.39 |
| 5 | 132-4471-05 | HANDLE Price: $58.99 |
| 6 | 140-3759 | BOLT-SHOULDER, HHF This part replaces 130-2344. Price: $1.19 |
| 8 | 138-3249 | QUICK RELEASE ASM Price: $10.99 |
| 9 | 105-6842 | GUIDE-LH Price: $7.99 |
| 10 | 105-6841 | GUIDE-RH Price: $7.99 |
| 13 | 104-8678 | HANDLE-CONTROL Price: $78.99 |
| 14 | 136-7150 | BAR-CONTROL, TRACTION Price: $15.99 |
| 15 | 120-9683 | WASHER-PLAIN Price: $0.25 |
| 16 | 99-1589 | LEVER-TRACTION Price: $7.19 |
| 17 | 136-7166 | SPRING-TORSION Price: $2.99 |
| 18 | 131-0880-03 | BAIL-BRAKE Price: $23.99 |
| 19 | 137-3109 | BOLT-CARR Price: $1.59 |
| 20 | 136-5864 | ANCHOR-CABLE Price: $2.69 |
| 21 | 115-8435 | CABLE-TRACTION Price: $33.99 |
| 22 | 115-8437 | CABLE-BRAKE Price: $34.99 |
| 24 | 86-9671 | GUIDE-ROPE Price: $3.99 |
| 25 | 137-3094 | NUT-HEX Price: $0.39 |
| 26 | 114-7988 | GUIDE-CABLE Price: $2.59 |
| 27 | 131-4551 | HANDLE-COVER Price: $1.39 |
| 28 | 130-6721 | CLIP-TREE Price: $0.59 |
| 40 | 133-1949 | DECAL Price: Call Us |
