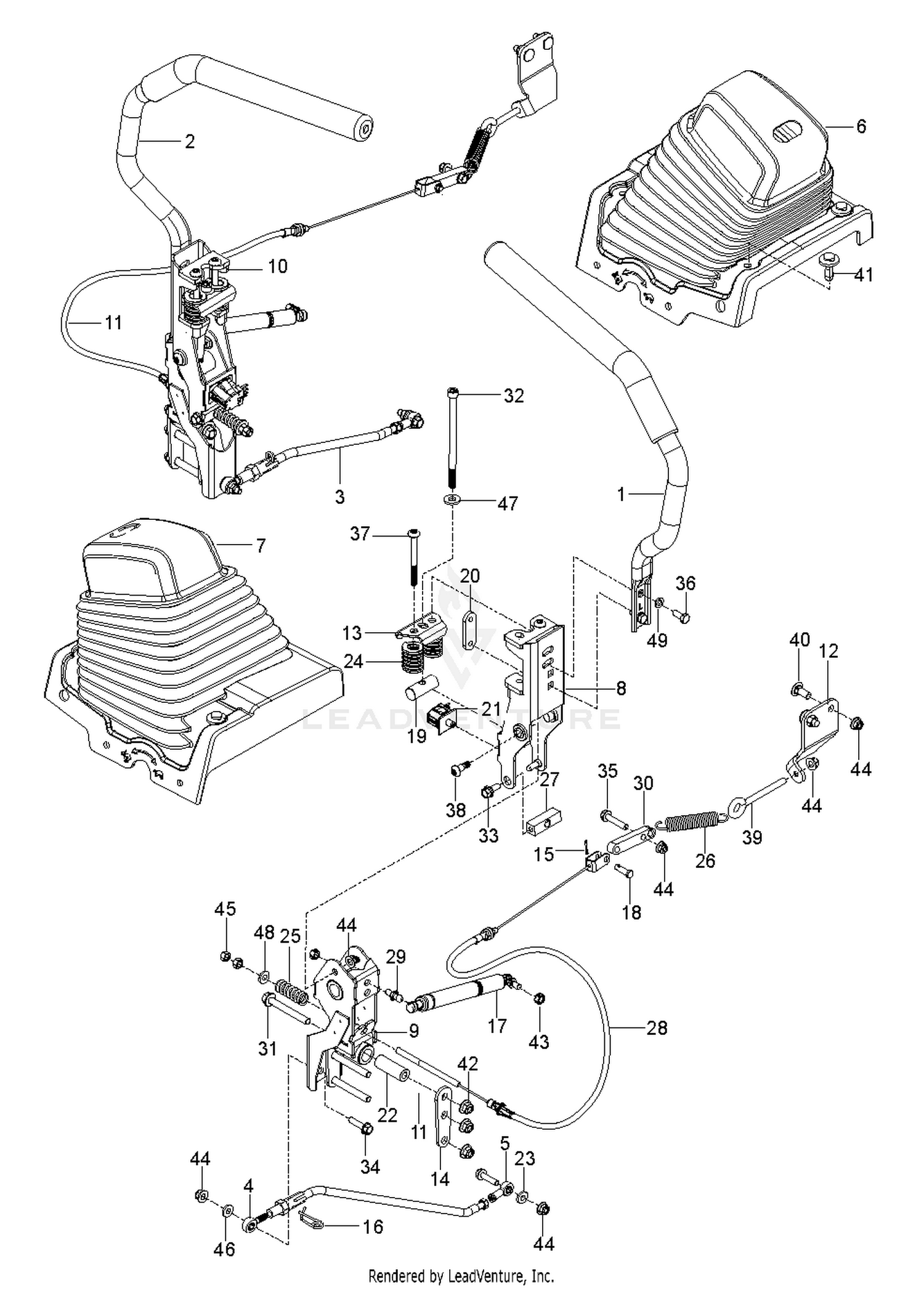

| Ref | Part Number | Description |
|---|
| 1 |
582475501 |
LEVER.ASM.DRIVE.LH Price: $44.99 |
| 1 |
98-5398 |
LATCH Price: $32.53 |
| 2 |
103-2897 |
LATCH-CATCH Price: $7.99 |
| 2 |
582475502 |
LEVER.ASM.DRIVE.RH Price: $44.99 |
| 3 |
103-2898 |
LATCH-RUBBER Price: $32.99 |
| 3 |
592653702 |
KIT.CONTROL.LINKAGE.RIGHT Price: $32.99 |
| 4 |
588692502 |
ROD.END.MALE.LH.THREAD Price: $8.99 |
| 5 |
579764601 |
JOINT.HEIM.FEML.5/16.RH.THREAD Price: $7.99 |
| 6 |
591193301 |
KIT.SERVICE.LEVER.BELLOW.LH Price: $74.99 |
| 7 |
591193302 |
KIT.SERVICE.LEVER.BELLOW.RH Price: $74.99 |
| 8 |
111-8495 |
COVER-ENGINE Price: $927.52 |
| 9 |
111-9053-03 |
TUBE-FRONT, COVER FRAME Price: $164.79 |
| 9 |
592653901 |
KIT.CARRIER.LWR.W/BUSHINGS Price: $54.99 |
| 10 |
111-9054-03 |
TUBE-REAR, COVER FRAME Price: $183.39 |
| 10 |
592724001 |
KIT.CONTROL.MECHANISM.LEFT Price: $199.99 |
| 11 |
592653501 |
KIT.CABLE.BRAKE.PARKING.LEFT Price: $29.99 |
| 12 |
111-9058-03 |
HINGE-COVER, LH Price: $66.43 |
| 12 |
582477802 |
BRACKET.PNT.RETRN.SPRNG.LH.BLK Price: $11.99 |
| 13 |
111-9060-03 |
HINGE-COVER, RH Price: $66.43 |
| 13 |
582476902 |
Brackets This part replaces 582476901. Price: $8.99 |
| 14 |
111-9103-03 |
BRACKET-COVER, LATCH Price: $26.56 |
| 14 |
582475102 |
BRACKET.PNT.CONTROLS.MTG.EDIP Price: $5.99 |
| 15 |
111-9117-03 |
SCREEN-COVER, ENGINE Price: $122.25 |
| 15 |
587225301 |
PIN COTTER;LOCKING;BOWTIE;1IN Price: $2.99 |
| 16 |
111-9331-03 |
MOUNT-COVER, FRONT (LH) Price: $23.26 |
| 16 |
537602401 |
R-CLIP. This part replaces 582551901. Price: $1.99 |
| 17 |
111-9332-03 |
MOUNT-COVER, FRONT (RH) Price: $23.26 |
| 17 |
588775401 |
DAMPER Price: $49.99 |
| 18 |
111-9178 |
PIN-HINGE, COVER Price: $11.30 |
| 18 |
582477402 |
GSPW Pins This part replaces 582477401. Price: $3.99 |
| 19 |
117-2382 |
PLUG-PLASTIC Price: $0.69 |
| 19 |
589505102 |
Pivots This part replaces 589505101. Price: $2.99 |
| 20 |
09263 |
WASHER 1/4 X 7/8 X .08" THK Price: $1.34 |
| 20 |
589489601 |
RETAINER Price: $7.99 |
| 21 |
09267 |
WASHER 5/16 X 7/8 X 15G GALV Price: $1.39 |
| 21 |
589500901 |
SWITCH.SNPMNT.DELTA.NCNC.PZREF Price: $8.99 |
| 22 |
09364 |
SETSCREW M6 X 25 Price: $1.34 |
| 22 |
582475002 |
Spacers This part replaces 582475001. Price: $5.99 |
| 23 |
09438 |
NUT M6 X 1.5 PLAIN Price: $1.39 |
| 23 |
582711304 |
Spacers This part replaces 582711303. Price: $2.99 |
| 24 |
09441 |
NUT M8 NYL INSERT T TYPE Price: $1.39 |
| 24 |
582477002 |
SPRING 1.25"ODX1.5"L This part replaces 582477001. Price: $19.99 |
| 25 |
532151332 |
SPRING, BRAKE ROD Price: $4.99 |
| 25 |
HY09485 |
WASHER M12 PLAIN Price: $1.40 |
| 26 |
09645 |
M6 X 35 HEX.HD.SETSCREW Price: $1.40 |
| 26 |
546395801 |
SPRING RETURN, PEDAL, BRK CLR. This part replaces 582477701. Price: $1.99 |
| 27 |
582477202 |
Cables This part replaces 582477201. Price: $4.99 |
| 27 |
H192040 |
R CLIP Price: $3.91 |
| 28 |
582477501 |
CABLE.BRAKE.PARK Price: $27.99 |
| 28 |
ZHS1H025U |
SCREW SOC HD BUTTON M8*25 Price: $1.38 |
| 29 |
09472 |
WASHER-PLAIN Price: $1.25 |
| 29 |
594056301 |
Studs This part replaces 539110607. Price: $2.99 |
| 30 |
582477602 |
Brackets This part replaces 582477601. Price: $17.99 |
| 30 |
ZWP1H000U |
WASHER (M8) Price: $1.40 |
| 31 |
582476801 |
BEARING.FLG.3/8.SHAFT.1/2.HSG Price: $2.99 |
| 31 |
94-8099 |
DECAL Price: $16.38 |
| 32 |
111-3557-03 |
COVER AIR INTAKE Price: $7.07 |
| 32 |
539131518 |
BEARING, FLANGE Price: $9.99 |
| 33 |
03162 |
STEEL BOLT Price: $1.39 |
| 33 |
596240701 |
Bolts This part replaces 539110303. Price: $3.99 |
| 34 |
111-3728 |
DECAL - TORO LOGO Price: $4.34 |
| 34 |
525544002 |
Bolts This part replaces 525544001. Price: $3.99 |
| 35 |
09430 |
NUT M5 NYL INS T TYPE Price: $1.25 |
| 35 |
525465402 |
Screws This part replaces 525465401. Price: $1.99 |
| 36 |
09470 |
WASHER M5 X 10 X 1 ZN & PASS Price: $1.25 |
| 36 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 539976934. Price: $3.99 |
| 37 |
09784 |
SCREW SOC HD BUTTON M6*16 Price: $1.35 |
| 37 |
582477102 |
Screws This part replaces 582477101. Price: $3.99 |
| 38 |
582476402 |
Screws This part replaces 582476401. Price: $3.99 |
| 38 |
ZDH1E020U |
HEX HD SET SCREW M5*20 Price: $1.31 |
| 39 |
111-9400 |
DECAL Price: $11.27 |
| 39 |
596240801 |
GSPW Bolts This part replaces 539115574. Price: $3.99 |
| 40 |
111-9464-03 |
BRACKET-COVER, LOCK Price: $20.59 |
| 40 |
595901501 |
Bolts This part replaces 539990208. Price: $3.99 |
| 41 |
111-9468-03 |
BRACKET-COVER, LATCH (RH) Price: $22.58 |
| 41 |
577117702 |
Hardware This part replaces 577117701. Price: $3.99 |
| 42 |
09363 |
SETSCREW M6 X 20 Price: $1.31 |
| 42 |
589505602 |
Screws This part replaces 589505601. Price: $7.99 |
| 43 |
09369 |
SETSCREW M8 X 30 Price: $1.40 |
| 43 |
582482901 |
RIVET.PUSH.PIN.0.25IN.HOLE Price: $2.99 |
| 44 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 44 |
950889 |
DECAL WARNING HOT SURFACE Price: $22.13 |
| 45 |
111-9481 |
HEAT SHIELD Price: $69.11 |
| 45 |
596040901 |
Hardware This part replaces 539990223. Price: $2.99 |
| 46 |
111-9523-03 |
PLATE-COVER, SEAL Price: Call Us |
| 47 |
111-9524 |
SEAL-FRAME Price: $18.98 |
| 47 |
596580701 |
Nuts This part replaces 539990184. Price: $2.99 |
| 48 |
111-9536 |
HEAT-SHIELD, LOWER Price: $15.66 |
| 48 |
596134901 |
GSPH This part replaces 539990692. Price: $2.99 |
| 49 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 539990187. Price: $2.99 |
| 50 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111116. Price: $2.99 |
| 51 |
522023401 |
WASHER, 3/8 THICK Price: $2.99 |
| 582477804 |
BRACKET.PNT.RETRN.SPRNG.RH.BLK |
Price: $11.99 582477804 |
| 592653701 |
KIT.CONTROL.LINKAGE.LEFT |
Price: $32.99 592653701 |
| 592724002 |
KIT.CONTROL.MECHANISM.RIGHT |
Price: $199.99 592724002 |
