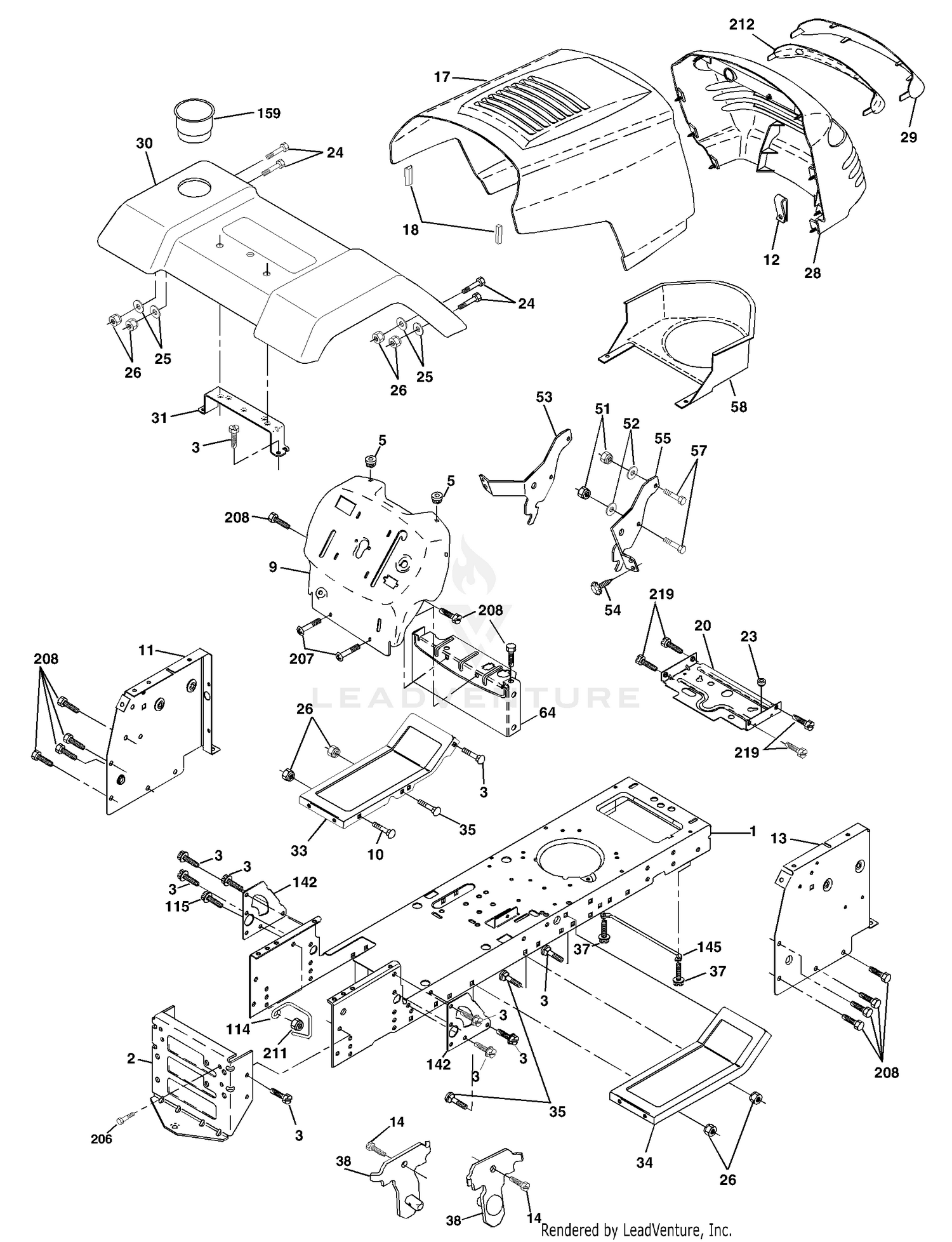

| Ref | Part Number | Description |
|---|
| 1 |
110-4817 |
KIT - AXLE HOUSING This part replaces 95-7538. Price: $657.17 |
| 1 |
174619 |
Chassis Price: Call Us |
| 2 |
115-0622 |
SEAL - OIL This part replaces 100-2557. Price: $10.23 |
| 2 |
176554 |
Drawbar Price: Call Us |
| 3 |
104-2378 |
BUSHING Price: $40.73 |
| 3 |
17060612 |
Screw 3/8-16 X .75 Price: Call Us |
| 5 |
104-2376 |
KNUCKLE ASM Price: $68.43 |
| 5 |
155272 |
Bumper Hood/Dash Price: Call Us |
| 6 |
104-2374 |
BOLT Price: $6.33 |
| 7 |
100-3768 |
LH STEERING ARM ASM Price: $207.28 |
| 8 |
100-3766 |
RH STEERING ARM ASM Price: $207.28 |
| 9 |
168337X012 |
Dash P/L Price: Call Us |
| 10 |
72140608 |
Bolt Carriage 3/8-16 x 1 Price: Call Us |
| 10 |
95-7547 |
SHIM 0.1 Price: $2.53 |
| 10 |
95-7548 |
SHIM 0.2 Price: $3.52 |
| 10 |
95-7549 |
SHIM 0.3 Price: $3.82 |
| 11 |
174996 |
Panel Dash Lh Price: Call Us |
| 11 |
99-7597 |
PIN-DOWEL Price: $3.74 |
| 12 |
104-2375 |
BOLT Price: $18.54 |
| 12 |
145660 |
Clip Tinnerman Price: Call Us |
| 13 |
172105X010 |
Panel Dash Rh Price: Call Us |
| 13 |
99-7599 |
BOLT Price: $3.17 |
| 14 |
17490608 |
Screw Thdrol 3/8 x 16 x 1/2 Price: Call Us |
| 14 |
99-7525 |
STUD Price: $7.03 |
| 15 |
99-7526 |
NUT Price: $1.29 |
| 16 |
99-7527 |
WASHER-SPRING Price: $1.02 |
| 17 |
159639X428 |
Hood LT/PL Price: Call Us |
| 18 |
106-1141 |
STEERING TIE ROD ASM This part replaces 100-3762. Price: $642.02 |
| 18 |
126938X |
Bumper Hood Price: Call Us |
| 20 |
180679 |
Plate Mtg Battery Fuel Tank Fr Price: Call Us |
| 23 |
124028X |
Bushing Price: Call Us |
| 24 |
74780616 |
Bolt Fin Hex 3/8-16 x 1 Gr 5 Price: Call Us |
| 25 |
19131312 |
Washer 13/32 X 13/16 X 12 Ga Price: Call Us |
| 26 |
73800600 |
Nut Lock Hex W/Ins 3/8-16 Unc Price: Call Us |
| 28 |
179844 |
Grille/Lens Asm Price: Call Us |
| 29 |
170472X599 |
Lens LT/PL Price: Call Us |
| 30 |
169470X428 |
Fender Footrest Pnt Price: Call Us |
| 31 |
136619 |
Bracket Fender Price: Call Us |
| 33 |
179716X428 |
Footrest Pnt Lh Price: Call Us |
| 34 |
179717X428 |
Footrest Pnt Rh Price: Call Us |
| 35 |
72110606 |
Bolt Rdhd Sht Sqnk 3/8-16 x 3/4 Price: Call Us |
| 37 |
17490508 |
Screw Thdrol 6/16-18 x 1/2 TYT Price: Call Us |
| 38 |
175710 |
Bracket Asm Pivot Mower Rear Price: Call Us |
| 51 |
73800400 |
Nut Lock Hex W/Ins 1/4-20 Price: Call Us |
| 52 |
19091416 |
Washer 9/32 x 7/8 x 16 Ga. Price: Call Us |
| 53 |
144697 |
Bracjet Grukke Lh Price: Call Us |
| 54 |
161464 |
Screw Hex Wshd 8-18 x 7/8 Price: Call Us |
| 55 |
144696 |
Bracket Grille Rh Price: Call Us |
| 57 |
74780412 |
Bolt Hex 1/4-20 x 3/4 Price: Call Us |
| 58 |
174930 |
Duct Air Price: Call Us |
| 64 |
154798 |
Dash Lower STLT Price: Call Us |
| 114 |
158112 |
Keeper Belt Rear LH Price: Call Us |
| 115 |
17060620 |
Screw 3/8-16 x 1-1/4 Price: Call Us |
| 142 |
175702 |
Plate Reinforcement STLT Price: Call Us |
| 145 |
156524 |
Rod Pivot Chassis/Hood Price: Call Us |
| 159 |
169473X428 |
Cupholder Price: Call Us |
| 206 |
170165 |
Bolt Shoulder 5/16-18 Price: Call Us |
| 207 |
17670508 |
Screw Thdrol 5/16-18 x 1/2 Price: Call Us |
| 208 |
17670608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 211 |
145212 |
Nut Hexflange Lock Price: Call Us |
| 212 |
156229 |
Insert Lens Relect Price: Call Us |
| 219 |
17000512 |
Screw 5/16-18 x 3/4 Price: Call Us |
