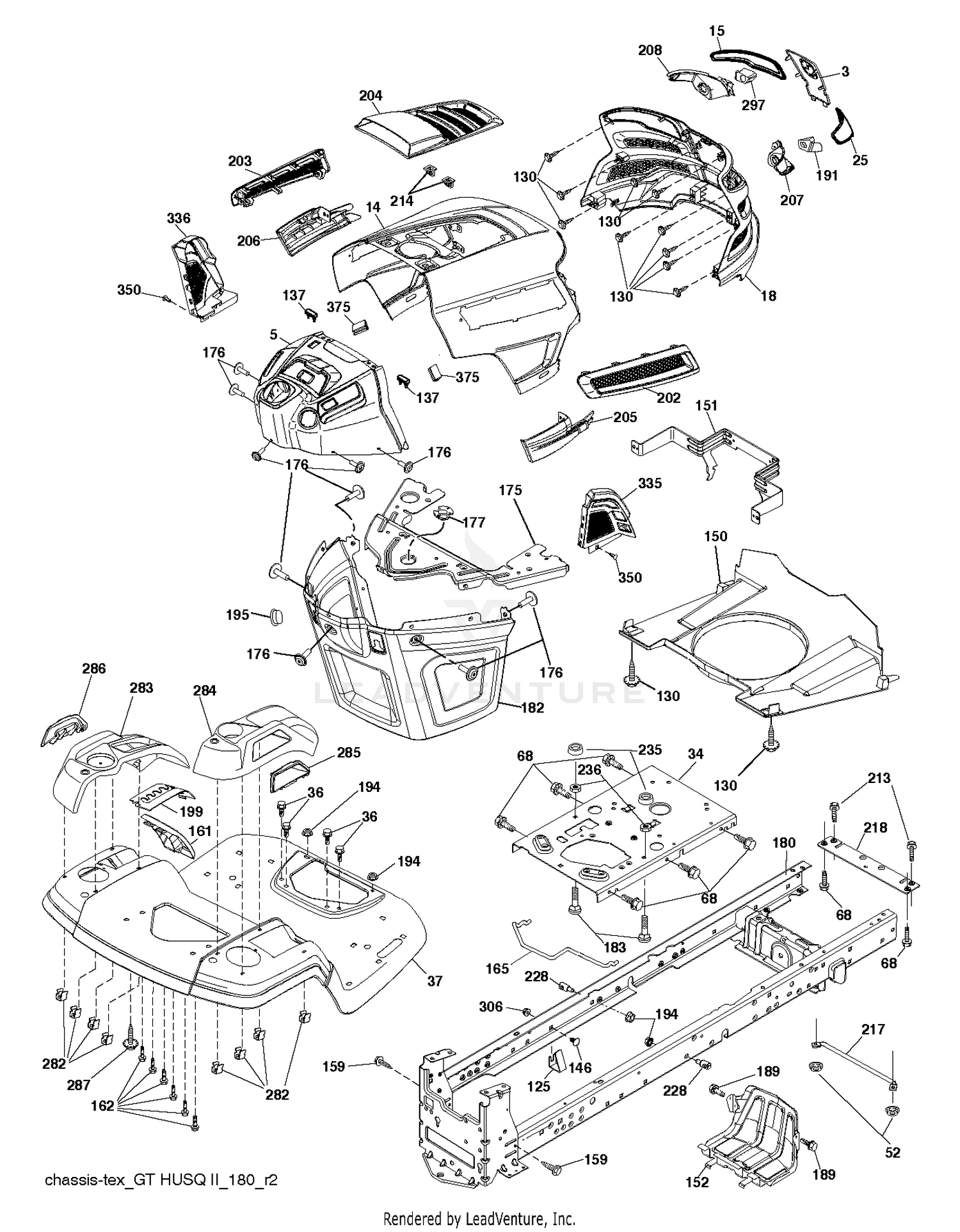

| Ref | Part Number | Description |
|---|
| 1 |
304-46 |
DRAINCOCK Price: $7.55 |
| 2 |
32104-116 |
SCREW-HWHTF Price: $0.55 |
| 3 |
32128-44 |
NUT Price: $2.69 |
| 3 |
532444481 |
APPLIQUE.SUBASM.GT.HUSQ.II Price: $22.99 |
| 4 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 5 |
119-2028 |
RADIATOR AND OIL COOLER ASM Price: $1,787.22 |
| 5 |
590748811 |
DASH.UPR.GT2.SM.PTO.MC.HR.498 Price: $44.99 |
| 6 |
121-3556-0P |
SHROUD-FAN, UPPER This part replaces 121-3556-03. Price: $127.39 |
| 7 |
121-3552-0P |
SHROUD-FAN, LOWER This part replaces 121-3552-03. Price: $184.71 |
| 8 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 9 |
92-2379 |
CLAMP-HOSE Price: $0.34 |
| 10 |
120-3530-0P |
BRACKET-RADIATOR, BOTTOM This part replaces 120-3530-03. Price: $78.45 |
| 13 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 14 |
121-3557-0P |
BRACKET-RESEVOIR This part replaces 121-3557-03. Price: $26.66 |
| 14 |
587483301 |
KIT.HOOD.ASM.HUSQ.GT.TEX.668 This part replaces 532441177. Price: $74.99 |
| 15 |
532439733 |
LENS.HEADLIGHT.LH.GTII.2011 Price: $11.99 |
| 18 |
597247201 |
Grilles This part replaces 587523401. Price: $84.99 |
| 20 |
95-8702-0P |
SHIELD-RADIATOR, LOWER This part replaces 95-8702-03. Price: $47.95 |
| 21 |
99-3497 |
MAGNET Price: $20.22 |
| 23 |
121-3558 |
HOSE-RADIATOR, UPPER Price: $46.41 |
| 24 |
120-3399 |
HOSE-RADIATOR, LOWER Price: $41.62 |
| 25 |
2412-34 |
CLAMP-HOSE Price: $2.14 |
| 25 |
532443385 |
LENS.HEADLIGHT.RH.GTII.2011 Price: $11.99 |
| 26 |
340-9 |
FITTING-HYD, STRAIGHT Price: $67.47 |
| 27 |
340-142 |
FITTING-ELBOW-90 Price: $65.90 |
| 28 |
92-7536 |
HOSE-HYD Price: $196.76 |
| 33 |
99-7435 |
RELAY Price: $32.43 |
| 34 |
32105-13 |
SCREW-HWH Price: $1.59 |
| 34 |
580910801 |
PLATE.ENGINE.WELDED.CHASSIS Price: $59.99 |
| 35 |
109-0274 |
HOSE-FUEL Price: $12.99 |
| 36 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 37 |
121-3609 |
TUBE-HYD Price: $143.00 |
| 37 |
532423694 |
FENDER.TLT.FS.W/CPH/FW/RSF.ORN This part replaces 532441178. Price: $179.99 |
| 38 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 40 |
108-0638 |
BOTTLE-OVERFLOW This part replaces 104-9318. Price: $33.20 |
| 41 |
93-6681 |
DECAL-WARNING, FAN Price: $11.51 |
| 42 |
32128-20 |
NUT-HF Price: $0.99 |
| 43 |
120-3529-03 |
BRACKET-RADIATOR, TOP Price: $62.39 |
| 44 |
120-3531-0P |
BRACKET-RADIATOR, LH This part replaces 120-3531-03. Price: $54.92 |
| 52 |
596040501 |
Hardware Price: $2.99 |
| 68 |
596030701 |
Screws Price: $2.99 |
| 125 |
581684801 |
CLIP.FUEL.LINE Price: $2.99 |
| 130 |
596321701 |
Screws Price: $2.99 |
| 137 |
532407590 |
BUMPER DASH Price: $3.99 |
| 146 |
581857901 |
BOLT.RDHD.SHT.SQNK.3/8-16X5/8 Price: $3.99 |
| 150 |
532439774 |
AIR.DUCT.GTV.BLACK Price: $39.99 |
| 151 |
531077401 |
SERVICE KIT PIVOT BRACKET BRAC This part replaces 532436670. Price: $37.99 |
| 152 |
532439870 |
SHIELD.BROWNING.PNT.GT.V2 Price: $14.99 |
| 159 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 161 |
532439781 |
WINDOW.FUEL.LT.HUSQ.TEX.498 Price: $5.99 |
| 162 |
596134101 |
Screws Price: $2.99 |
| 165 |
532196826 |
SUPPORT.TANK.REAR.W/TEX Price: $22.99 |
| 175 |
590607702 |
PLATE.PNT.CROSSMEMBER.HUSQ/PRE Price: $32.99 |
| 176 |
532400776 |
SCREW.#10-24X5/8.RN.QU Price: $4.99 |
| 177 |
532195228 |
BUSHING STEERING Price: $4.99 |
| 180 |
579841501 |
KITS.CHASSIS.WELD.SERVICE This part replaces 532195457. Price: $219.99 |
| 182 |
532406859 |
DASH.LOWER.COMMON.12V.ADAPTOR Price: $84.99 |
| 183 |
595305701 |
Screws Price: $3.99 |
| 189 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 191 |
532437455 |
INSERT.REFLECTIVE.RH.HUSQ.GTII Price: $14.99 |
| 194 |
596135701 |
GSPW Nuts Price: $2.99 |
| 199 |
532413485 |
PLATE.DECK.LIFT.HUSQ.LT Price: $9.99 |
| 202 |
532439728 |
VENT.SIDE.RH.GT.HUSQ.II. Price: $14.99 |
| 203 |
532439727 |
VENT.SIDE.LH.GT.HUSQ.II.498 Price: $14.99 |
| 204 |
587485801 |
VENT.TOP.ASM.HUSQ.GT2 Price: $22.99 |
| 205 |
532439730 |
SIDE.TRIM.RH.GT.HUSQ.II Price: $12.99 |
| 206 |
532439729 |
SIDE.TRIM.LH.GT.HUSQ.II.GRAY Price: $14.99 |
| 207 |
587464801 |
HEADLIGHT.CUP.BEZEL.HUS.GT2.RH Price: $11.99 |
| 208 |
587464501 |
HEADLIGHT.CUP.BEZEL.HUS.GT2.LH Price: $11.99 |
| 213 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- Price: $3.99 |
| 214 |
532199145 |
CLIP.RETAINER.TINNER. Price: $2.99 |
| 217 |
532409167 |
ROD.PIVOT.HOOD Price: $9.99 |
| 218 |
532196395 |
X-PIECE.HOOD.STOP.NON/ Price: $6.99 |
| 228 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 235 |
596564201 |
Spacers Price: $4.99 |
| 236 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 282 |
532414110 |
CLIP.RETAINER.CONSOLE.LT.HUSQ Price: $2.99 |
| 283 |
532439151 |
CONSOLE.ASM.LFT.RSF.HUSQ.LT This part replaces 532442039. Price: $37.99 |
| 284 |
532439150 |
CONSOLE.SHFT.PDL.CNTRL.HUSQ.LT This part replaces 532439823. Price: $39.99 |
| 285 |
532416315 |
CONSOLE INSERT RH Price: $14.99 |
| 286 |
532416317 |
CONSOLE.INSRT.LH.HUSQ.LT.BLACK Price: $11.99 |
| 287 |
817600406 |
SCREW 1/4X20 Price: $2.99 |
| 297 |
532437456 |
INSERT.REFLECTIVE.LH.HUSQ.GTII Price: $14.99 |
| 306 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 335 |
532448204 |
COVER.LOWER.DASH.RH.BLACK Price: $24.99 |
| 336 |
532445309 |
COVER-LH.LOWER.DASH.GT2.BLACK Price: $24.99 |
| 350 |
532445143 |
CLIP.X-MAS.TREE Price: $3.99 |
| 375 |
586908201 |
BUMPER CLIP-ON. DASH 1" Price: $3.99 |
