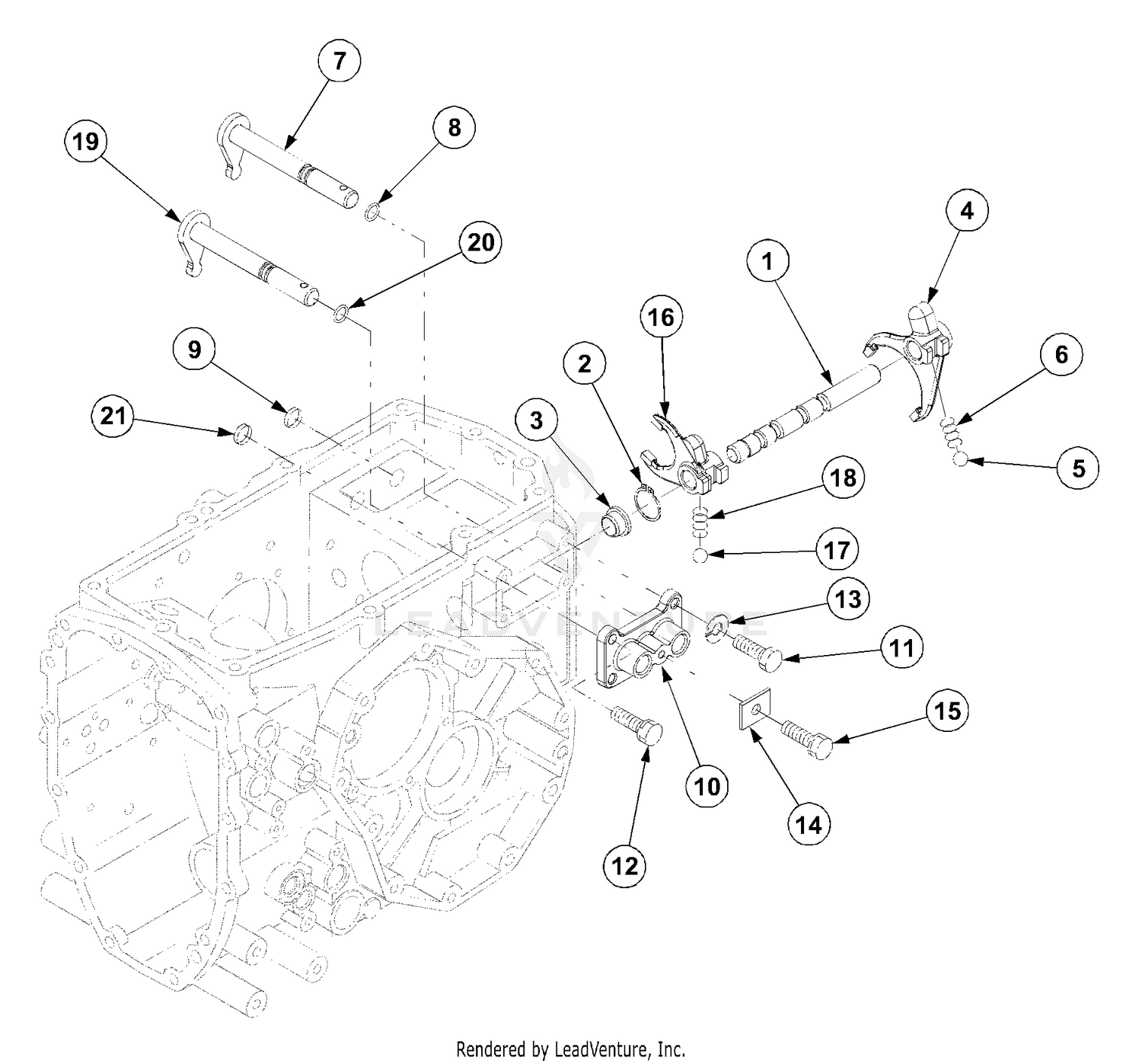

| Ref | Part Number | Description |
|---|
| 1 |
692178 |
Cylinder ASM Price: Call Us |
| 1 |
MA-19571731000 |
RAIL-PTO S Not Available Price: |
| 2 |
195223 |
Shaft Asm., Lift Price: Call Us |
| 2 |
808534 |
Bushing-Seal Kit Price: Call Us |
| 2 |
MA-07400001600 |
SNAP RING Not Available This part replaces MA-07400101600. Price: |
| 3 |
195231 |
Lever Asm., Lift RH Price: Call Us |
| 3 |
MA-19571732000 |
PTO SPACER SHFT RA Not Available Price: |
| 4 |
MA-19571733000 |
FORK-REAR PTO SHIF Not Available Price: |
| 5 |
MA-08000000900 |
BALL Not Available Price: |
| 6 |
MA-10371764001 |
DETENT SPRING Not Available Price: |
| 7 |
196492X421 |
Grip, Lever Price: Call Us |
| 7 |
MA-19571652000 |
SHAFT-PTO Not Available Price: |
| 8 |
807795 |
Breather Assembly Price: Call Us |
| 8 |
MA-08301100120 |
O-RING Not Available This part replaces MA-08300100120. Price: |
| 9 |
MA-08340016050 |
CAP-SEAL Not Available Price: |
| 10 |
196314 |
Spring Torsion Price: Call Us |
| 10 |
805751 |
Screw Price: Call Us |
| 10 |
MA-19571735AG0 |
COVER-PTO Not Available Price: |
| 11 |
MA-37001063000 |
BOLT-REAME Not Available Price: |
| 12 |
806190 |
Gasket-Crankcase Price: Call Us |
| 12 |
MA-F1540108025 |
BOLT,W/SPRING WASH Not Available Price: |
| 13 |
MA-A3600100802 |
WASHER SPRING Not Available Price: |
| 14 |
MA-10251109001 |
PLATE Not Available Price: |
| 15 |
805048 |
Plug-Oil Drain Price: Call Us |
| 15 |
MA-F1540108016 |
BOLT,W/SPRING WASH Not Available Price: |
| 16 |
MA-19571651000 |
FORK-MID P Not Available Price: |
| 17 |
690752 |
Bearing-Ball Price: Call Us |
| 17 |
MA-08000000900 |
BALL Not Available Price: |
| 18 |
808847 |
Cover-Crankcase Price: Call Us |
| 18 |
MA-10371764001 |
DETENT SPRING Not Available Price: |
| 19 |
MA-19571652000 |
SHAFT-PTO Not Available Price: |
| 20 |
MA-08301100120 |
O-RING Not Available This part replaces MA-08300100120. Price: |
| 22 |
692540 |
Screw Price: Call Us |
| 87 |
194209 |
Pin Cotter 7/16 Bow Tie Lock Price: Call Us |
| 88 |
410710 |
Spring Lift Assist Price: Call Us |
| 89 |
19191912 |
Washer Clear Zinc Price: Call Us |
| 89 |
690283 |
Plug-Oil Price: Call Us |
| 90 |
194208 |
Pin Cotter 5/16 Bow Tie Lock Price: Call Us |
| 91 |
195181 |
Link Lift Susp Mower Rear Price: Call Us |
| 97 |
17000612 |
Screw 3/8-16 x .75 Smgml Tap/R.Z Price: Call Us |
| 98 |
195270 |
Link Lift Susp. Front Mower Price: Call Us |
| 276 |
690704 |
Washer-Sealing Price: Call Us |
| 287 |
805247 |
Screw Price: Call Us |
| 439 |
692154 |
Seal-O Ring Price: Call Us |
| 523 |
807977 |
Dipstick Price: Call Us |
| 525 |
807584 |
Tube-Oil Fill Price: Call Us |
| 552 |
690701 |
Bushing-Crank, Governor Price: Call Us |
| 552A |
806686 |
Bushing-Crank, Governor Price: Call Us |
| 565 |
690706 |
Washer Price: Call Us |
| 572 |
805197 |
Baffle-Oil Price: Call Us |
| 614 |
691550 |
Retainer-Shaft, Governor Price: Call Us |
| 616 |
806685 |
Crank-Governor Price: Call Us |
| 718 |
690684 |
Pin-Locating Price: Call Us |
| 737 |
690679 |
Screw Price: Call Us |
| 816 |
690706 |
Washer Price: Call Us |
| 1027 |
492932 |
Filter-Oil Price: Call Us |
| 1028 |
808325 |
Adapter-Oil Filter Price: Call Us |
