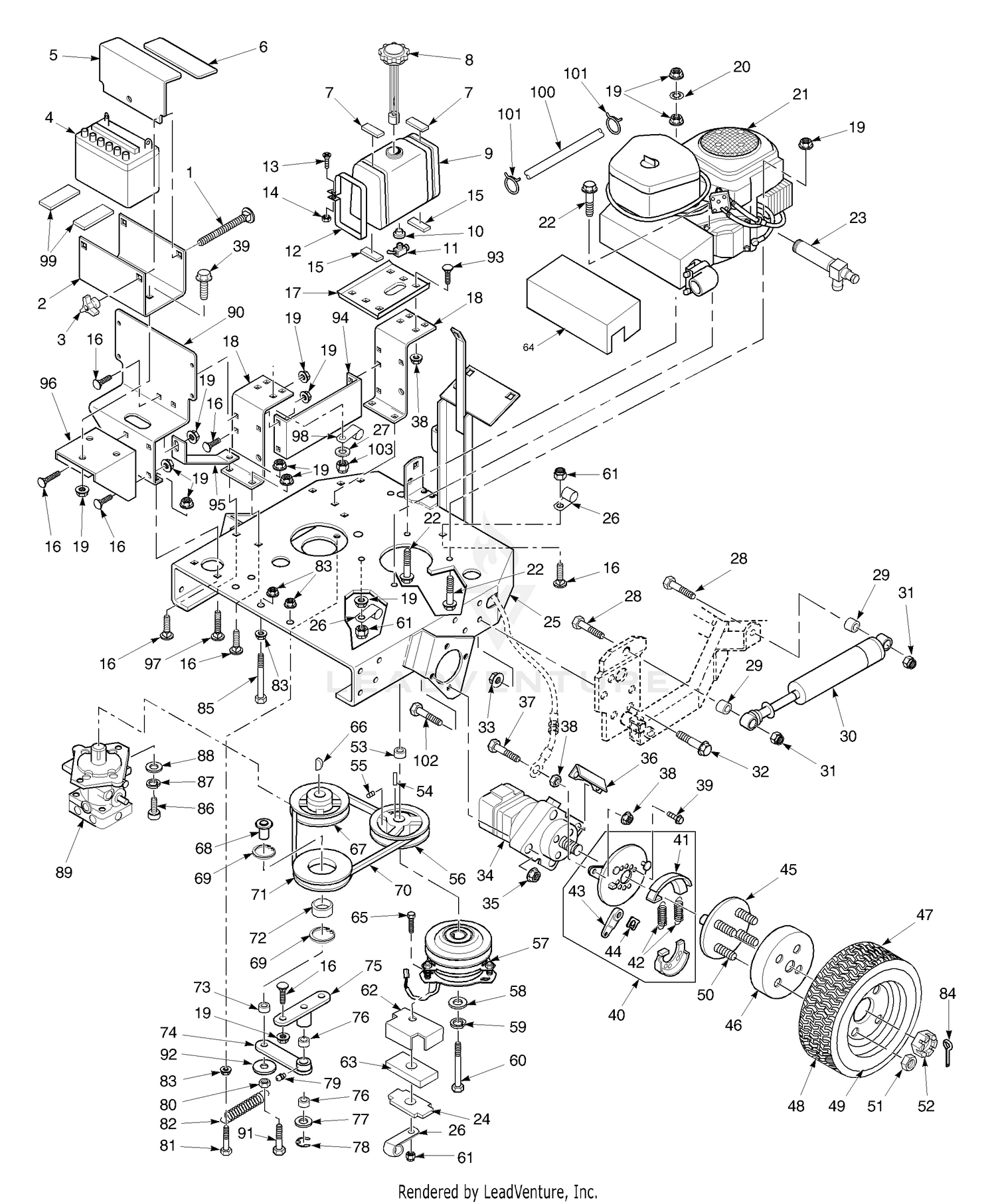

| Ref | Part Number | Description |
|---|
| 1 |
04003-39 |
Bolt, Carriage 1/4-20 x 6" This part replaces 04003-01. Price: Call Us |
| 2 |
423308 |
Battery Box Price: Call Us |
| 3 |
04029-01 |
Nut, Wing 1/4-20 Price: Call Us |
| 4 |
48015 |
Battery Price: Call Us |
| 5 |
42392 |
Battery Cover Price: Call Us |
| 6 |
48099 |
Insulation, Battery Cover Price: Call Us |
| 7 |
48292 |
Pad, Fuel Tank Strap Price: Call Us |
| 8 |
483787 |
FUEL CAP W/GAUGE This part replaces 481556. Price: Call Us |
| 10 |
482571 |
Bushing This part replaces 48309. Price: Call Us |
| 11 |
483747 |
Ball Valve w/Screen This part replaces 48308. Price: Call Us |
| 12 |
421239 |
Strap, Fuel Tank Price: Call Us |
| 13 |
04010-10 |
Phil RDHD Machine Screw 1/4-20 x 2" Price: Call Us |
| 14 |
04020-02 |
Hex Nut, 1/4-20 Price: Call Us |
| 15 |
48205 |
Pad, Fuel Tank Support Price: Call Us |
| 16 |
04003-12 |
Carriage Bolt, 5/16-18 x 3/4" Price: Call Us |
| 17 |
42377 |
Support, Fuel Tank Price: Call Us |
| 18 |
421522 |
Bracket, Fuel Tank Support Price: Call Us |
| 19 |
04019-03 |
Serr. Fl. Hex Nut 5/16-18 Price: Call Us |
| 20 |
04031-09 |
Lockwasher, 5/16 Int. Tooth Price: Call Us |
| 21 |
481776 |
Engine, 23 HP Kohler CV, (Spec PS-75523) Price: Call Us |
| 22 |
04001-12 |
Hex Head CPSCR, 5/16-18 x 1-3/4" Price: Call Us |
| 23 |
482352 |
Oil Drain Extension Price: Call Us |
| 24 |
422534 |
Plate, Backing Price: Call Us |
| 25 |
45586 |
Engine Deck Price: Call Us |
| 26 |
48030-09 |
Wire Loom, .50 I.D. Price: Call Us |
| 27 |
04040-14 |
Washer, 1/4 (.312 x .750 x .065) Price: Call Us |
| 28 |
04001-72 |
Bolt, Hex Head 1/2-13 x 2" Price: Call Us |
| 29 |
43041 |
Sleeve, Shock Absorber Mount Price: Call Us |
| 30 |
48516 |
Shock Absorber Price: Call Us |
| 31 |
04021-07 |
Hex Locknut, Elastic Stop 1/2-13 Price: Call Us |
| 32 |
04017-42 |
Serr. Fl. Hex Head CPSCR, 7/16-14 x 1" Price: Call Us |
| 33 |
04019-05 |
Serr. Fl. Hex Nut, 7/16-14 Price: Call Us |
| 35 |
04030-06 |
Lockwasher, 1/2" Price: Call Us |
| 35A |
04020-07 |
Nut, 1/2-13 Price: Call Us |
| 36 |
421289 |
Anchor, Brake Price: Call Us |
| 37 |
04001-59 |
Bolt, Hex Head 1/4-20 x 1-1/4" Price: Call Us |
| 38 |
04019-02 |
Serr. Fl. Hex Nut, 1/4-20 Price: Call Us |
| 39 |
04017-16 |
Serr. Fl. Hex Head CPSCR, 5/16-18 x .75" Price: Call Us |
| 41 |
48461-02 |
Brake Pads- Pair Price: Call Us |
| 42 |
48461-03 |
Springs - Pair Price: Call Us |
| 44 |
48461-05 |
Clip Price: Call Us |
| 46 |
48513 |
Brake Drum Price: Call Us |
| 48 |
48933-02 |
Tire 20 x 10 x 10, 4 Ply Price: Call Us |
| 49 |
48416-04 |
Rim Only Price: Call Us |
| 50 |
04008-03 |
Bolt, Hub Price: Call Us |
| 51 |
04028-01 |
Wheel Nut Price: Call Us |
| 52 |
48680 |
Castle Nut, 1.0-20 UNEF Price: Call Us |
| 53 |
43261 |
Spacer, Clutch Price: Call Us |
| 54 |
04063-08 |
Key, 1/4 x 1/4 x 2" Price: Call Us |
| 55 |
04012-04 |
Hex Socket Set Screw, 5/16-18 x 3/8" Price: Call Us |
| 57 |
461397 |
Clutch, Electric (Ogura) Price: Call Us |
| 58 |
04041-28 |
Flatwasher, 7/16 (.469 x 1.75 x .25) Price: Call Us |
| 59 |
04030-05 |
Lockwasher, 7/16” Spring Price: Call Us |
| 60 |
04102-05 |
Bolt, Hex Head 7/16-20 x 2-3/4” w/Patch, (Kawasaki FX & FT, Yamaha MX) Price: Call Us |
| 61 |
04021-10 |
Hex Locknut, Elastic Stop 5/16-18 Price: Call Us |
| 62 |
422533 |
Backing Plate, Clutch Stop Price: Call Us |
| 63 |
481716 |
Rubber Pad, Clutch Stop Price: Call Us |
| 64 |
481641 |
Heatshield, Muffler Price: Call Us |
| 65 |
04001-12 |
Bolt, Hex Head 5/16-18 x 1-3/4" Price: Call Us |
| 66 |
04063-12 |
Key, Woodruff 3/16 x 5/8" Price: Call Us |
| 67 |
48581 |
Pulley, Pump Input Price: Call Us |
| 68 |
43117 |
Sleeve, Idler Price: Call Us |
| 69 |
04050-06 |
Ring, Retaining, 1-9/16 Internal Price: Call Us |
| 70 |
48854 |
Belt, Pump Drive Price: Call Us |
| 72 |
48102 |
Bearing, Idler Pulley Price: Call Us |
| 73 |
43063 |
Spacer, Idler Price: Call Us |
| 75 |
45037 |
Idler Pivot Base Price: Call Us |
| 76 |
48100-05 |
Bushing, Oillube Price: Call Us |
| 77 |
04041-08S |
Flatwasher, 3/4" Price: Call Us |
| 78 |
04050-02 |
Ring, Retaining, 3/4" Ext. "E" Price: Call Us |
| 79 |
48114-04 |
Grease Fitting Price: Call Us |
| 80 |
04020-12 |
Nut, Jam 3/8-16 Price: Call Us |
| 81 |
04001-62 |
Bolt, Hex Head 3/8-16 x 3-1/4" Price: Call Us |
| 82 |
48929 |
Spring, Pump Drive Idler Price: Call Us |
| 83 |
04019-04 |
Serr. Fl. Hex Nut, 3/8-16 Price: Call Us |
| 84 |
04061-04 |
Cotter Pin, 5/32 x 1.50" Price: Call Us |
| 85 |
04001-47 |
Bolt, Hex Head 3/8-16 x 5" Price: Call Us |
| 86 |
04015-03 |
Socket Head CPSCR, 1/2-13 x 1-1/4" Price: Call Us |
| 87 |
04030-06 |
Lockwasher, 1/2" Price: Call Us |
| 88 |
04041-04 |
Flatwasher, 1/2 (.516 x .938 x .105) Price: Call Us |
| 89 |
481100 |
Pump, Sundstrand Price: Call Us |
| 90 |
421520 |
Bracket, Oil Tank Support Price: Call Us |
| 91 |
04001-21 |
Bolt, Hex Head 3/8-16 x 1-3/4" Price: Call Us |
| 92 |
04041-10 |
Washer 2" OD, 3/8 ID, 16 Ga. Price: Call Us |
| 93 |
04003-02 |
Carriage Bolt, 1/4-20 x 3/4" Price: Call Us |
| 94 |
421523 |
Guard, Pulley Price: Call Us |
| 95 |
421521 |
Gusset, Battery Box Price: Call Us |
| 96 |
421705 |
Support, Battery Box Price: Call Us |
| 97 |
04003-04 |
Carrage Bolt, 5/16-18 x 1" Price: Call Us |
| 98 |
48030-10 |
Wire Loom, .75" I.D. Price: Call Us |
| 99 |
48661 |
Rubber Pad Price: Call Us |
| 100 |
483617 |
Fuel Hose, 1/4" I.D. Non-Perm (791DFI Fuel Return) This part replaces 48058. Price: Call Us |
| 101 |
48059-01 |
Clamp, Fuel Hose Price: Call Us |
| 102 |
04001-52 |
Bolt, 1/2-13 x 2.50" Price: Call Us |
