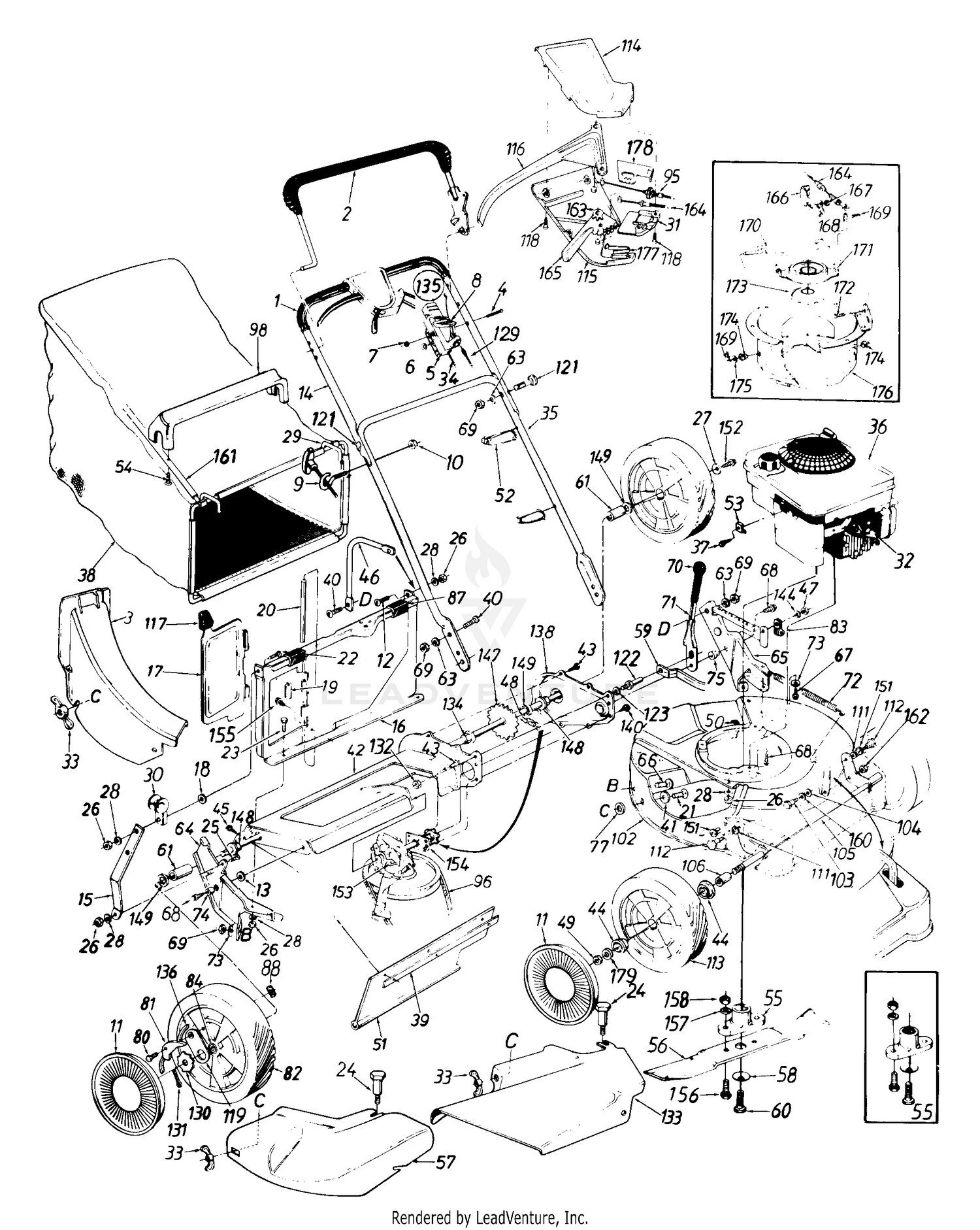

| Ref | Part Number | Description |
|---|
| 2 |
747-0824B-0637 |
Std. Control Handle This part replaces 647-0004. Price: $57.85 |
| 3 |
731-1023 |
CHUTE ASSEMBLY Not Available Price: |
| 4 |
710-0605 |
Oval C-Sunk Scr. Price: $3.85 |
| 5 |
946-0875 |
Throttle Body This part replaces 746-0875. Price: $8.64 |
| 6 |
936-0501 |
Curved Spring Wash. .66" I.D. This part replaces 736-0501. Price: $5.99 |
| 7 |
712-0291 |
Hex L-Nut 1/4-20 Thd. Price: $3.93 |
| 8 |
946-0876 |
Throttle Lever This part replaces 746-0876. Price: $7.50 |
| 9 |
710-1205 |
Rope Guide Bolt Price: $3.53 |
| 10 |
712-0324 |
Hex L-Nut 1/4-20 Thd. Price: $3.38 |
| 11 |
N/A |
Hub Cap |
| 12 |
710-0946 |
Truss Mach. Scr. 1/4-20 x .62" Lg. Price: $3.24 |
| 13 |
736-0258 |
Fl-Wash..383" I.D. x 1" O.D. Price: $3.93 |
| 14 |
749-0439E-0637 |
Upper Handle This part replaces 749-0439B. Price: $41.45 |
| 15 |
16129A-0637 |
BRACKET-PANEL SUP Not Available This part replaces 16129A. Price: |
| 16 |
16862 |
PANEL ASSEMBLY-CATCHER Not Available Price: |
| 17 |
17095A |
DOOR-TOP DISCHARGE Not Available Price: |
| 18 |
736-0211 |
Fl-Wash..285" I.D. x 1.25" O.D. Price: $5.99 |
| 19 |
732-0483A |
Torsion Spring Not Available Price: |
| 20 |
747-0514 |
ROD Not Available Price: |
| 22 |
710-0924 |
Truss Mach. Scr. 1/4-20 x.75" Lg. This part replaces 710-0255. Price: $4.02 |
| 27 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 29 |
747-0705-0637 |
Front Grass Catcher Frame This part replaces 747-0705. Price: $46.65 |
| 30 |
719-0279 |
Rope Guide Price: $14.02 |
| 31 |
753-0717 |
HOUSING CONTROL KIT Not Available This part replaces 731-0906. Price: |
| 32 |
735-0639 |
INSULATOR-SPARK PLUG Not Available Price: |
| 33 |
712-0397A |
Wing Nut This part replaces 712-0397. Price: $3.71 |
| 34 |
946-0674A |
Throttle Wire-58" Lg. Not Available This part replaces 746-0674. Price: |
| 35 |
749-0907B |
Lower Handle This part replaces 749-0725. Price: $43.95 |
| 36 |
N/A |
Engine |
| 38 |
964-0082 |
GRASS CATCHER BAG Not Available This part replaces 764-0257. Price: |
| 39 |
14835 |
STRIP-RETA Not Available Price: |
| 40 |
710-0323 |
Truss Mach. Scr. 5/16-18 x .75" Lg. Price: $4.02 |
| 41 |
736-0204 |
Fl-Wash..344" I.D. x .62" Price: $3.89 |
| 42 |
17055B |
AXLE ASSEMBLY-CHAIN Not Available Price: |
| 43 |
710-0352 |
Hex B-Tap Scr. 1/4" x .38" Lg. Price: $4.05 |
| 45 |
710-0896 |
Hex Screw, 1/4-14 x 0.625" This part replaces 710-0776A. Price: $3.86 |
| 46 |
749-0778 |
ARM-CATCHER SUPPORT Not Available Price: |
| 47 |
912-0296 |
HEX LOCK NUT 3/8-2 Not Available This part replaces 712-0296. Price: |
| 49 |
912-3020 |
Top Lock Jam Nut 3/8-16 This part replaces 712-3020. Price: $5.50 |
| 50 |
731-0564 |
PLUG Not Available Price: |
| 51 |
731-0672A |
FLAP-REAR Not Available Price: |
| 52 |
725-0157 |
Cable Tie This part replaces 726-0240. Price: $3.46 |
| 53 |
BS-690798 |
Cable Clamp (B&S) This part replaces 751-0568. Price: $4.88 |
| 54 |
710-1025 |
SCREW #12 x 14 x 1.250 Not Available Price: |
| 55 |
753-0485 |
SPLINED BLADE ADAPTER KIT Not Available Price: |
| 58 |
936-0453 |
BELL WASHER Not Available This part replaces 736-0453. Price: |
| 59 |
16863 |
ARM-HGT ADJ CONNECT Not Available Price: |
| 60 |
710-0757 |
Hex Bolt 7/16-20 x 1.5" Lg. (Grade 5) Price: $8.83 |
| 61 |
748-0190 |
Spacer .513" I.D. x .703" O.D. x .69" Lg Price: $5.48 |
| 64 |
16136A |
BRACKET ASSEMBLY (RH) Not Available Price: |
| 65 |
16137B |
BRACKET ASSEMBLY (LH) Not Available Price: |
| 67 |
710-0603 |
Hex Wash. Hd. B-Tap Scr. 5/16-18 Price: $4.19 |
| 68 |
710-0654A |
Hex Wash. Hd. TT-Tap Scr. 3/8-16 Price: $3.75 |
| 70 |
720-0223 |
Grip Price: $12.89 |
| 71 |
732-0606 |
HEIGHT ADJUSTMENT LEVER Not Available Price: |
| 72 |
732-0362 |
EXTENSION SPRING Not Available Price: |
| 73 |
736-0242 |
Bell-Wash. 5/16" I.D. Price: $3.75 |
| 74 |
950-0736 |
SPACER Not Available This part replaces 750-0736. Price: |
| 75 |
750-0624 |
SHOULDER SPACER Not Available Price: |
| 77 |
726-0233 |
Bolt Retainer 1/4 x .50" O.D. Price: $3.93 |
| 80 |
738-0137 |
BOLT, SHOULDER, 1/4-20 x 2.65 LG Not Available Price: |
| 81 |
948-0188B |
PAWL - (LH) Not Available This part replaces 748-0188B. Price: |
| 82 |
734-1826 |
Front/Rear Wheel 8" x 2" "S" Wave This part replaces 734-1510B. Price: $29.71 |
| 83 |
726-0175 |
CLAMP Not Available Price: |
| 84 |
741-0486B |
BEARING Not Available Price: |
| 87 |
731-0880 |
PANEL BAG CLIP Not Available Price: |
| 88 |
712-0414 |
Weld L-Nut 1/4-20 Thd. Price: $3.86 |
| 95 |
946-0710A |
S.P. Cable This part replaces 746-0710A. Price: $35.59 |
| 96 |
954-0343 |
V-Belt This part replaces 754-0343. Price: $27.46 |
| 98 |
731-0801 |
BAG HANDLE BLACK Not Available Price: |
| 103 |
738-0234 |
Shld. Bolt .5" Dia. x .295 Price: $9.41 |
| 104 |
736-0253 |
Bell-Wash..515" I.D. x 1.0" O.D. Price: $3.58 |
| 105 |
982-7509-0637 |
FRONT AXLE ASSEMBLY Not Available This part replaces 682-7509. Price: |
| 106 |
711-0313 |
SLEEVE Not Available Price: |
| 112 |
938-0705 |
SHOULDER SCREW Not Available This part replaces 738-0705. Price: |
| 113 |
753-08093 |
Wheels - Front This part replaces 734-1513B. Price: $39.95 |
| 114 |
753-0717 |
HOUSING CONTROL KIT Not Available This part replaces 731-0904. Price: |
| 115 |
753-0717 |
HOUSING CONTROL KIT Not Available This part replaces 731-0905. Price: |
| 116 |
731-0620A |
Drive Control This part replaces 731-0620. Price: $13.59 |
| 117 |
731-13116-1 |
HEIGHT ADJUSTMENT KNOB This part replaces 720-0190. Price: $12.01 |
| 118 |
710-0841 |
Fl-"C"-Sunk Hd. Tap Scr. #10 x .75" Lg. Price: $3.95 |
| 119 |
168555 |
Pawl Plate Price: Call Us |
| 121 |
710-0671 |
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 Not Available Price: |
| 122 |
711-0805 |
SHOULDER PIN 3/8-24X1.43 Not Available Price: |
| 129 |
946-0557 |
Control Cable This part replaces 746-0557. Price: $25.06 |
| 130 |
948-0318 |
Wheel Ratchet This part replaces 748-0318. Price: $8.90 |
| 132 |
712-0711 |
Hex Jam Nut 3/8-24 Thd. Price: $3.90 |
| 133 |
731-0884 |
DEFLECTOR-SIDE CHUTE BLACK Not Available Price: |
| 134 |
741-0522 |
Hex Flange Bearing Price: $7.70 |
| 136 |
10622B |
Spring - Nylon Not Available Price: |
| 138 |
17053A |
COVER-CHAIN Not Available Price: |
| 140 |
710-0599 |
Hex Wash. S-Tap Scr. 1/4-20 x .50" Lg. Price: $3.86 |
| 144 |
736-0300 |
Fl-Wash..385" I.D. x .87" Price: $3.93 |
| 147 |
738-0719A |
REAR SHAFT ASSEMBLY Not Available Price: |
| 148 |
741-0324A |
Flge Bearing .506 ID x .590 Lg This part replaces 741-0324. Price: $7.07 |
| 149 |
734-0160 |
Fl-Wash..531" I.D. x.930" Price: Call Us |
| 151 |
741-0491 |
Flanged Nyliner Brg. Price: $4.39 |
| 152 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 153 |
917-0417B |
TRANSMISSION Not Available This part replaces 717-0417B. Price: |
| 155 |
910-0429 |
Hex B-Tap Scr. #10 x .38" This part replaces 710-0429. Price: $3.20 |
| 156 |
710-1055 |
SCREW 3/8-24 C 1.00 GR5 Not Available Price: |
| 157 |
736-0169 |
L-Wash. 3/8" I.D. Price: $3.33 |
| 158 |
712-0241 |
Hex Nut 3/8-24 Thd. Price: $3.86 |
| 160 |
736-0108 |
Fl-Wash..51" I.D. x .75" O.D. Price: $6.07 |
| 161 |
749-0764A-0637 |
Rear Grass Catcher Frame This part replaces 749-0764A. Price: $35.94 |
| 162 |
712-0266A |
JAM LOCK NUT This part replaces 712-0266. Price: $3.43 |
| 163 |
913-0397 |
Gear Insert This part replaces 713-0397. Price: $4.51 |
| 164 |
746-0706 |
CABLE-SPEED CONTROL Not Available Price: |
| 166 |
17070-0637 |
BRACKET-ADJ CABLE Not Available This part replaces 17070. Price: |
| 167 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 168 |
712-0291 |
Hex Cent. L-Nut 1/4-20 Thd. Price: $3.93 |
| 169 |
714-0507 |
Cot-Pin 3/32" Dia. x .75" Lg. Price: $3.93 |
| 170 |
747-0684 |
SHIFT ROD (LH) Not Available Price: |
| 171 |
741-0500A |
MOVEABLE PULLEY ASSEMBLY Not Available Price: |
| 172 |
710-05177 |
CARRIAGE BOLT 1/4-20X.50" This part replaces 710-0167. Price: $4.26 |
| 173 |
756-0503 |
MOVABLE PULLEY Not Available Price: |
| 174 |
931-1137 |
FLANGED BUSHING Not Available This part replaces 731-1137. Price: |
| 175 |
736-0278 |
Fl-Wash..328" I.D. x .68" O.D. Price: $4.99 |
| 176 |
17073 |
BRACKET AS Not Available Price: |
| 177 |
732-0627A |
Shift Lever Spring This part replaces 732-0627. Price: $8.50 |
