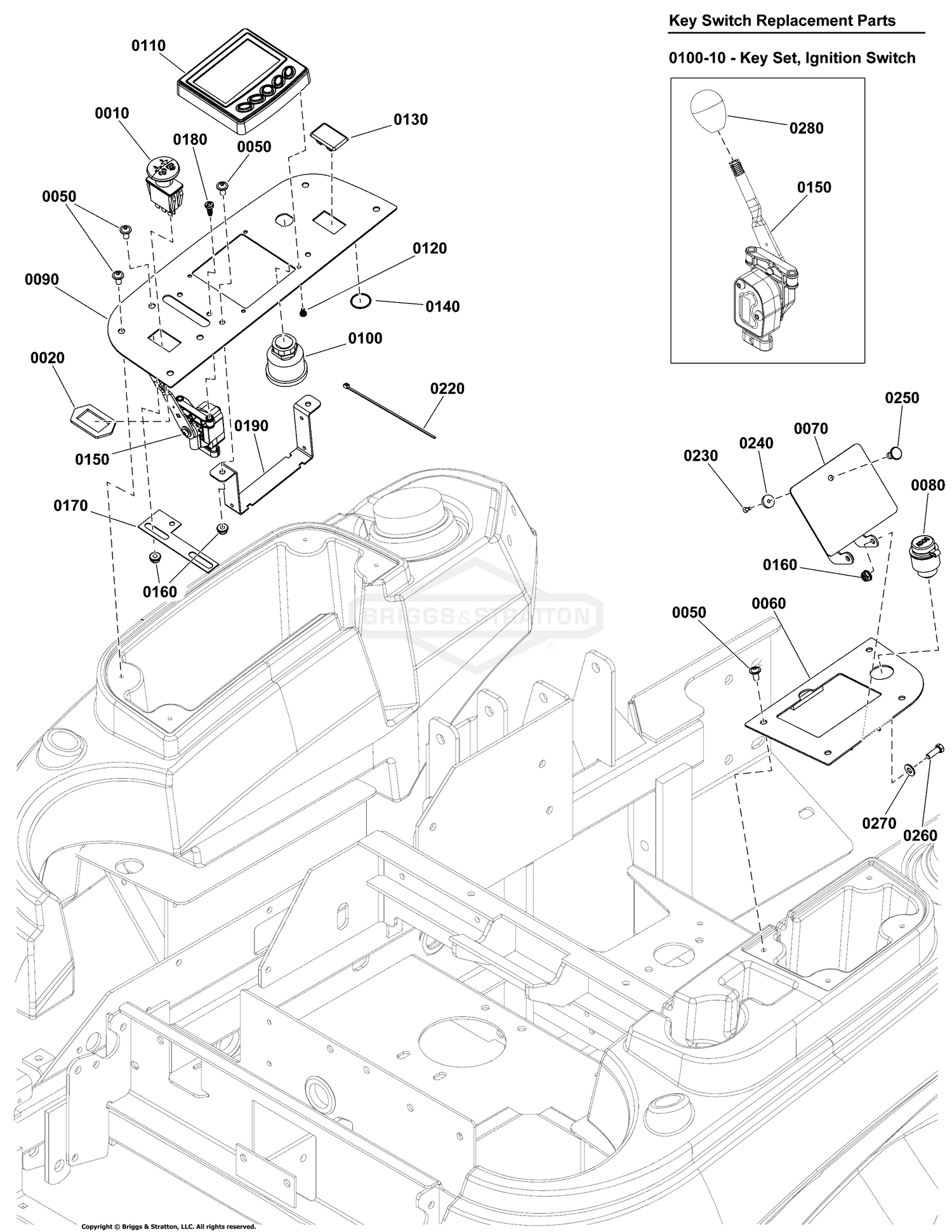

Instrument Control Panel Group S/N: 4002327863 and below

Instrument Control Panel Group S/N: 4002327863 and below

Parts (14)

RefPart NumberDescription
0010 1722887SM SWITCH-PTO PUSH Price: $30.86
0020 5022222SM RING, SWITCH RETAINER Price: $3.94
0050 84002228 SCREW, FLANGE Price: $2.22
0060 5421826AAFS MOUNT, COMPARTMENT Price: $44.76
0070 5421824AAFS LID Price: $34.49
0080 5100016FS OUTLET Price: $27.00
0100 5102962FS SWITCH, Ignition Price: $91.67
0130 1709188SM PLUG, BLACK PLASTIC Price: $4.62
0140 5022269SM O-RING, 7/8" ID X 1/1 Price: $2.97
0150 5109758FS CONTROL, ELECTRONIC THROTTLE Price: $154.33
0160 5025391FS NUT Price: $3.62
0220 5021030SM TIE WRAP, 5-1/2" LONG Price: $2.34
0260 5025010X4 BOLT, 1/4-20 x 1/2 Price: Call Us
0270 703332 WASHER This part replaces 84007033. Price: $3.72
