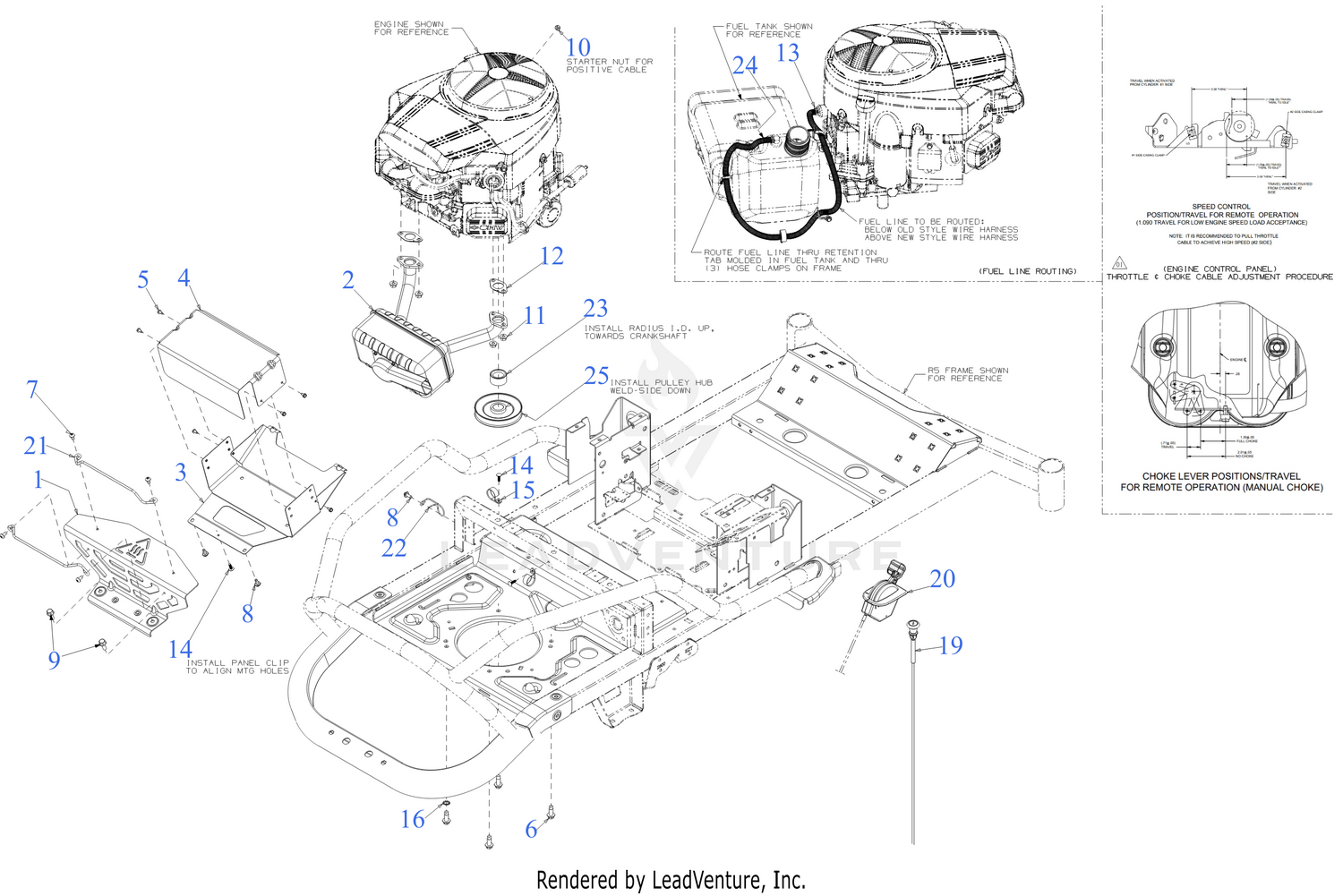

| Ref | Part Number | Description |
|---|
| 1 |
603P06299A |
MUFFLER COVER (REAR) Price: $86.26 |
| 1 |
728-05043 |
NUT RIVET 5/16-18 Price: $4.46 |
| 2 |
651P08196 |
EXHAUST MUFFLER (B&S TWIN) Price: $102.54 |
| 3 |
703-16041A |
MUFFLER SHIELD (LOWER) Price: $74.49 |
| 4 |
703-16042A |
MUFFLER SHIELD (TOP) Price: $42.34 |
| 5 |
910-0224 |
HEX SCREW AB-TAP #10 x .50 Price: $3.19 |
| 6 |
710-04683C |
SCREW 3/8-16 x 1 Price: $5.67 |
| 7 |
710-05070A |
SCREW 1/4-20 x .5 Price: $6.01 |
| 8 |
710-06133 |
SCREW M6-1 x .625 Price: $3.08 |
| 9 |
710-1238A |
SCREW 5/16-18 x .875 GR5 HXFLG HD Price: $3.74 |
| 10 |
712-05106 |
HEX NUT 1/4-20 Price: $2.72 |
| 11 |
712-3086 |
HEX FLANGE NUT M8X Price: $3.86 |
| 12 |
721P0460 |
MUFFLER GASKET Price: $6.17 |
| 13 |
726-0205 |
HOSE CLAMP 1/20 Price: $3.71 |
| 14 |
726-04099A |
RATCHET CLIP (.188 x .85) Price: $3.16 |
| 15 |
726-04119 |
DRAIN HOSE CLAMP Price: $2.83 |
| 16 |
736-0148 |
LOCK WASHER 3/8 Price: $3.19 |
| 19 |
746P05365 |
CHOKE CABLE 43.25 LG Price: $26.19 |
| 20 |
746P07005 |
THROTTLE CABLE 38.0 LG Price: $30.75 |
| 22 |
747-10050 |
HOSE GUIDE Price: $4.08 |
| 23 |
748-05079 |
ENGINE PULLEY SPACER Price: $6.47 |
| 24 |
751-22813-36 |
FUEL HOSE 1/4-36" This part replaces 751-10349-36. Price: $41.21 |
