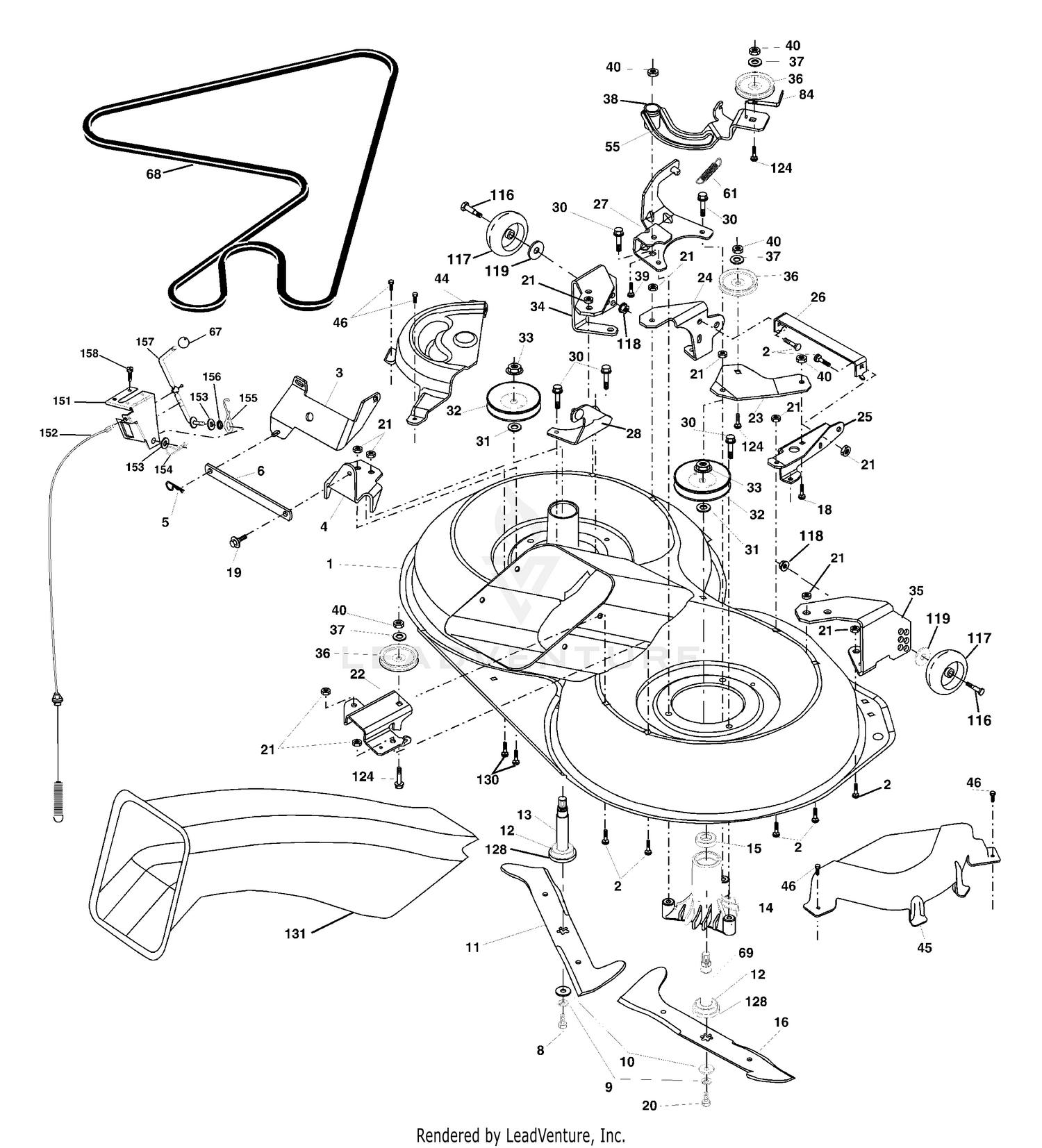

| Ref | Part Number | Description |
|---|
| 1 |
323-9 |
SCREW-HH Price: $1.29 |
| 1 |
532169160 |
Housing Asm. Mower 107 CRD Price: Call Us |
| 2 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 2 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 3 |
532165569 |
BRACKET Price: $23.99 |
| 3 |
61-0900-01 |
CARRIER BRKT This part replaces 61-0900. Price: $66.74 |
| 4 |
532169167 |
BRACKET Price: $14.76 |
| 4 |
80-4280 |
PULLEY - 5 BLD REEL Price: $78.91 |
| 5 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 5 |
61-3380 |
BELT-V Price: $29.87 |
| 6 |
323-6 |
SCREW-HH Price: $0.66 |
| 6 |
532165557 |
BAR.SWAY.92.CRD Price: $6.99 |
| 7 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 8 |
532850857 |
BLADE BOLT Price: $3.99 |
| 8 |
92-3159 |
SUPPORT WA - LH FRONT This part replaces 61-1050. Price: $191.00 |
| 9 |
125-5196 |
BUSHING This part replaces 3-0348. Price: $6.00 |
| 9 |
596238701 |
Washers This part replaces 810030600. Price: $3.99 |
| 10 |
323-12 |
SCREW-HH Price: $1.14 |
| 10 |
532140296 |
WASHER.BLADE Price: $5.99 |
| 11 |
32121-36 |
PIN-SPRING Price: $2.56 |
| 11 |
532180583 |
BLADE.3N1.LH.CRD This part replaces 532168720. Price: $27.99 |
| 12 |
532129895 |
BEARING.BALL.#6204.(MANDREL) Price: $9.99 |
| 12 |
62-5510 |
BUSHING-RUBBER Price: $7.42 |
| 13 |
52-2890 |
BUSHING-NYLON Price: $2.49 |
| 13 |
532137646 |
KIT MANDREL W/NUT This part replaces 532137645. Price: $29.99 |
| 14 |
3296-62 |
NUT-LOCK,NI Price: $5.72 |
| 14 |
532128774 |
HOUSING.MANDREL.VENTED (MACHD) Price: $29.99 |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 15 |
57-5270 |
SPRING-COMPRESSION Price: $9.79 |
| 16 |
29-8870 |
WASHER Price: $1.66 |
| 16 |
532180584 |
BLADE.3N1.RH.CRD This part replaces 532168721. Price: $27.99 |
| 17 |
52-2980 |
S.P.A. PIVOT Price: $107.93 |
| 18 |
52-3000 |
SPRING ARM Price: $35.27 |
| 18 |
596728201 |
Bolts This part replaces 872110608. Price: $3.99 |
| 19 |
52-2990 |
SPRING RET CAPSCREW Price: $8.73 |
| 19 |
532132827 |
BOLT SHD 5/16-18 Price: $4.99 |
| 20 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 20 |
532165484 |
BOLT Price: $4.99 |
| 21 |
257-5 |
WASHER-THRUST Price: $1.83 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 22 |
253-84 |
SEAL-OIL Price: $10.00 |
| 22 |
532169165 |
BRACKET.IDLER.RR.107.CRD Price: $12.99 |
| 23 |
532169166 |
BRACKET Price: $22.99 |
| 24 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 24 |
532169170 |
BRACKET Price: $12.63 |
| 25 |
532169171 |
BRACKET.SUSPENSION.RF.107.CRD Price: $24.99 |
| 25 |
61-1070 |
DISCONTINUED Price: Call Us |
| 26 |
257-6 |
BEARING-THRUST Price: $4.78 |
| 26 |
583259301 |
BRACE.SUSP.FRONT.CRD/36.2006 This part replaces 532165237. Price: $29.99 |
| 27 |
107-7409 |
PIN-PIVOT, BEDBAR This part replaces 57-5260. Price: $33.41 |
| 27 |
532169172 |
BRACKET Price: $24.99 |
| 28 |
583029401 |
BRACKET.ASM.SUSP.LR.107.CRD This part replaces 532169168. Price: $22.99 |
| 28 |
93-8849 |
REAR GRASS SHIELD ASM This part replaces 61-1130. Price: $137.18 |
| 29 |
61-0940 |
DISCONTINUED Price: Call Us |
| 30 |
3253-5 |
WASHER-LOCK Price: $0.29 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532157722. Price: $3.99 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL This part replaces 532129963. Price: $3.99 |
| 32 |
532173436 |
PULLEY MANDREL This part replaces 532153535. Price: $14.99 |
| 32 |
61-0500 |
BRG RETAINER SPACER Price: $40.44 |
| 33 |
532139729 |
KIT.NUT.FLANGE This part replaces 532137266. Price: $7.99 |
| 33 |
67-9760 |
WASHER Price: $11.32 |
| 34 |
583258801 |
BRKT.GA.WHL.LF/RR.107.2006 This part replaces 532169174. Price: $22.99 |
| 35 |
3211-4 |
SCREW-HH Price: $1.02 |
| 35 |
532169175 |
BRACKET Price: $23.69 |
| 36 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 36 |
593787801 |
PULLEYS This part replaces 532146763. Price: $27.99 |
| 37 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 37 |
61-0610-01 |
C.U. GUARD This part replaces 61-0610. Price: $48.86 |
| 38 |
3230-1 |
BOLT-CARR This part replaces 3230-20. Price: $1.49 |
| 38 |
532169851 |
SPACER Price: $8.99 |
| 39 |
76-2490 |
DISCONTINUED Price: Call Us |
| 39 |
872110622 |
BOLT Price: $3.99 |
| 40 |
251-331 |
BEARING Price: $38.82 |
| 40 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 41 |
110568 |
FLANGE This part replaces 76-2500. Price: $17.99 |
| 42 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 43 |
3217-6 |
NUT-HEX Price: $1.19 |
| 44 |
532169180 |
Cover Mandrel Lh 107 CRD Price: Call Us |
| 44 |
61-0970 |
BEDBAR PIVOT HSG WA Price: $59.59 |
| 45 |
532175539 |
COVER.MANDREL.RH.CRD This part replaces 532169179. Price: $17.99 |
| 45 |
56-9510 |
BUSHING ASM Price: $12.89 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 46 |
56-9520 |
BUSHING-FLANGED Price: $2.15 |
| 47 |
119-4151 |
SCREW-BEDKNIFE This part replaces 57-4910. Price: $0.41 |
| 48 |
105-6785 |
BEDKNIFE-LOWCUT (FAIRWAY) This part replaces 62-5180. Price: $91.81 |
| 49 |
61-1210-01 |
BEDBAR This part replaces 61-1210. Price: $367.89 |
| 50 |
61-1010 |
BEDBAR PIVOT HSG WA Price: $41.79 |
| 51 |
57-5190 |
SCREW-SET, HSH Price: $5.50 |
| 52 |
3218-18 |
NUT-JAM Price: $0.57 |
| 53 |
61-1950 |
WASHER-PLASTIC Price: $0.55 |
| 54 |
3256-56 |
WASHER-FLAT Price: $1.15 |
| 55 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 55 |
531149401 |
SERVICE KIT ARM.IDLER ARM.IDLE This part replaces 532169849. Price: $17.99 |
| 56 |
322-3 |
SCREW-HH Price: $0.79 |
| 57 |
12-7079 |
DISCONTINUED Price: Call Us |
| 58 |
61-0660-01 |
REEL FRAME WA This part replaces 61-0660. Price: $388.13 |
| 59 |
323-7 |
SCREW-HH Price: $0.65 |
| 60 |
67-5840 |
NUT-JAM Price: $5.02 |
| 61 |
27-1850 |
WASHER-PIVOT Price: $2.58 |
| 61 |
532165945 |
SPRING.TENSION.BELT Price: $11.99 |
| 62 |
61-1320 |
DISCONTINUED Price: Call Us |
| 63 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 64 |
302-18 |
FITTING-GREASE Price: $3.46 |
| 65 |
62-7120 |
WASHER Price: $1.48 |
| 66 |
62-5070 |
DECAL-WARNING Price: $5.59 |
| 67 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 67 |
532106932 |
KNOB T (3/8 HOLE) Price: $6.99 |
| 68 |
547597001 |
DRIVE BELT HEX-BELT 107 MOWER This part replaces 532169178. Price: $59.99 |
| 68 |
76-2290 |
SPACER Price: $4.14 |
| 69 |
3256-45 |
WASHER-FLAT Price: $0.28 |
| 69 |
532165482 |
SHAFT.ASM.W/LWR.BRG.RH.THREAD Price: $59.99 |
| 70 |
3229-11 |
SCREW-CARR Price: $0.99 |
| 71 |
3255-2 |
WASHER-LOCK, EXT Price: $0.95 |
| 72 |
32128-21 |
NUT-HF Price: $0.39 |
| 73 |
76-2430 |
BRACKET - DEBRIS Price: $10.18 |
| 74 |
76-2440 |
DISCONTINUED Price: Call Us |
| 75 |
32128-10 |
NUT-LOCK, HHF Price: $0.27 |
| 76 |
3247-6 |
SCREW-SET Price: $1.02 |
| 84 |
597024901 |
Keepers This part replaces 532156085. Price: $3.99 |
| 116 |
596434404 |
Bolts This part replaces 532137644. Price: $4.99 |
| 117 |
532133957 |
WHEEL GAGE DONUT Price: $11.99 |
| 118 |
596322601 |
Nuts This part replaces 873930600. Price: $2.99 |
| 119 |
596134901 |
GSPH This part replaces 819121414. Price: $2.99 |
| 124 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 128 |
532153390 |
WASHER FELT Price: $3.99 |
| 130 |
872110506 |
BOLT.CARR.SQNK.5/16-18UNC.X3/4 Price: $3.99 |
| 131 |
532165661 |
CHUTE BAGGER Price: $79.99 |
| 151 |
532169670 |
BRACKET.CLUTCH.CABLE Price: $17.99 |
| 152 |
532170300 |
Cable Clutch CRD Service Price: Call Us |
| 153 |
596140201 |
Washers This part replaces 532169674. Price: $2.99 |
| 154 |
532169675 |
SPRING RETAINER Price: $4.99 |
| 155 |
532169671 |
SPRING RETENTION LEVER Price: $4.99 |
| 156 |
532169672 |
SPACER.CLUTCH.CABLE Price: $4.99 |
| 157 |
532169669 |
ROD CLUTCH CABLE 3/8" Price: $27.99 |
| 158 |
596582501 |
Bolts This part replaces 817720410. Price: $2.99 |
| 532130794 |
KIT.MANDREL.ASM.3.BOLT |
Price: $49.99 532130794 |
| 532165579 |
MANDREL |
ASM.CRD RH 6PT STAR Price: $79.99 532165579 |
