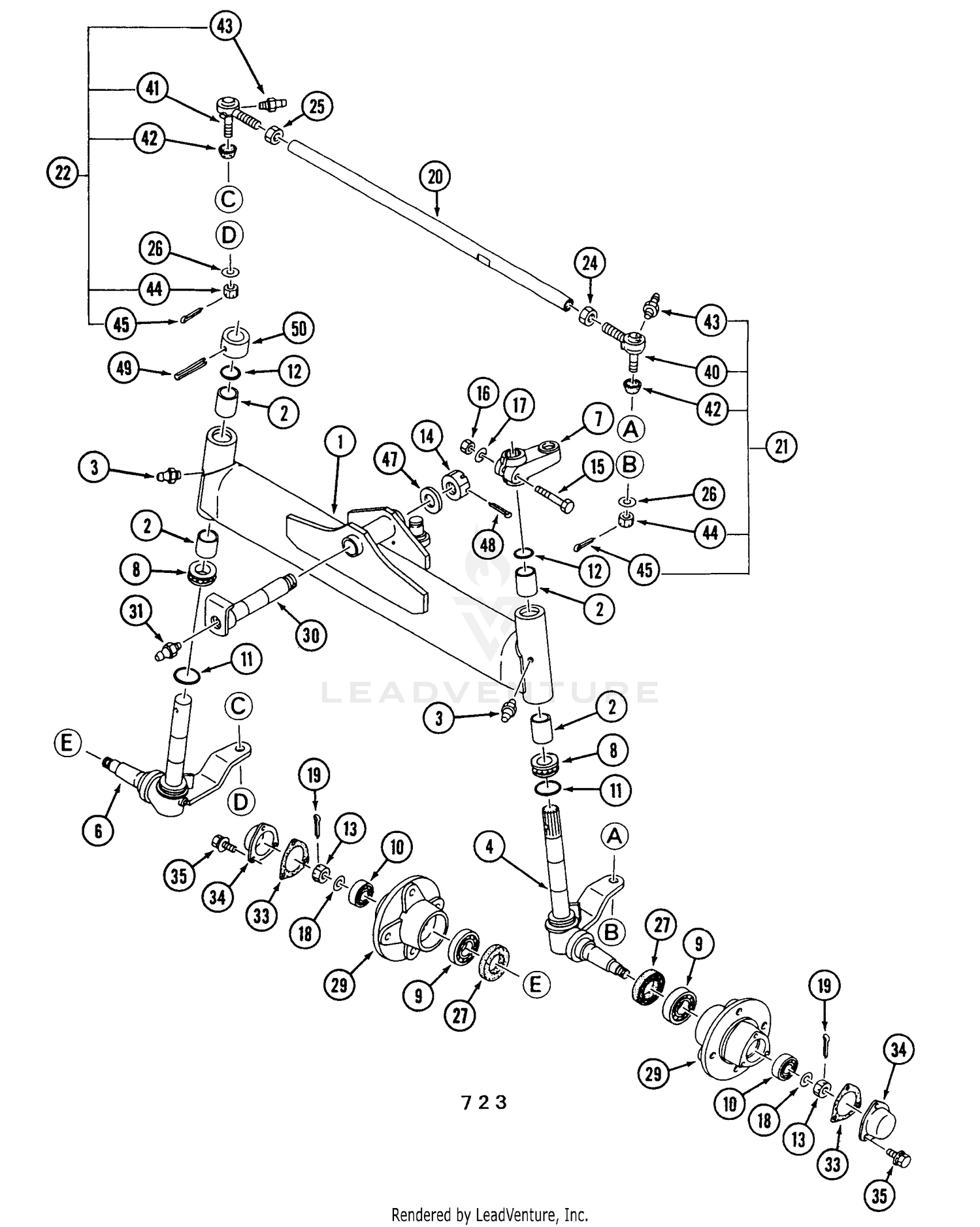

Front Axle 723 Series - 2WD (Solid Front Axle)
Parts (115)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 98-7591 | IDLE APPARTUS ASM Price: $45.98 |
| 1 | MA-19642053AG0 | CENTER AXL Not Available Price: |
| 2 | 108563X | NLA Price: Call Us |
| 2 | MA-67341-01300 | BUSHING Not Available Price: |
| 3 | 108442X358 | SUB= 132637X505 Price: Call Us |
| 3 | MA-A6503100300 | NIPPLE-GREASE Not Available Price: |
| 4 | 105414X | NLA Price: Call Us |
| 4 | MA-19642055AG0 | KNUCKLE (LH) Not Available Price: |
| 5 | 106099X | DASHBOARD LT Price: Call Us |
| 6 | 104783X | DASH ASSY LT Price: Call Us |
| 6 | MA-19642057AG0 | KNUCKLE R.H. Not Available Price: |
| 7 | 108456X | SUB= 138955 Price: Call Us |
| 7 | 98-7597 | ENGINE STOP LEVER ASM Price: $65.81 |
| 7 | MA-19642059AG0 | ARM, KNUCKLE Not Available Price: |
| 8 | MA-07600051106 | T.BRG NSK51106 Not Available Price: |
| 9 | 106965X | SUB= 140181 Price: Call Us |
| 9 | MA-07500062060 | BEARING NSK6206 Not Available Price: |
| 10 | 104786X | SUPPORT ASSY LT Price: Call Us |
| 10 | MA-07500063040 | BEARING NSK 6304 Not Available Price: |
| 11 | 105037X | FOAM-STRIP LT Price: Call Us |
| 11 | MA-08301100420 | O-RING Not Available Price: |
| 12 | 104643X | NLA Price: Call Us |
| 12 | MA-08301100290 | O-RING Not Available Price: |
| 13 | 106784X | SUB= 155013 Price: Call Us |
| 13 | MA-A3130101601 | NUT Not Available Price: |
| 14 | 104618X | SUB= 155013 Price: Call Us |
| 14 | 98-7604 | GASKET-COVER, PUMP Price: $5.06 |
| 14 | MA-A3130102401 | NUT Not Available Price: |
| 15 | 108370X358 | SUB= 150301X505 Price: Call Us |
| 15 | MA-A0550110060 | BOLT Not Available Price: |
| 16 | 104613X | SUB= 147717 Price: Call Us |
| 16 | MA-A3030110002 | NUT Not Available Price: |
| 17 | 106395X | LENS LT Price: Call Us |
| 17 | MA-A3600101002 | WASHER,SPRING Not Available Price: |
| 18 | 104632X | SUPPORT-GRILL LT Price: Call Us |
| 18 | MA-03500151632 | WASHER Not Available This part replaces MA-03500051632. Price: |
| 19 | 104801X | NLA Price: Call Us |
| 19 | MA-05200140032 | COTTER PIN Not Available Price: |
| 20 | 104634X358 | SUB= 105419X388 Price: Call Us |
| 20 | MA-19642062AG0 | TUBE,TIE ROD Not Available Price: |
| 21 | 104633X | NLA Price: Call Us |
| 22 | 104644X | NLA Price: Call Us |
| 24 | 108443X358 | SUB= 132636X505 Price: Call Us |
| 24 | MA-67354-00201 | NUT (RH) THREAD M Not Available Price: |
| 25 | 106976X | PANEL DASH RH YT Price: Call Us |
| 25 | MA-67354-00301 | NUT (LH) THREAD M Not Available Price: |
| 26 | 105464X358 | SUB= 145243X505 Price: Call Us |
| 26 | MA-13353166000 | WASHER Not Available Price: |
| 27 | 108436X | SUB= 109512X Price: Call Us |
| 27 | MA-08401406211 | SEAL, OIL Not Available Price: |
| 28 | 102481X | SUB= 145009 Price: Call Us |
| 29 | 104808X | NLA Price: Call Us |
| 29 | MA-10312019AG0 | HUB-FRONT WHEEL Not Available Price: |
| 30 | MA-19642065AG0 | PIN-CENTER Not Available Price: |
| 31 | 106966X | PANEL DASH HYT Price: Call Us |
| 31 | MA-A6503100300 | NIPPLE-GREASE Not Available Price: |
| 32 | 105465X358 | SUB= 145244X428 Price: Call Us |
| 33 | 7192 | J WIRE TIE Price: Call Us 7192 J |
| 33 | MA-69541-06400 | GASKET Not Available Price: |
| 34 | 73680500 | SUB= 73690500 Price: Call Us |
| 34 | MA-19832048AG0 | CAP Not Available Price: |
| 35 | MA-F1440106012 | BOLT,W/SPRING WASH Not Available Price: |
| 36 | 108263X | SUB= 108263X012 Price: Call Us |
| 37 | 19091216 | WASHER PM Price: Call Us |
| 38 | 106301X | SUB= 121440X Price: Call Us |
| 39 | 1554J | SUB= 155108 Price: Call Us |
| 40 | None | Order Ref. 21 |
| 40 | 106202X | REFLECTOR-TAIL YT Price: Call Us |
| 41 | None | Order Ref. 22 |
| 42 | 104810X | NLA Price: Call Us |
| 43 | 106855X | SUB= 140121 Price: Call Us |
| 44 | 105512X | SPRING LT Price: Call Us |
| 45 | 108057X358 | SUB= 109640X388 Price: Call Us |
| 46 | 4900J | DECAL T Price: Call Us |
| 47 | 8022J | PLUG-DASH T Price: Call Us |
| 47 | MA-03500172450 | WASHER Not Available Price: |
| 48 | 10090400 | SUB= 10040400 Price: Call Us |
| 48 | MA-05200150040 | COTTER PIN Not Available Price: |
| 49 | 73220400 | SUB= 50675 Price: Call Us |
| 49 | MA-05500008050 | Pin, Spring Price: $2.54 |
| 50 | 74760612 | SUB= 74780612 Price: Call Us |
| 51 | 19131312 | WASHER Price: Call Us |
| 52 | 73680600 | SUB= 73690600 Price: Call Us |
| 53 | 74760616 | BOLT Price: Call Us |
| 54 | 19131316 | WASHER Price: Call Us |
| 55 | 17211010 | SCREW LT Price: Call Us |
| 57 | 17490612 | SCREW Price: Call Us |
| 59 | 17490512 | SCREW Price: Call Us |
| 60 | 7605J | BOLT T Price: Call Us |
| 62 | 73680400 | SUB= 73690400 Price: Call Us |
| 63 | 74760620 | Bolt Fin Flex 3/8-16unc X 1-1/4 Price: Call Us |
| 64 | 73510600 | NUT Price: Call Us |
| 65 | 17490608 | SCREW LT Price: Call Us |
| 66 | 105516X | SUB= 155925 Price: Call Us |
| 67 | 17490612 | SCREW Price: Call Us |
| 69 | 74780816 | BOLT Price: Call Us |
| 70 | 10110800 | SUB= 10040800 Price: Call Us |
| 71 | 19171912 | WASHER Price: Call Us |
| 72 | 17431008 | SUB= 98000165 Price: Call Us |
| 73 | 74780512 | BOLT Price: Call Us |
| 74 | 73510500 | NUT Price: Call Us |
| 75 | 105509X | SUB= 137113 Price: Call Us |
| 76 | 74350512 | BOLT LT Price: Call Us |
| 77 | 5479J | PLUG BUTTON T Price: Call Us |
| 78 | 17490412 | SCREW HEX CRT Price: Call Us |
| 79 | 106974X | SUB= 133796 Price: Call Us |
| 80 | 106300X | SUB= 121441X Price: Call Us |
| 81 | 105505X | SUB= 121794X Price: Call Us |
| 85 | 108256X | PAD FOOTREST T Price: Call Us |
| 89 | 100225L | SUB= 109808X Price: Call Us |
| 93 | 105511X | SUB= 140675 Price: Call Us |
| 94 | 105513X | SUB= 140551 Price: Call Us |
| 95 | 105529X | SUB= 139888 Price: Call Us |
| 96 | 105531X | NUT-PUSH YT Price: Call Us |
| 98 | 105813X | SUB= 146046 Price: Call Us |
