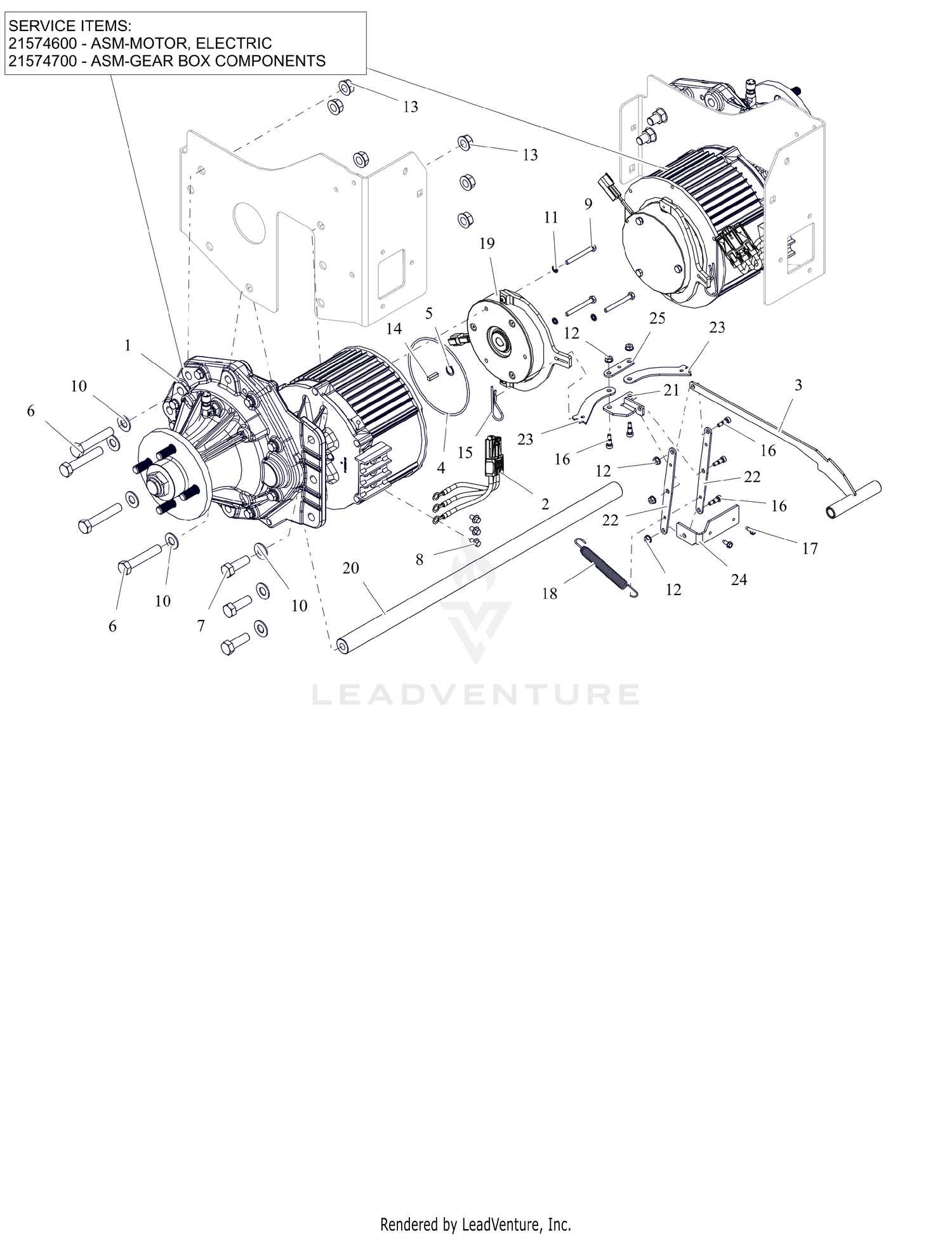

| Ref | Part Number | Description |
|---|
| 1 |
30281100 |
MOTOR- TRACTION This part replaces 09198500. Price: Call Us |
| 2 |
09199300 |
HARNESS, PHASE - DRIVE MOTOR Price: $99.95 |
| 3 |
09388400 |
WLDMT, BRAKE RELEASE Price: $39.95 |
| 4 |
05600521 |
O-RING 126MM IDX3MM Price: $3.95 |
| 5 |
05700226 |
RING, RETAINING-EXTERNAL 25MM X 1.2MM Price: $1.65 |
| 6 |
05901836 |
BLT, HEX .50-13X2.75 G8 ZCC Price: $3.45 |
| 7 |
05902034 |
BLT, HEX 0.5-13X1.5 GR8 ZCC Price: $1.95 |
| 8 |
05902105 |
BLT,HEX M6-1X10 G8.8 ZCC Price: $2.95 |
| 9 |
05902123 |
BLT,HEX M6-1X55 EP30 G8.8 ZCC Price: $1.75 |
| 10 |
06401116 |
WSHR, FLT .557X1.040X.102 ZCC Price: $1.45 |
| 11 |
06401223 |
WSHR-FL-STL, SEAL 6MMX11MMX1MM Price: $4.75 |
| 12 |
06500932 |
NUT, FLG-TOP LK #10-24 GF ZCC Price: $3.45 |
| 13 |
06501005 |
NUT, FLG-CTR LK .500-13 GG ZCC Price: $2.95 |
| 14 |
06600228 |
KEY-STR 5X5X18MM RD ENDS Price: $4.95 |
| 15 |
06700215 |
PIN, HAIR-#7 .094X2.31 ZC120 Price: $5.95 |
| 16 |
07070101 |
BLT-SHLDR .25X.375 Price: $5.45 |
| 17 |
07400130 |
SCR,TAP #10-24X.50 HWH TR ZCC Price: $1.95 |
| 18 |
08300538 |
SPRING, SWIVEL HOOK EXTENSION Price: $13.45 |
| 19 |
09189300 |
BRAKE, MOTOR Price: $299.95 |
| 20 |
09194251 |
SHAFT, TRANSAXLE SUPPORT (BLACK) Price: $79.95 |
| 21 |
09388100 |
LINK, T Price: $4.95 |
| 22 |
09388200 |
LINK, MIDDLE Price: $4.95 |
| 23 |
09388300 |
LINK, PUSH Price: $4.95 |
| 24 |
09388500 |
PIVOT, BRAKE LINK MAIN Price: $7.95 |
