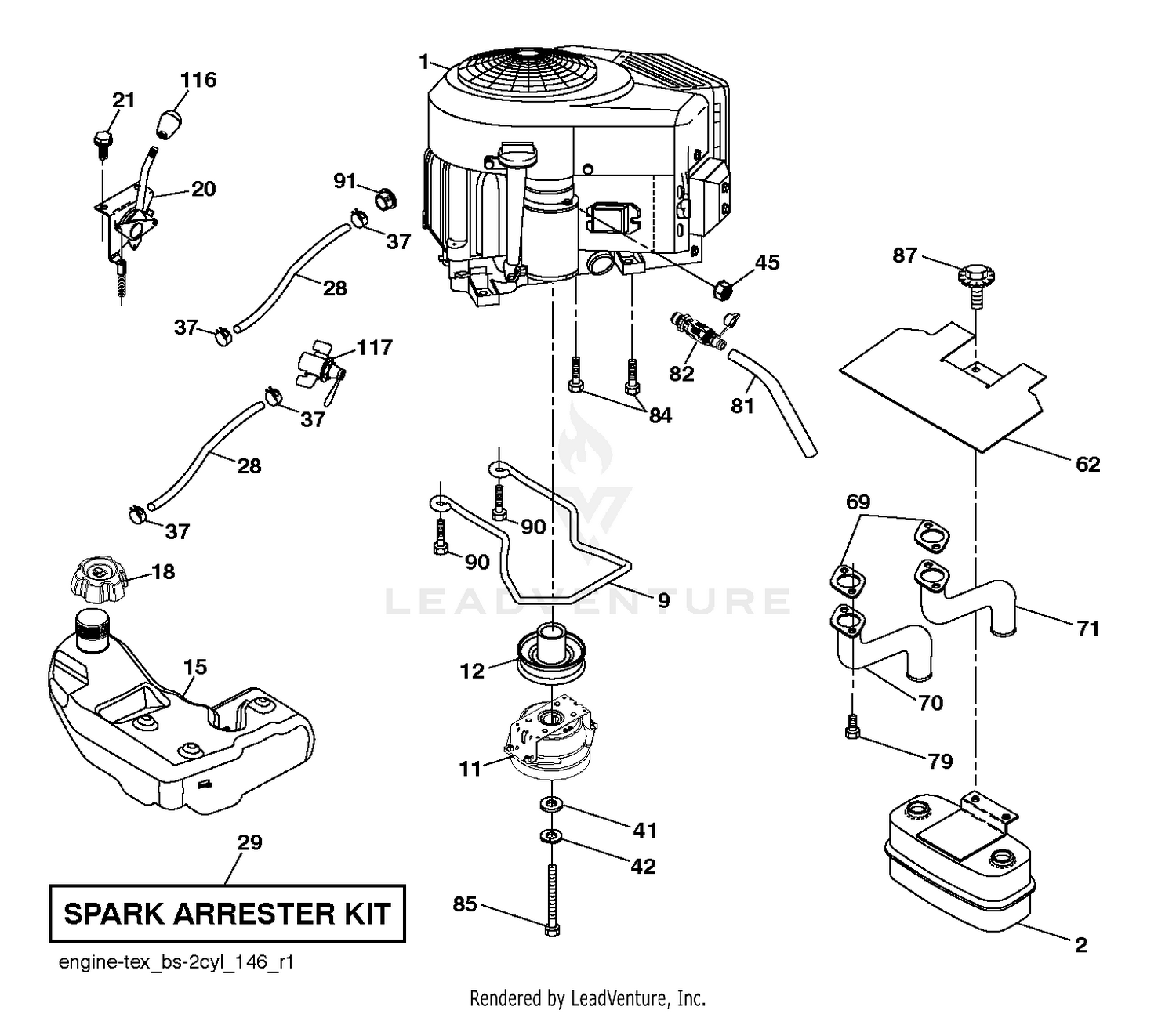

| Ref | Part Number | Description |
|---|
| 2 |
32152-10 |
LOCKNUT Price: $0.81 |
| 2 |
589818702 |
MUFFLER.ASM.TWIN.MNTG.BRACKET This part replaces 589818701. Price: $44.99 |
| 3 |
52-1990 |
PISTON-CYLINDER, HYD Price: $124.18 |
| 6 |
52-1980 |
DISCONTINUED Price: Call Us |
| 9 |
596501502 |
Keepers This part replaces 501832602. Price: $9.99 |
| 9 |
65-4860 |
DISCONTINUED Price: Call Us |
| 10 |
32120-8 |
RING-SNAP Price: $1.76 |
| 11 |
587241401 |
CLUTCH.OGURA.5.0PD.GT1.5A-EH01 Price: $229.99 |
| 12 |
532194343 |
PULLEY ENGINE Price: $39.99 |
| 20 |
587242701 |
THROTTLE.PRO.RSTART. 38 Price: $27.99 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 539990247. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 69 |
532165391 |
GASKET.MUFFLER Price: $9.99 |
| 79 |
596134202 |
Screws This part replaces 532183906. Price: $2.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN Price: $14.99 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 85 |
501606901 |
BOLT.HEX.7/16-20X3.GR5.YELLOW Price: $3.99 |
| 87 |
532198239 |
BOLT.5/16-18UNCX1.W/SEMS.BLK Price: $3.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 91 |
532187495 |
BUSHING.1.375OD Price: $4.99 |
| 116 |
539132624 |
KNOB - SHIFT Price: $6.99 |
| 117 |
532420828 |
VALVE FUEL RESERVE Price: $27.99 |
