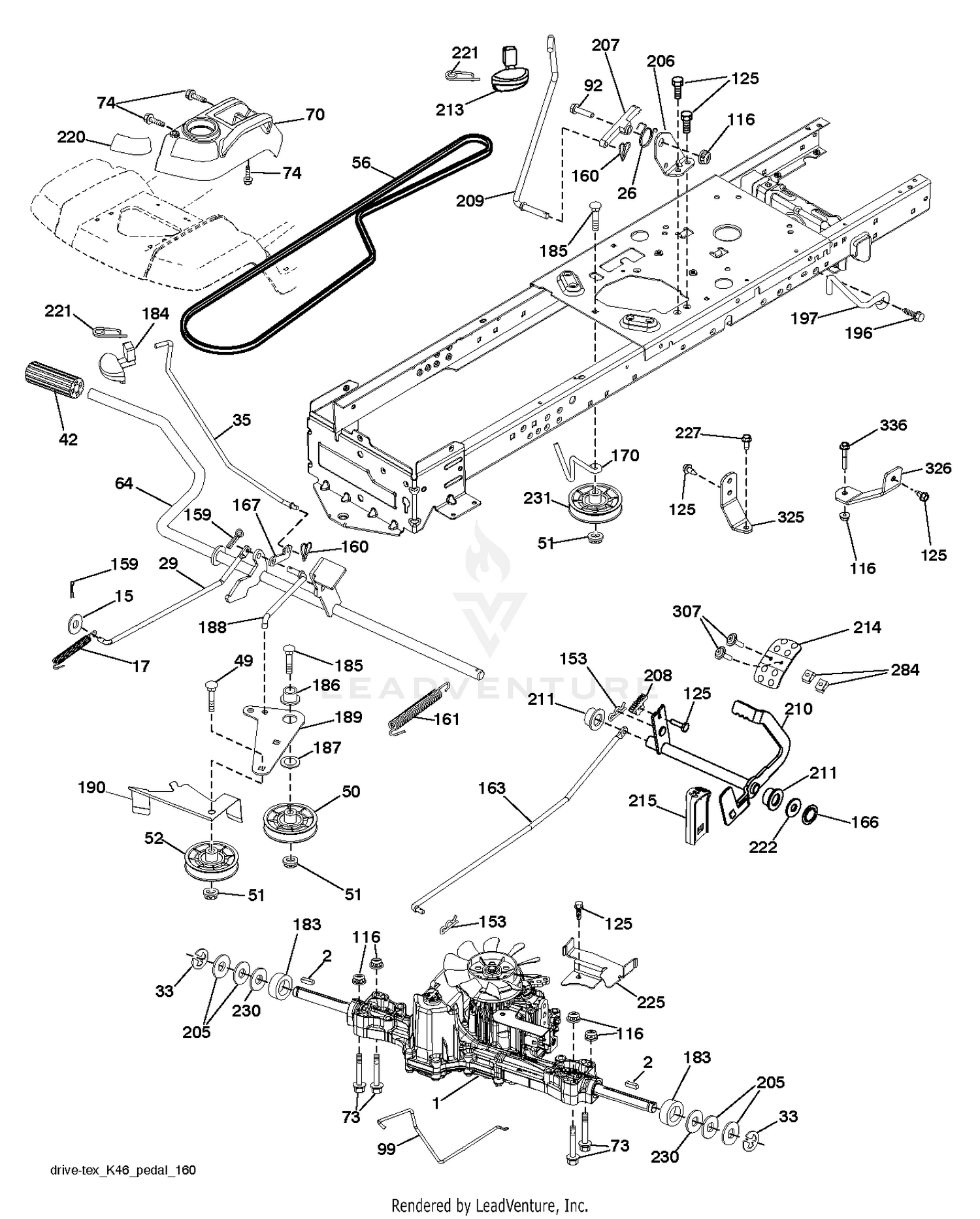

| Ref | Part Number | Description |
|---|
| 1 |
92-5536-03 |
TUBE-CONTROL, PUMP ASM This part replaces 92-5536. Price: $203.02 |
| 2 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 2 |
532123583 |
SQUARE KEY Price: $3.99 |
| 3 |
23-2270 |
BUSHING-RUBBER Price: $17.07 |
| 4 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 5 |
27-3680 |
SPACER-MOUNTING Price: $6.65 |
| 6 |
99-5677 |
TRANSMISSION ASM This part replaces 92-5513. Price: $4,071.30 |
| 7 |
237-42 |
O-RING Price: $2.78 |
| 8 |
353-979 |
FITTING-STR Price: $12.62 |
| 9 |
66-3110 |
FITTING-HYD, 90 DEG Price: $61.37 |
| 10 |
27-4370 |
HUB-PUMP Price: $70.04 |
| 11 |
3257-5 |
KEY-WOODRUFF Price: $5.13 |
| 12 |
3210-5 |
SCREW-HH Price: $0.54 |
| 13 |
3241-6 |
SCREW-SQH Price: $4.80 |
| 14 |
32152-5 |
NUT-HEX Price: $0.54 |
| 15 |
125-9249 |
SPACER-COUPLER, RUBBER This part replaces 27-6600. Price: $2.15 |
| 15 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 16 |
115-4523 |
COUPLING-RUBBER This part replaces 44-2230. Price: $52.81 |
| 17 |
532413678 |
SPRING.BRAKE.K46.GREEN Price: $6.99 |
| 17 |
63-6610-03 |
DRIVE SHAFT ASM This part replaces 63-6610. Price: $79.41 |
| 18 |
62-7400 |
DECAL Price: $24.54 |
| 19 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 20 |
33114-025 |
SCREW-HH This part replaces 48-9460. Price: $0.70 |
| 21 |
3256-71 |
WASHER-FLAT Price: $0.81 |
| 22 |
27-6590 |
SPACER-COUPLING, RUBBER Price: $13.38 |
| 23 |
66-8490 |
HOSE-HYD Price: $140.41 |
| 24 |
3210-8 |
SCREW-HH Price: $1.02 |
| 25 |
237-22 |
O-RING Price: $2.43 |
| 26 |
532199679 |
SPRING.RETURN.CRUISE Price: $3.99 |
| 26 |
82-8530 |
FITTING-STR,ORIF Price: $36.90 |
| 27 |
23-2300 |
FILTER-OIL, TRANSMISSION Price: $11.03 |
| 28 |
323-39 |
SCREW-HH Price: $1.60 |
| 29 |
27-9620 |
SCREW-HH Price: $16.90 |
| 29 |
532403806 |
ROD.BRAKE.K46 Price: $17.99 |
| 30 |
5-0652 |
SPACER Price: $5.35 |
| 31 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 32 |
92-5085 |
UNION-FILTER Price: $86.00 |
| 33 |
812000001 |
E-RING LT Price: $3.99 |
| 33 |
92-5087 |
SEAL-ADAPTOR, FILTER Price: $25.51 |
| 34 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 35 |
583864502 |
Rods This part replaces 583864501. Price: $6.99 |
| 35 |
92-5082 |
HOSE-HYD Price: $25.51 |
| 36 |
86-7220 |
GEAR-PINION Price: $81.33 |
| 37 |
32120-72 |
RING-SNAP This part replaces 936125. Price: $2.09 |
| 38 |
27-3690 |
GASKET-TRANSMISSION Price: $8.27 |
| 39 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 40 |
2412-4 |
CLAMP-R Price: $4.22 |
| 41 |
63-7170 |
ANCHOR-TRANSMISSION Price: $37.61 |
| 42 |
3218-3 |
NUT-JAM Price: $0.25 |
| 42 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 43 |
67-1900 |
SCREW-HH Price: $3.46 |
| 44 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 45 |
92-5076 |
ADAPTER-FILTER Price: $266.19 |
| 46 |
237-79 |
O-RING Price: $5.46 |
| 47 |
92-5086 |
FITTING-ELBOW, 90 DEG Price: $53.77 |
| 48 |
2412-34 |
CLAMP-HOSE Price: $2.14 |
| 49 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 49 |
92-5083 |
HOSE-HYD Price: $25.27 |
| 50 |
3220-7 |
NUT-JAM Price: $4.09 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $17.99 |
| 51 |
237-78 |
O-RING Price: $3.85 |
| 51 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $19.99 |
| 52 |
92-5512 |
FITTING-STR Price: $21.46 |
| 55 |
353-988 |
PLUG-HEX Price: $10.61 |
| 56 |
592855201 |
Belts This part replaces 532130969. Price: $27.99 |
| 64 |
532197865 |
SHAFT.ASM.PEDAL.BRK.CNTR Price: $44.99 |
| 70 |
532439661 |
CONSOLE.ASM.RH.GT.FC.HUSQ Price: $79.99 |
| 73 |
595316601 |
Bolts This part replaces 874490544. Price: $3.99 |
| 74 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 92 |
595305701 |
Screws This part replaces 874760520. Price: $3.99 |
| 99 |
532415742 |
ROD.SPRING.BYPASS.K46.LT.Z Price: $7.99 |
| 116 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 153 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 159 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 160 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 163 |
593861001 |
Rods This part replaces 532448275. Price: $22.99 |
| 166 |
532429164 |
NUT.PUSH.625 Price: $4.99 |
| 167 |
531152901 |
SERVICE KIT LATCH LATCH.BRAKE. This part replaces 532405257. Price: $2.99 |
| 170 |
532413430 |
KEEPER.CENTER SPAN.1.688 Price: $5.99 |
| 183 |
532137057 |
SPACER AXLE Price: $5.99 |
| 184 |
532196439 |
HANDLE.PARKING.BRAKE.H (BLK) This part replaces 587653701. Price: $9.99 |
| 185 |
872110622 |
BOLT Price: $3.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $7.99 |
| 187 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG Price: $4.99 |
| 189 |
531169001 |
SERVICE KIT BELLCRANK This part replaces 532194317. Price: $6.99 |
| 190 |
532194318 |
KEEPER.BELLCRANK.DRIVE Price: $5.99 |
| 196 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 197 |
585658602 |
Stop This part replaces 585658601. Price: $4.99 |
| 205 |
532121748 |
WASHER Price: $3.99 |
| 206 |
532448596 |
BRACKET.MOUNT.CRUISE.LATCH Price: $4.99 |
| 207 |
587031402 |
Latch This part replaces 532197868. Price: $5.99 |
| 208 |
596564101 |
Gears This part replaces 532197869. Price: $4.99 |
| 209 |
596869801 |
Rods This part replaces 532199592. Price: $5.99 |
| 210 |
532197860 |
ROCKER.ASM.PEDAL.CONTR Price: $44.99 |
| 211 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 213 |
532403119 |
KNOB.CONTROL.CRUSIE.HU Price: $8.99 |
| 214 |
532416863 |
PEDAL.FORWARD.HUSQVARNA.DEALER Price: $32.99 |
| 215 |
532401723 |
PEDAL.REVERSE.TEX.GT.4 Price: $12.99 |
| 220 |
532198908 |
REFLECTOR.RH.TEX GT Price: $14.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $3.99 |
| 222 |
879212010 |
WASHER 21/32 X 1-1/4 X 10 GA. Price: $3.99 |
| 225 |
531149001 |
SERVICE KIT KEEPER BELT KEEPER This part replaces 532403319. Price: $5.99 |
| 227 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99 |
| 230 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 231 |
532407287 |
IDLER.V-GROOVE.1.688.OFFSET Price: $19.99 |
| 284 |
532417693 |
NUT.U-CHNL.1/4-20.550DP.350PNL Price: $3.99 |
| 307 |
874180412 |
SCREW.MACHINE.CR.1/4-20 Price: $3.99 |
| 325 |
586431203 |
BRACKET TORQUE STRAP This part replaces 586431202. Price: $4.99 |
| 326 |
586001103 |
BRACKET TORQUE STRAP This part replaces 586001102. Price: $5.99 |
| 336 |
587259602 |
Bolts This part replaces 587259601. Price: $3.99 |
