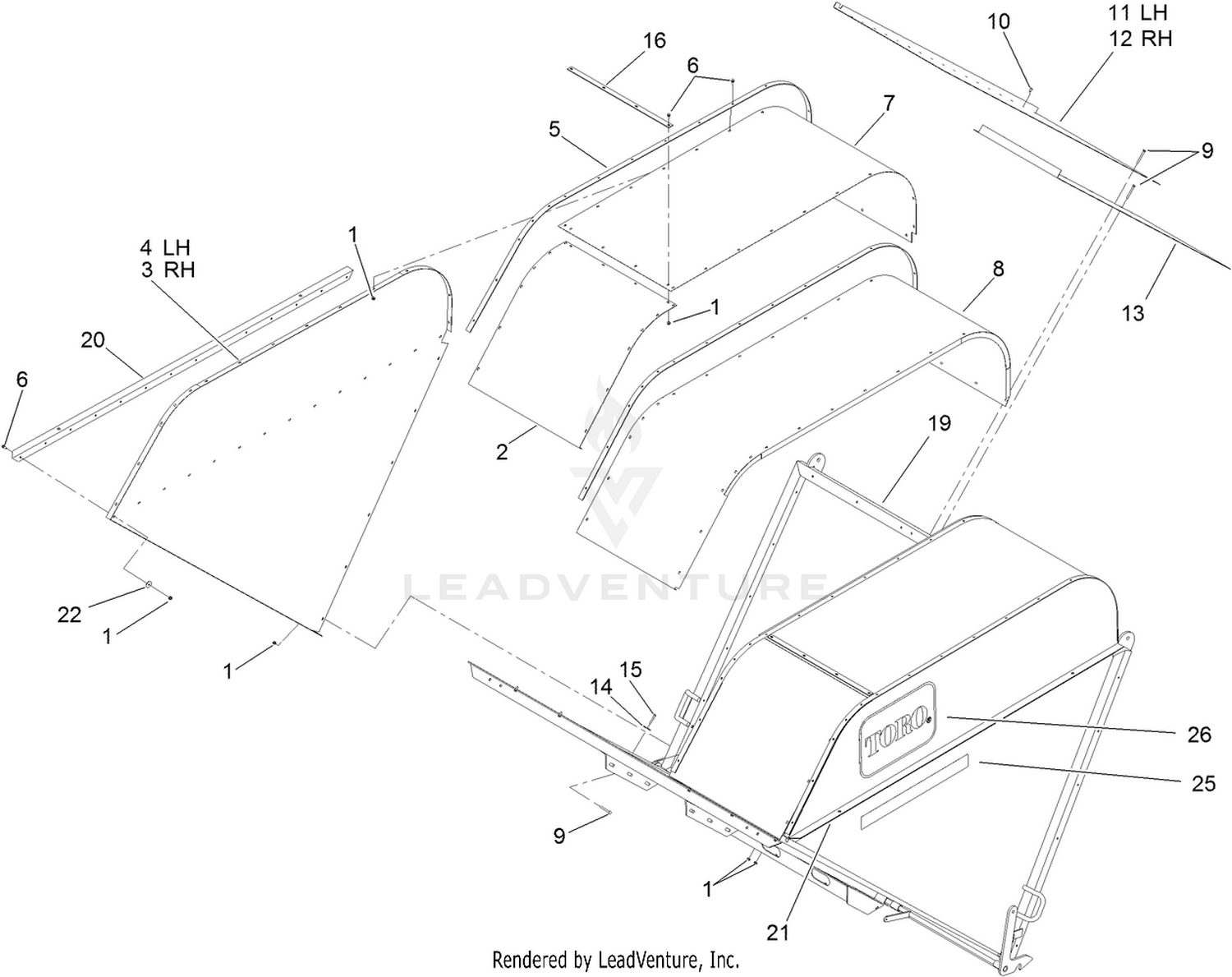

| Ref | Part Number | Description |
|---|
| 1 |
32128-32 |
NUT-HHF Price: $2.69 |
| 2 |
94-9128-01 |
PANEL-FRONT Price: $168.03 |
| 3 |
119-6050 |
PANEL-HOPPER, RH This part replaces 94-9133-01. Price: $1,356.99 |
| 4 |
119-6051 |
PANEL-HOPPER, LH This part replaces 94-9129-01. Price: $1,356.99 |
| 5 |
93-4031-01 |
STRAP-HOPPER, TOP Price: $74.75 |
| 6 |
3234-33 |
SCREW-HHF Price: $0.79 |
| 7 |
94-9141-01 |
SCREEN Price: $546.46 |
| 8 |
119-8016 |
TOP PANEL ASM This part replaces 94-9135-01. Price: $1,587.76 |
| 9 |
3229-8 |
SCREW-CARR Price: $2.99 |
| 10 |
32122-42 |
SCREW Price: $1.69 |
| 11 |
94-9139-01 |
PANEL-BOTTOM, LH Price: $489.00 |
| 12 |
94-9137-01 |
PANEL-BOTTOM, RH Price: $489.00 |
| 13 |
94-9138-01 |
PANEL-BOTTOM, CENTER Price: $244.33 |
| 14 |
13-3710 |
WASHER Price: $3.05 |
| 15 |
3258-165 |
SCREW-PRH Price: $4.07 |
| 16 |
93-4030-01 |
STRAP-HOPPER, FRONT Price: $22.13 |
| 19 |
137-6535 |
FRAME ASM Price: $4,102.23 |
| 20 |
13-7330-01 |
STIFFENER-RH This part replaces 13-7330. Price: $315.32 |
| 21 |
13-7340-01 |
STIFFENER-LH This part replaces 13-7340. Price: $300.82 |
| 22 |
3256-55 |
WASHER-FLAT Price: $3.69 |
| 25 |
93-0184 |
DECAL-HOPPER Price: $41.42 |
| 26 |
67-7920 |
DECAL Price: $96.70 |
