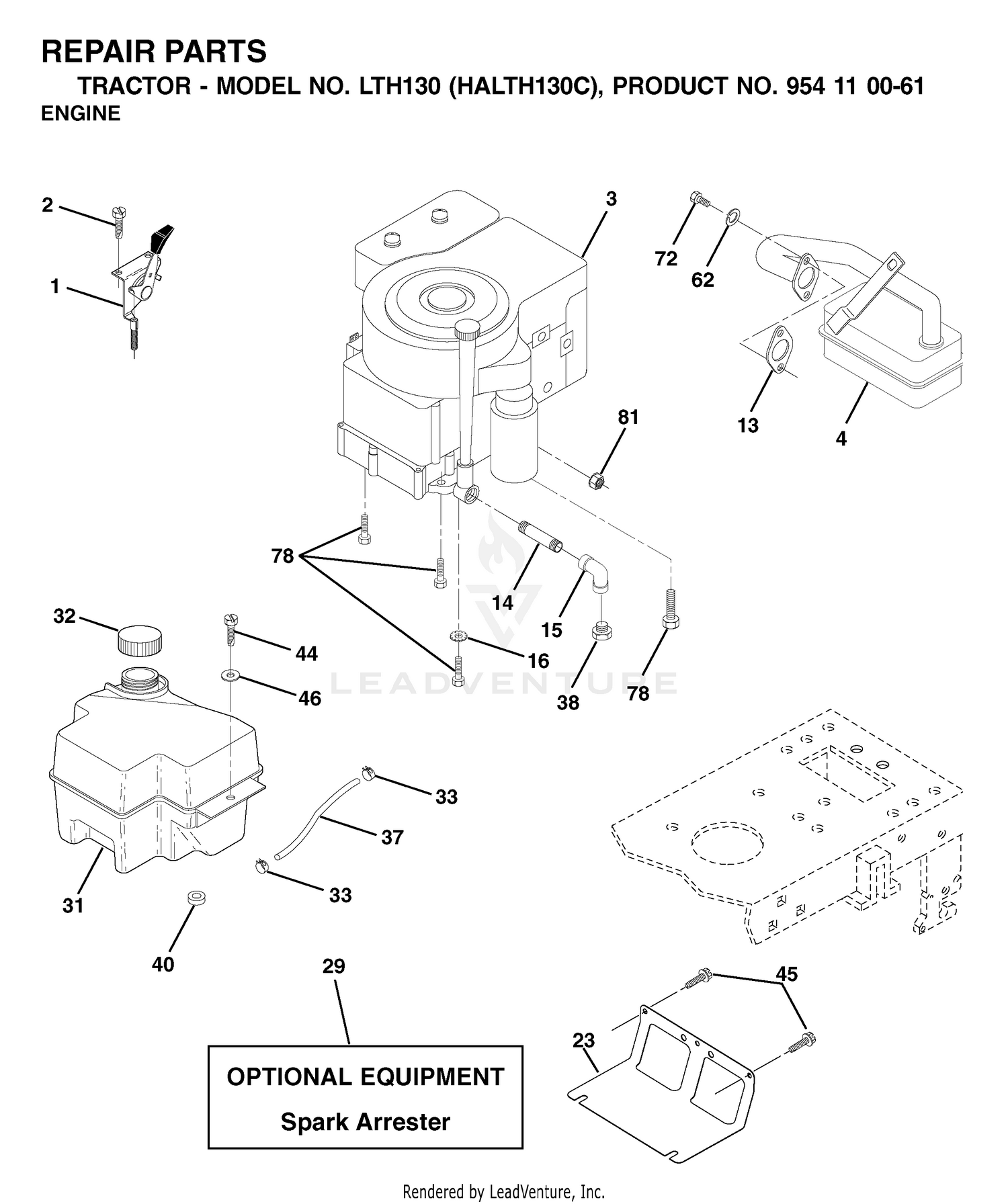

ENGINE

ENGINE

Parts (34)

RefPart NumberDescription
1 115-8985 FRAME-MAIN Price: $3,854.75
1 532170551 CONTROL.THROTTLE/CHOKE.BLACK This part replaces 532140310. Price: $24.99
2 112-6819 TIRE AND WHEEL ASM Price: $616.23
2 596582501 Bolts This part replaces 817720410. Price: $2.99
3 107-1529 TRAILER AXLE ASM Price: $1,008.07
4 324-5 SCREW-HH Price: $0.54
4 532137348 MUFFLER.SINGLE.B&S.10-12HP Price: $89.99
5 63-3340 WASHER-SUPPORT Price: $2.99
6 32128-42 NUT-HF Price: $0.98
7 108-0777 STOP-CYLINDER Price: $104.40
8 63-7880 PIN-LATCH, BRAKE Price: $6.04
9 3290-250 PIN-COTTER Price: $5.59
10 104-7050 TUBE-MANUAL Price: $8.76
11 104-7048 CAP-HOUSING Price: $5.21
12 2412-133 CLAMP-R Price: $3.19
13 323-6 SCREW-HH Price: $0.66
13 532272293 GASKET.ENG.1.313 ID.TIN PLATED This part replaces 532165291. Price: $8.99
14 3256-24 WASHER-FLAT Price: $0.28
14 813280324 Nipple Pipe 3/8 Npt X 3-1/2 Price: $3.12
15 532428287 VALUE.OIL.DRAIN This part replaces 813200300. Price: $14.99
16 596238701 Washers This part replaces 811050600. Price: $3.99
23 531150701 SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99
29 532137180 KIT.SPARK ARRESTOR 794945 B&S Price: $109.99
31 532180645 GAS TANK 2GAL This part replaces 532161911. Price: $59.99
32 581075501 CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532140527. Price: $22.99
33 532123487 HOSE CLAMP Price: $3.99
37 587044820 HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99
44 817670412 SCREW HEXWSHR 1/4-20X3/4 Price: $3.99
45 817000612 SCREW, 3/8-16X3/4 Price: $3.99
46 596135301 Washers This part replaces 819091416. Price: $2.99
62 596238801 WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99
72 596134201 Screws This part replaces 871070512. Price: $2.99
78 817060620 SCREW.3/8-16 Price: $5.99
81 586668901 NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99
