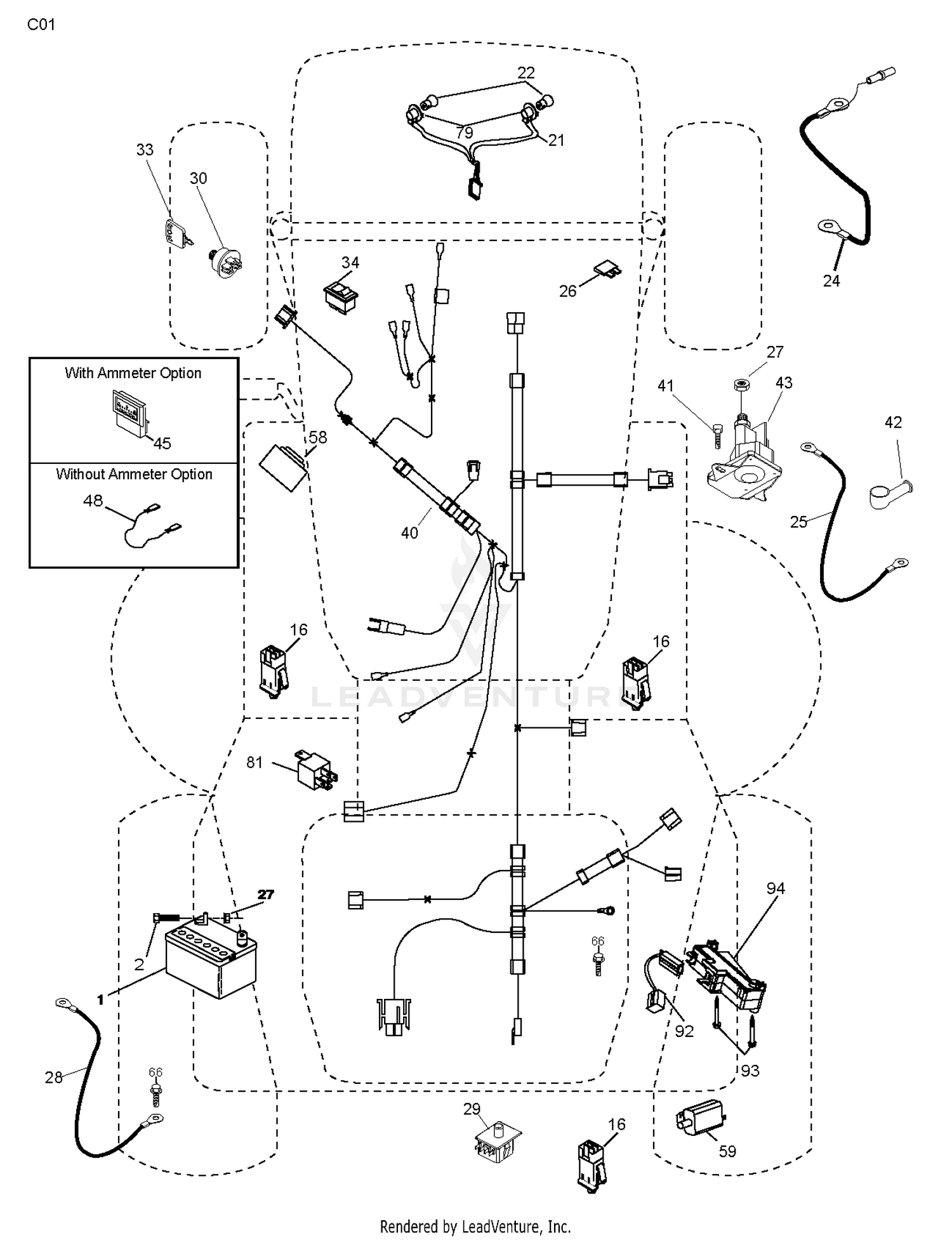

| Ref | Part Number | Description |
|---|
| 1 |
32128-20 |
NUT-HF Price: $0.99 |
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532163465. Price: $149.99 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 2 |
93-7703-03 |
PLATE-CLAMP, GUARD This part replaces 93-7703. Price: $28.49 |
| 3 |
32153-3 |
NUT-HEX, SIDE DEFORM Price: $5.59 |
| 4 |
94-1756 |
CLAMP - MUFFLER Price: $12.55 |
| 5 |
93-4418-03 |
GUARD-MANIFOLD This part replaces 93-4418. Price: $523.00 |
| 7 |
63-8360 |
KEY-IGNITION Price: $5.29 |
| 9 |
323-9 |
SCREW-HH Price: $1.29 |
| 10 |
32128-29 |
NUT-LOCK, FLANGE Price: $1.63 |
| 11 |
47-2830 |
SCREW Price: $0.34 |
| 12 |
93-4419-03 |
GUARD-MUFFLER, REAR This part replaces 93-4419. Price: $298.94 |
| 13 |
322-6 |
SCREW-HH Price: $0.45 |
| 14 |
93-4417 |
U-BOLT Price: $30.13 |
| 15 |
3256-82 |
WASHER-FLAT Price: $0.47 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 16 |
93-4416-03 |
BRACKET-SUPPORT MUFFLER This part replaces 93-4416. Price: $58.91 |
| 17 |
3296-47 |
NUT-LOCK, NI Price: $3.59 |
| 18 |
93-0198-03 |
BRACKET-SUPPORT, MUFFLER This part replaces 93-0198. Price: $70.77 |
| 19 |
46-6810 |
SCREW AND WASHER ASM Price: $3.49 |
| 21 |
532175688 |
HARNESS.W/LIGHT SOCKET Price: $29.99 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 22 |
93-4000-03 |
STRAP-SUPPORT, MUFFLER This part replaces 93-4000. Price: $51.06 |
| 23 |
93-0199-03 |
STRAP-SUPPORT, MUFFLER This part replaces 93-0199. Price: $61.23 |
| 24 |
33114-016 |
SCREW-HH Price: $0.27 |
| 24 |
532004799 |
BATTERY CABLE This part replaces 532124780. Price: $8.99 |
| 25 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 26 |
2112-11 |
CLAMP-MUFFLER Price: $7.37 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 27 |
3254-2 |
WASHER-LOCK, INTERNAL Price: $0.27 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 28 |
532127725 |
CABLE GROUND Price: $4.18 |
| 29 |
532192749 |
SWITCH.SEAT.DP W/RAMPS Price: $17.99 |
| 30 |
2412-103 |
CLAMP Price: $2.51 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $19.99 |
| 31 |
13-2650 |
BELT-V Price: $177.37 |
| 32 |
3-9155 |
KEY-SQUARE Price: $11.44 |
| 33 |
13-3330 |
BUSHING Price: $47.20 |
| 33 |
532411935 |
KEY.CHAIN.BLISTER.PACK.GEN.INT Price: $8.99 |
| 34 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 34 |
532110712 |
SWITCH LT Price: $7.99 |
| 35 |
321-6 |
SCREW-HH Price: $0.25 |
| 36 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 37 |
323-10 |
SCREW-HH Price: $0.89 |
| 38 |
4-1920 |
WASHER Price: $26.67 |
| 39 |
13-3320 |
SHEAVE Price: $893.43 |
| 40 |
532197436 |
Price: Call Us |
| 41 |
596437001 |
Screws This part replaces 871110408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
582042802 |
Solenoids This part replaces 532192507. Price: $22.99 |
| 48 |
532140844 |
ADAPTER.AMMETER Price: $4.99 |
| 58 |
532169420 |
KIT.BUZZER.CRD This part replaces 532169419. Price: $64.99 |
| 59 |
583100701 |
SWITCH.FBI.CRD This part replaces 532180379. Price: $11.99 |
| 66 |
596564001 |
Bolts This part replaces 817490608. Price: $2.99 |
| 79 |
532175242 |
BULB HOLDER ASM. Price: $8.99 |
| 81 |
532109748 |
RELAY.ASSY.T Price: $19.99 |
| 92 |
532196615 |
HARNESS.PIGTAIL.CONSLE Price: $11.99 |
| 93 |
596039601 |
Bolts This part replaces 532192540. Price: $1.99 |
| 94 |
532191834 |
MODULE.REVERSE.ROS Price: $19.99 |
