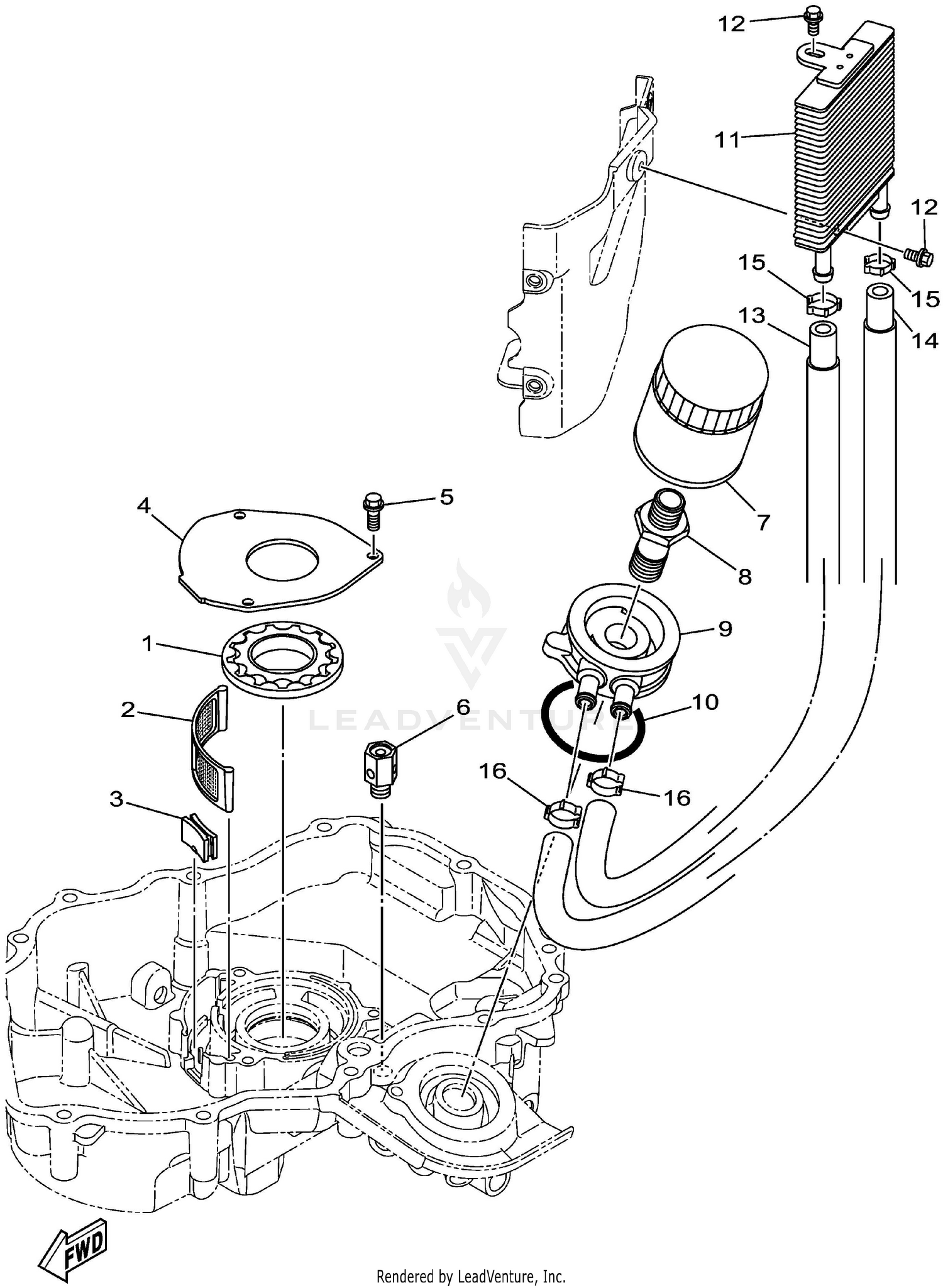

| Ref | Part Number | Description |
|---|
| 1 |
21563166 |
ROTOR ASSY 1 Price: $68.95 |
| 1 |
92-6533 |
SEAT CUSHION KIT This part replaces 67-9550. Price: $290.43 |
| 2 |
21563168 |
STRAINER, OIL Price: $9.45 |
| 2 |
92-6534 |
ORDER COMPLETE SEAT This part replaces 67-9560. Price: Call Us |
| 3 |
21563169 |
COVER, STRAINER Price: $4.95 |
| 4 |
21563167 |
COVER, PUMP Price: $34.45 |
| 5 |
21563058 |
BOLT, FLANGE Price: $3.45 |
| 5 |
3217-6 |
NUT-HEX Price: $1.19 |
| 6 |
21563171 |
RELIEF VALVE ASSY Price: $74.45 |
| 6 |
27-5240 |
BOLT-SHOULDER Price: $17.78 |
| 6 |
506745201 |
BOLT Price: $4.99 |
| 7 |
21563100 |
FILTER, OIL - YAMAHA 824 Price: $28.95 |
| 7 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 8 |
21563215 |
BOLT, UNION Price: $43.95 |
| 8 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 8 |
528074001 |
SPARK PLUG CMR7H-10 Price: $6.99 |
| 9 |
21563312 |
KIT- YAMAHA OIL COOLER HOSE This part replaces 21563216. Price: $209.95 |
| 9 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 10 |
21563176 |
SEAL,1 Price: $16.45 |
| 10 |
27-4570 |
KNOB-SEAT Price: $25.38 |
| 10 |
510918001 |
RING PISTON Price: $5.99 |
| 11 |
21563170 |
OIL COOLER ASSY Price: $187.45 |
| 11 |
36-8020 |
WASHER Price: $1.65 |
| 12 |
21563055 |
BOLT, FLANGE Price: $3.45 |
| 12 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 12 |
516283001 |
RING Price: $2.99 |
| 13 |
21563312 |
KIT- YAMAHA OIL COOLER HOSE This part replaces 21563164. Price: $209.95 |
| 13 |
46-9110-03 |
SPRING-SEAT This part replaces 46-9110. Price: $119.57 |
| 13 |
521522701 |
PIN Price: $4.99 |
| 14 |
21563312 |
KIT- YAMAHA OIL COOLER HOSE This part replaces 21563165. Price: $209.95 |
| 14 |
46-9120-03 |
BAR-SEAT MOUNT This part replaces 46-9120. Price: $32.31 |
| 14 |
513752401 |
WASHER Price: $5.99 |
| 15 |
21563023 |
CLIP Price: $11.45 |
| 15 |
505297301 |
ROLLER BEARING Price: $6.99 |
