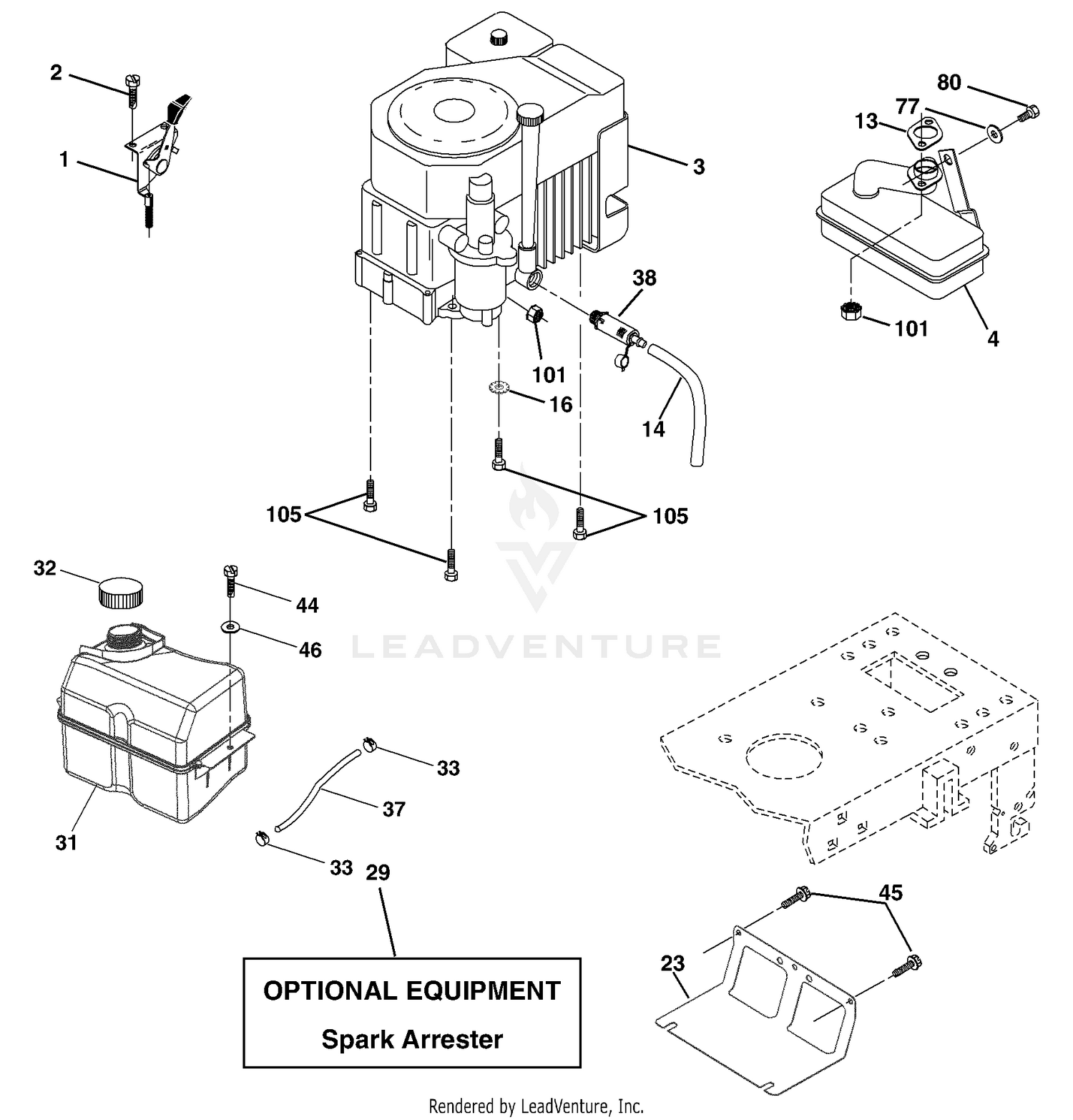

| Ref | Part Number | Description |
|---|
| 1 |
170805 |
Control Throt /Ch Flag Price: Call Us |
| 1 |
3296-60 |
NUT-LOCK, NI Price: $5.08 |
| 2 |
104-3548 |
PULLEY-DRIVEN, HIGH Price: $157.35 |
| 2 |
17720408 |
Screw Hex Thd Cut 1/4-20x1/2 Price: Call Us |
| 3 |
112-8446 |
SEAL-V RING This part replaces 104-3564. Price: $4.26 |
| 4 |
119-4546 |
SPINDLE HOUSING ASM This part replaces 104-3552. Price: $244.67 |
| 4 |
174667 |
Muffler Exhaust Price: Call Us |
| 5 |
138-6416 |
SPACER-SPINDLE, SHAFT This part replaces 92-9800. Price: $18.44 |
| 6 |
104-3554 |
SHAFT-SPINDLE Price: $67.98 |
| 7 |
104-8322 |
WASHER-HARDENED Price: $23.22 |
| 13 |
12-041-03 |
Gasket Price: Call Us |
| 14 |
148456 |
Tube Drain Oil Easy Price: Call Us |
| 16 |
11050600 |
Washer Lock Ext Tooth 3/8 Price: Call Us |
| 23 |
169837 |
Shield Browning/Debris Guard Price: Call Us |
| 29 |
137180 |
Arrestor Spark Price: Call Us |
| 31 |
185534 |
Tank Fuel Price: Call Us |
| 32 |
140527 |
Cap Asm Fuel W/sym Vented Price: Call Us |
| 33 |
123487X |
Clamp Hose Blk Price: Call Us |
| 37 |
137040 |
Line Fuel 20" Price: Call Us |
| 38 |
181654 |
Plug Drain Oil Easy Price: Call Us |
| 44 |
17670412 |
Screw Hexwsh Thdrol 1/4-20x3/4 Price: Call Us |
| 45 |
17000612 |
Screw Hex Wsh Thdrol 3/8-16 Price: Call Us |
| 46 |
19091416 |
Washer 9/32 X 7/8 X 16ga Price: Call Us |
| 77 |
19101216 |
Washer 5/16 x 3/4 x 16 Ga. Price: Call Us |
| 80 |
74760508 |
Bolt Hex Hd 5/16-18 Unc x 1/2 Price: Call Us |
| 101 |
M73030800 |
Nut Flange Price: Call Us |
