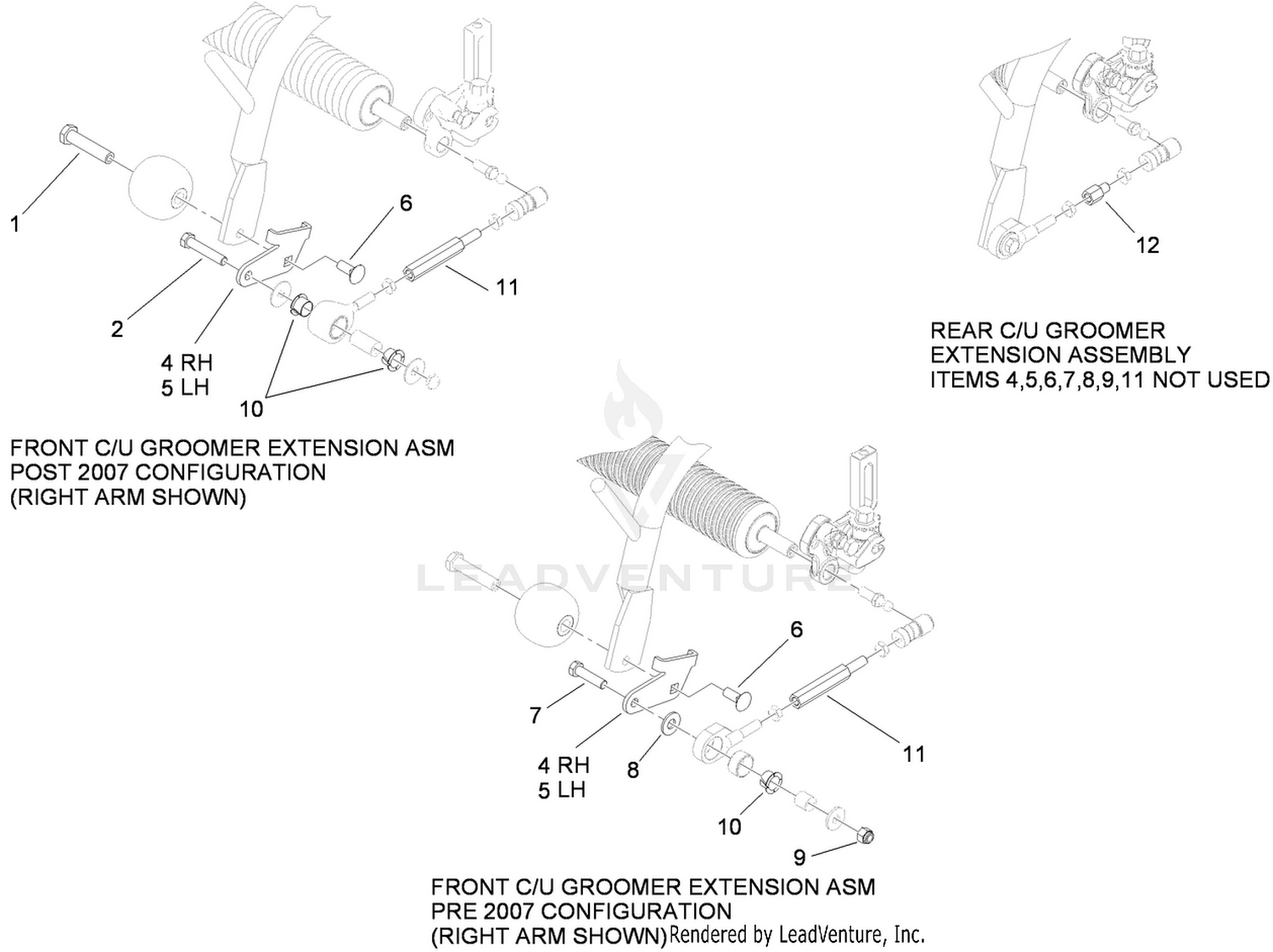

Pull Link Assembly No. 112-9248
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 99-4209 | SHAFT-ROLLER Price: $8.18 |
| 2 | 323-10 | SCREW-HH Price: $0.89 |
| 4 | 99-4148 | BRACKET-LINK, RH Price: $33.25 |
| 5 | 99-4149 | BRACKET-LINK, LH Price: $33.25 |
| 6 | 3231-2 | BOLT-CARR Price: $0.81 |
| 7 | 323-8 | SCREW-HH Price: $1.20 |
| 8 | 3256-4 | WASHER-FLAT Price: $0.28 |
| 9 | 3296-39 | NUT-LOCK, NI Price: $2.29 |
| 10 | 104-7738 | BUSHING-FLANGE Price: $3.15 |
| 11 | 99-4270 | EXTENSION-ARM, PULL Price: $25.84 |
