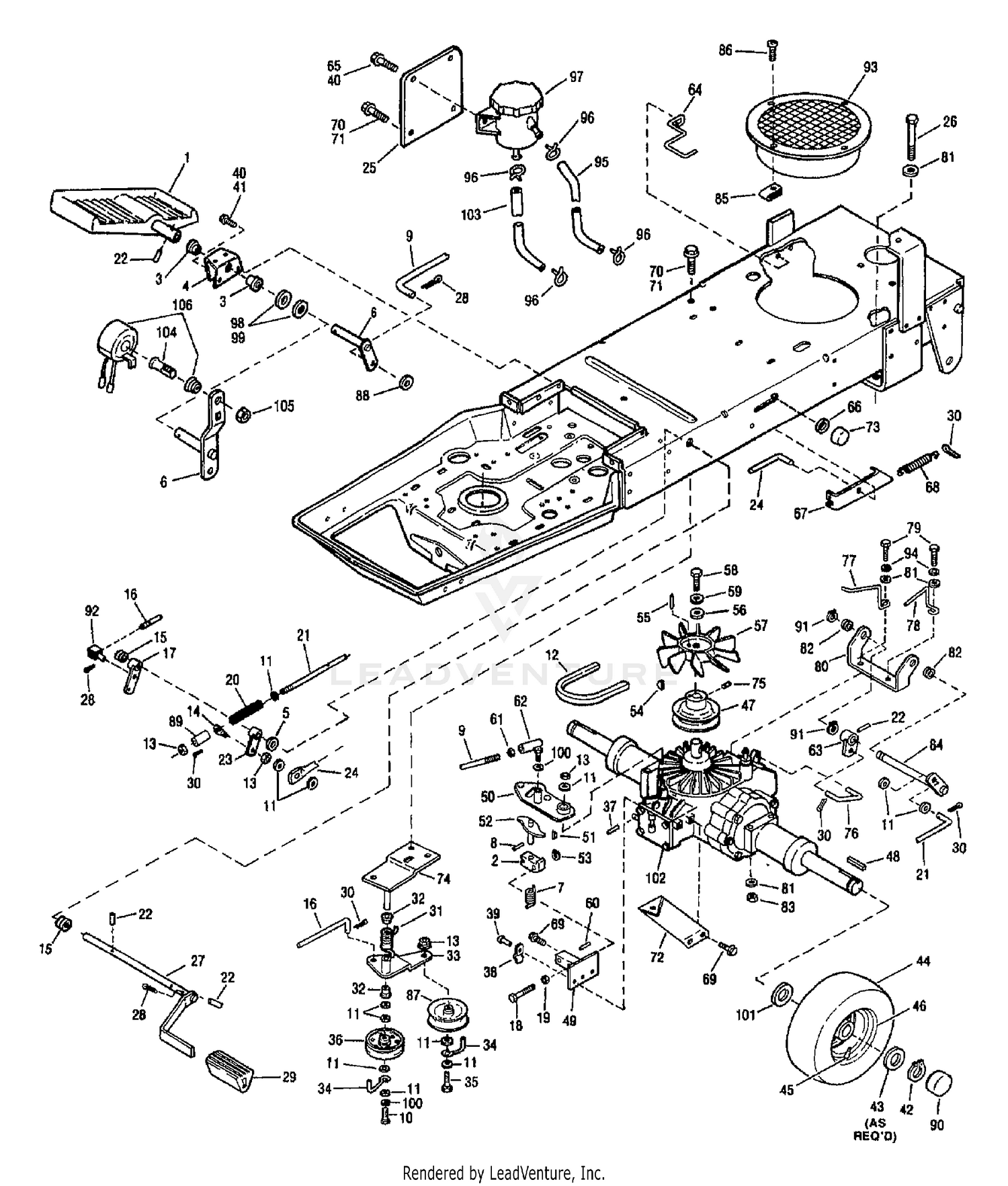

| Ref | Part Number | Description |
|---|
| 1 |
1757290GAR |
ASSM-PEDAL Price: Call Us |
| 2 |
1753188 |
PIVOT BLOC Not Available Price: |
| 3 |
1185802 |
BEARING-FL Not Available Price: |
| 4 |
1756687GAR |
SUPT-HYD PEDAL Price: Call Us |
| 5 |
N/A |
N/A |
| 6 |
1755880 |
ASSM-CONTR Not Available Price: |
| 6 |
1756166 |
ASSEMBLY Not Available Price: |
| 7 |
1753190 |
TORSION SPRING Not Available Price: |
| 8 |
1120209 |
ROLL PIN . Not Available Price: |
| 9 |
1755878 |
ROD-SPEED Not Available Price: |
| 10 |
N/A |
N/A |
| 11 |
N/A |
N/A |
| 12 |
1751597 |
BELT 1/2 x 91.92" Not Available Price: |
| 13 |
712-3000 |
Hex Lock Nut, 3/8-16 This part replaces 1733398. Price: $3.90 |
| 14 |
1749904 |
BOLT-EYE Price: Call Us |
| 15 |
1714233 |
BUSHING-.68X.62X.15 FLNG Not Available Price: |
| 16 |
1746942 |
CLUTCH ROD Not Available Price: |
| 17 |
1751879 |
ARM ASSEMBLY Not Available Price: |
| 18 |
1753187 |
SCREW-ADJU Not Available Price: |
| 19 |
712-3029 |
Nut, 1/2-20, Jam This part replaces 1186247. Price: $6.01 |
| 20 |
1751022 |
SPRING-COMP. Not Available Price: |
| 21 |
1753170 |
BRAKE ROD Not Available Price: |
| 22 |
N/A |
N/A |
| 23 |
1751880 |
ARM ASSEMBLY Not Available Price: |
| 24 |
1751063 |
BRAKE LOCK ROD Not Available Price: |
| 25 |
1755787GAR |
SUPT-TANK Price: Call Us |
| 26 |
N/A |
N/A |
| 27 |
1756049 |
BRAKE PEDAL ASSEMBLY Not Available Price: |
| 28 |
N/A |
N/A |
| 29 |
1728694 |
FOOT REST Not Available Price: |
| 30 |
N/A |
N/A |
| 31 |
1751809 |
TORSION SPRING Not Available Price: |
| 32 |
1764008 |
BELT 1/2 x 166" This part replaces 1755538. Price: $122.88 |
| 33 |
1746941GAR |
ASSM-IDLER ARM Not Available Price: |
| 34 |
1760096 |
BELT GUIDE Not Available This part replaces 1725555. Price: |
| 35 |
N/A |
N/A |
| 36 |
1756151 |
BACKSIDE PULLEY IDLER Not Available Price: |
| 37 |
N/A |
N/A |
| 38 |
1756144 |
LATCH H/T Not Available Price: |
| 39 |
728-04021 |
Rivet This part replaces 1185879. Price: $3.42 |
| 40 |
1186309 |
SCREW-FLANGE Not Available Price: |
| 41 |
1186389 |
NUT-HF/LK 1/4-20 ZP Price: $3.05 |
| 42 |
716-0102 |
Snap Ring This part replaces 1118554. Price: $4.40 |
| 43 |
1747872 |
WASHER-1.8 Not Available Price: |
| 44 |
1756867 |
TIRE Not Available Price: |
| 45 |
934-0255 |
TUBELESS VALVE This part replaces 1718086. Price: $3.83 |
| 46 |
1757421GAW |
WHEEL DISC Price: Call Us |
| 46 |
1757984 |
WHEEL-REAR Not Available Price: |
| 47 |
1751586 |
HYDRO SHEA Not Available Price: |
| 48 |
N/A |
N/A |
| 49 |
1753186 |
ADJUSTOR B Not Available Price: |
| 50 |
1753199 |
SPEED CONT Not Available Price: |
| 51 |
N/A |
N/A |
| 52 |
1753193 |
PIVOT SHAF Not Available Price: |
| 53 |
1118799 |
RING-RETAI Not Available Price: |
| 54 |
N/A |
N/A |
| 55 |
N/A |
N/A |
| 56 |
1756134 |
WASHER-1.0 Not Available Price: |
| 57 |
1753203 |
FAN-HYDRO TRANSMISSION Not Available Price: |
| 58 |
N/A |
N/A |
| 59 |
N/A |
N/A |
| 60 |
1753189 |
DOWEL PIN Not Available Price: |
| 61 |
N/A |
N/A |
| 62 |
1756175 |
JOINT-BALL Price: Call Us |
| 63 |
1754953 |
BRAKE ARM Not Available Price: |
| 64 |
1756627 |
GUIDE Not Available Price: |
| 65 |
712-0291 |
Hex Lock Nut, 1/4-20 This part replaces 1734398. Price: $3.93 |
| 66 |
736-0133 |
Washer, Flat, .411 x 1.25 x .100 This part replaces 1893445. Price: $4.67 |
| 67 |
1755584GAR |
BRACKET-INTERLOCK Price: Call Us |
| 67 |
1756181GAR |
BRKT {3016HR,3016HRS} Price: Call Us |
| 68 |
1729482 |
SPRING Not Available Price: |
| 69 |
1186327 |
SCREW-FLAN Not Available Price: |
| 70 |
710-04048 |
SCREW 5/16-18 x 1 GR5 This part replaces 1186330. Price: $4.19 |
| 71 |
712-04054 |
NUT-HFLK 5/16-18 ZP This part replaces 1186391. Price: $3.95 |
| 72 |
1754946GAR |
BRACE-TRANSAXLE Price: Call Us |
| 73 |
1747186 |
PUSH CAP O Not Available Price: |
| 74 |
1751808GAR |
ASSM-LEVER SUPP Price: Call Us |
| 75 |
1747166 |
SCR-SET 1/4-28X.38 HXSKT Price: $3.53 |
| 76 |
1754951 |
BRAKE-LINK Not Available Price: |
| 77 |
1755929 |
BELT GUIDE Not Available Price: |
| 78 |
1755930 |
BELT GUIDE Not Available Price: |
| 79 |
N/A |
N/A |
| 80 |
1754947 |
SHAFT SUPP Not Available Price: |
| 81 |
N/A |
N/A |
| 82 |
1755928 |
BEARING-FL Not Available Price: |
| 83 |
1732499 |
NUT-TOP/LK 5/16-18 ZP Price: $3.49 |
| 84 |
1755939 |
JACKSHAFT Not Available Price: |
| 85 |
1739919 |
SPEED NUT Not Available Price: |
| 86 |
N/A |
N/A |
| 87 |
756-0487 |
Idler Pulley, 5/8 x 4.0 This part replaces 1726660. Price: $45.43 |
| 88 |
N/A |
N/A |
| 89 |
1713783 |
SPACER Not Available Price: |
| 90 |
1747873 |
CAP-WHEEL Not Available Price: |
| 91 |
716-0106 |
E-ring This part replaces 1177567. Price: $3.52 |
| 92 |
1748491 |
PIVOT Not Available Price: |
| 93 |
1754948 |
SHROUD-FAN Price: Call Us |
| 94 |
N/A |
N/A |
| 95 |
1755822 |
HOSE-FUEL 18" Price: Call Us |
| 96 |
1756626 |
HOSE CLAMP Not Available Price: |
| 97 |
1755088 |
ASSM-OIL RESERVOIR Price: Call Us |
| 98 |
736-0302 |
FLAT WASHER .632 ID x .935 ODX.048 Not Available This part replaces 1705093. Price: |
| 99 |
736-0156 |
Flat Washer, 5/8 This part replaces 1705092. Price: $3.95 |
| 100 |
N/A |
N/A |
| 101 |
1701449 |
SHIM-1.25X1.01X.06 Price: Call Us |
| 102 |
1756053 |
KIT-CONVERSION W/HYDRO Not Available Price: |
| 102 |
N/A |
N/A |
| 103 |
1755823 |
HOSE Not Available Price: |
| 104 |
1750736 |
SCREW-SPECIAL Not Available Price: |
| 105 |
1186396 |
NUT-WHIZ L Not Available Price: |
